Aera Downlights A new era in downlights, cylinders, and multi-apertures.

Explore Product

Aera Deep Beauty & Performance

Explore Product

Aera Shalo The Complete Flexibility of Aera. Engineered for Tight Spaces.

Explore Product

Aera Cylinders A new era in downlights, cylinders, and multi-apertures.

Explore Product

Aera Echocore A new era in sound dampening.

Explore Product
Aera Collection With its sophisticated design, minimalist housing and high performance capabilities, the Aera collection adds a touch of elegance to any space. Composed of simple shapes, tasteful colors, and innovative technologies, Aera luminaires showcase the aesthetic appeal and flexibility of their essential forms. Timeless and powerful—a lighting solution designed to enrich every environment it's found in.
MOUNTINGS

Recessed, Pendant,
and Wall

SHAPES

Round & Square

DISTRIBUTION

Adjustable, fixed,
wall wash, and
asymmetric

Aera Downlights

Aera’s sophisticated design matches its impressive performance while revealing the beauty of architectural form

Downlights: Aera 4", round, trimless
Cylinders: Aera 4", surface

Explore Product

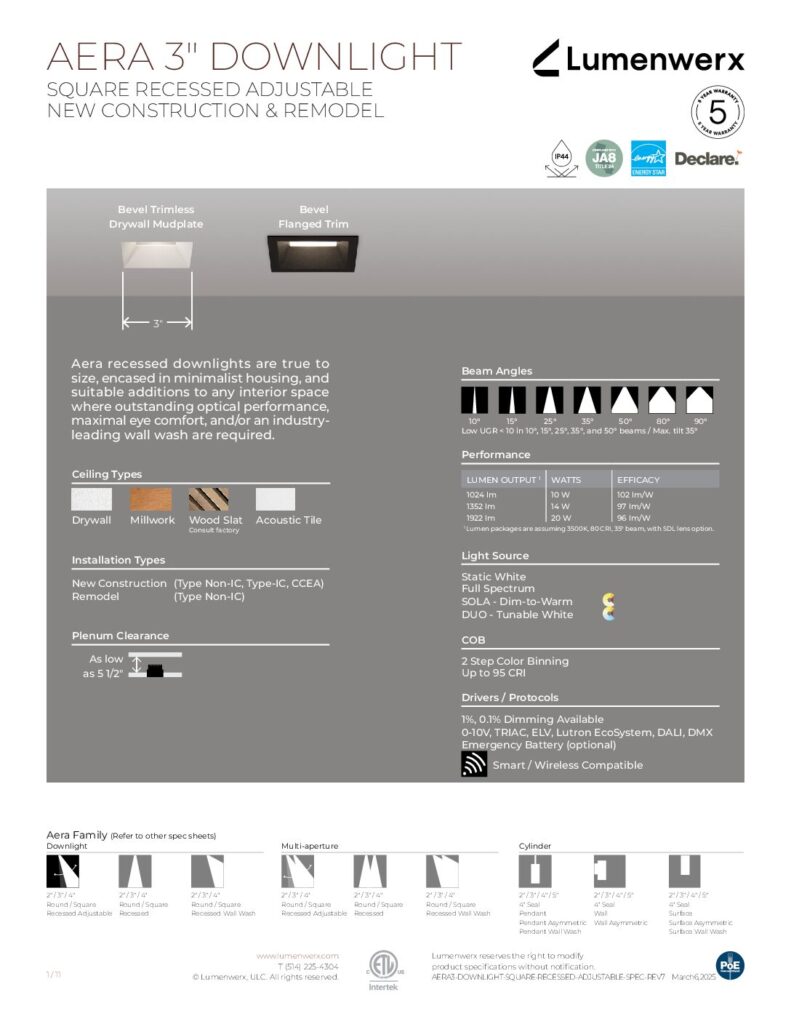

A square aperture creates clean and crisp lines of light, adding a contemporary touch.

Aera 3" Square Flanged Trim

LOW UGR

< 10 in all beams

TRUE TO SIZE DIAMETERS

2″, 3″, 4”

113 lm/W

Aera 2, 3, 4

Downlights

Aera downlights are optically equipped with proprietary XPoint™ Refraction Technology. Fixtures deliver high performance, low glare, and zero spill light on their bevels or trims. With advanced design detail and construction, these can be made-to-measure with a host of options.

Explore Product

Multi-Apertures

Address simultaneous applications through a single luminaire. Aera multi-aperture fixtures offer combinations of 2, 3, or 4 modules within the same housing. Each can be specified individually, using combinations of distributions, beam angles, lenses, and more.

Get the Specs

Installation Options

Downlight

Aera downlights are available for New Construction and Remodel to cover typical installation requirements. For confined areas like the plenum space, Aera is the ideal solution with its low profile available in depths as low as 2 5/8″. The family offers four mounting bar options: standard bar hangers, commercial bar hangers, flush mount bars, and hat channel bars, all adjustable for a variety of applications.

  1. Light Engine

  2. Mounting Mechanism

  3. Light Source

  4. Optical Chambre

  5. XPoint Refraction

  6. Optional Accessory (Honey Comb shown)

  7. Lens

  8. Accessory

Get the Specs

Aera Shalo

The complete flexibility of Aera. Engineered for tight spaces.

Aera Shalo extends the versatility of the Aera family to shallow ceiling applications, delivering uncompromised performance in a remarkably slim form factor.

Explore Product

No More Plenum Limits

At only 2'' in height, Aera Shalo preserves
the performance and flexibility that define
Aera—even where space is limited.

APERTURES

2″, 3″, 4″

OPTICAL FLEXIBILITY

Field-interchangeable
Distributions, Optics and Trims

SHAPES

Round,
Square

Aera Shalo

Downlights

Aera Shalo combines compact engineering with full capability, offering a comprehensive range of aperture sizes, shapes, baffles, distributions, and other features designed to meet diverse architectural needs while delivering optimal visual comfort.

Explore Product

Aera Shalo Adjustable

Downlights

Aera Shalo Adjustable combines engineering precision with on-site flexibility. Its infinite rotation mechanism enables fast, tool-free aiming. The optical system maintains beam integrity at every angle—delivering controlled, targeted illumination exactly where it’s needed.

Explore Product

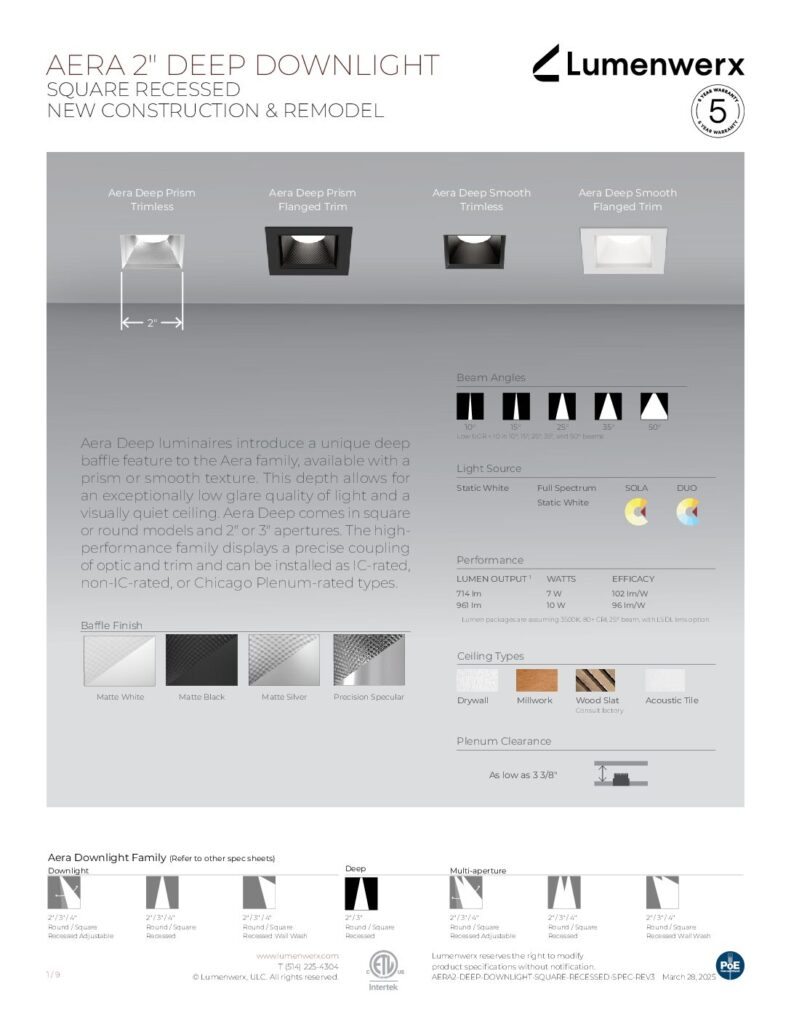

Aera Deep

Aera Deep downlights introduce a unique deep baffle feature to the Aera family.

Explore Product
TRIM OPTIONS

Flanged & Trimless

DEEP BAFFLE OPTIONS

Prism & Smooth

113 lm/W

Aera 2, 3 Deep

Downlights

Aera Deep downlights introduce a unique deep baffle feature to the Aera family, available with a prism or smooth texture. This added depth allows for an exceptionally low glare quality of light (UGR as low as 1) and a visually quiet ceiling.

Explore Product

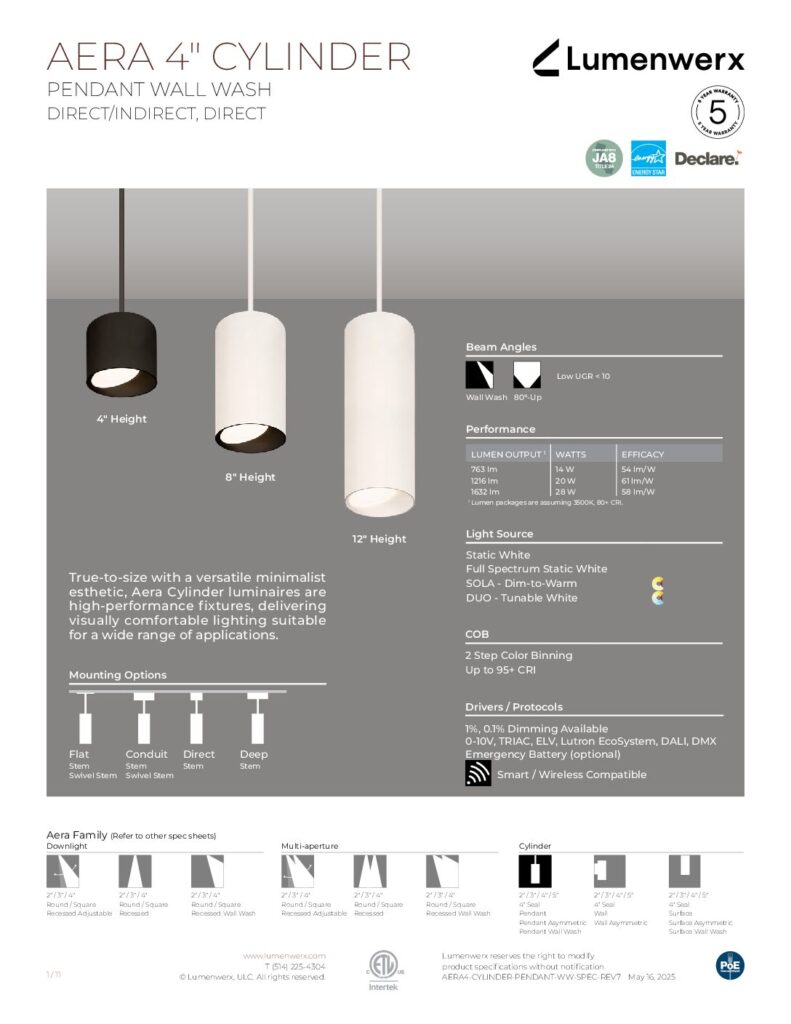

Aera Cylinders

Light-layering with Aera, Aera Flex, and Aera Inflex luminaires.

Left: Aera Flex 3" Cylinder Pendant.
Center: Aera 3" downlight.
Right: Aera Inflex 3" Cylinder Surface.

Explore Product
MOUNTING

Surface, pendant,
and wall

TRUE TO SIZE DIAMETERS

2″, 3″,
4″ & 5″

DISTRIBUTION

Fixed, Wall wash,
Asymmetric

Aera 2, 3, 4

Cylinders

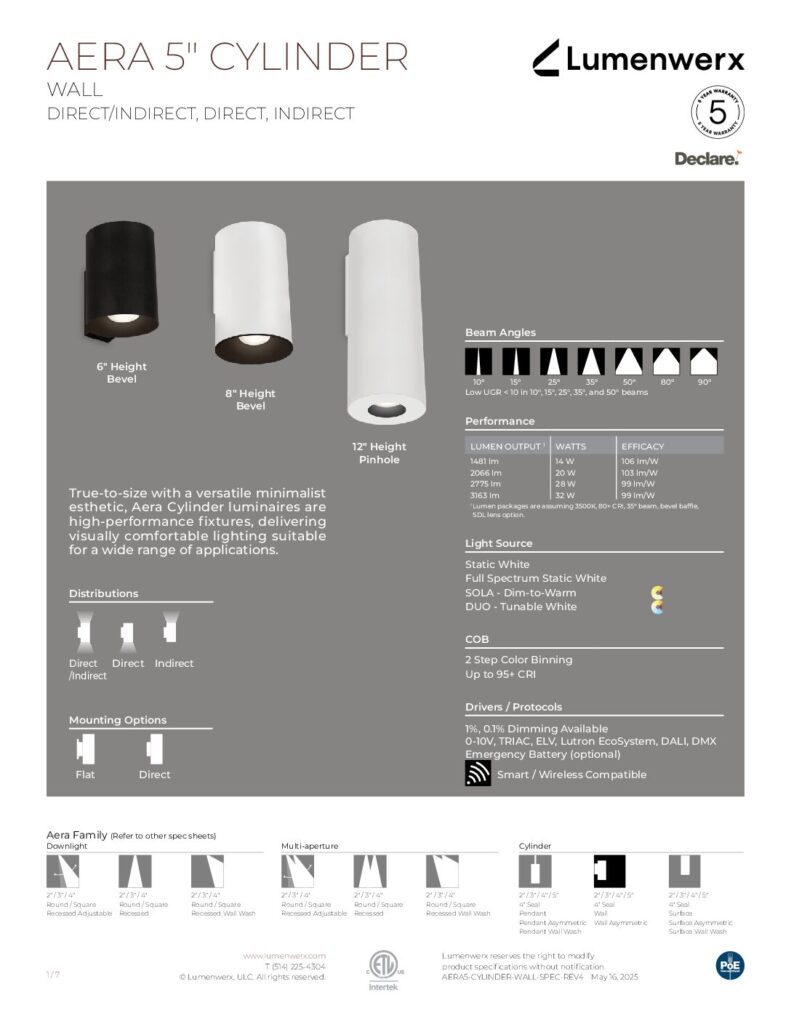

Aera 2, 3, 4, and 5 cylinders deliver high-quality light with efficacy up to 113 lm/W. Our patented XPoint™ Refraction optic technology allows for a quiet ceiling effect, and is capable delivering up to 5600 lm. Perfect for higher ceiling applications, Aera 5 pendant and wall models can also be equipped with indirect lighting options.

Explore Product

Aera

Aera Cylinders excel in hospitality applications, where visual comfort is highly desirable

Aera 2" Cylinder Wall
Aera 2" Downlight Trimless
Aera 3" Cylinder Pendant

Mounting Options

Cylinders

Aera cylinders come in pendant, surface, and wall mounted models that can be mounted in four different ways: flat, conduit, direct feed, or deep flat—with a recessed driver box. They can be mounted with a stem (standard), swivel, power cord, or fabric covered power cord. Surface-installed models can be mounted directly with a flat junction box, conduit, direct feed, or deep flat with a remote driver. Wall mounted cylinders are offered with a standard 4” wall bracket.

Get the Specs

Aera Seal

Aera 4" Seal Cylinders illuminate major outdoor areas of activity and circulation.

Explore Product
IP-RATING

IP66

DIAMETER

4″

DISTRIBUTIONS

Direct/indirect
option

Aera 4 Seal

Cylinders

With an IP-66 rating, the Aera Seal Cylinder takes Aera’s clean esthetic and performance assets to wet locations and outdoor environments. The Aera 4″ Seal Cylinder delivers lighting that’s visually comfortable, with minimal glare.

Explore Product

Aera Echocore Acoustix series

A constellation of limitless possibilities of arrangements.

Featuring Aera 4” round recessed EchoCoreTM and Aera 4” downlights and multi-aperture.

Explore Product
APERTURE

4″

SHAPES

Round,
Square

MOUNTINGS

Recessed

A new era in sound dampening

Aera 4" EchoCore™

In addition to offering the same outstanding optical performance and maximal eye comfort provided by their non-acoustic Aera counterparts, Aera EchoCoreTM fixtures reduce echo and reverberation in their immediate environment.

Explore Product
