Cluster Acoustix

Downlight

A new spin on a classic cylinder. Cluster Acoustix offers up some stylish lighting. Cluster Acoustix is the small, precise, and soft warm lighting for any space. Based on a fundamental 1.2″ square cell, Clusters provides a fresh, crisp look at architectural lighting. Cluster Acoustix comes in both planar or 4 cell configuration with many color choices on the optic louvers.

Product Downloads

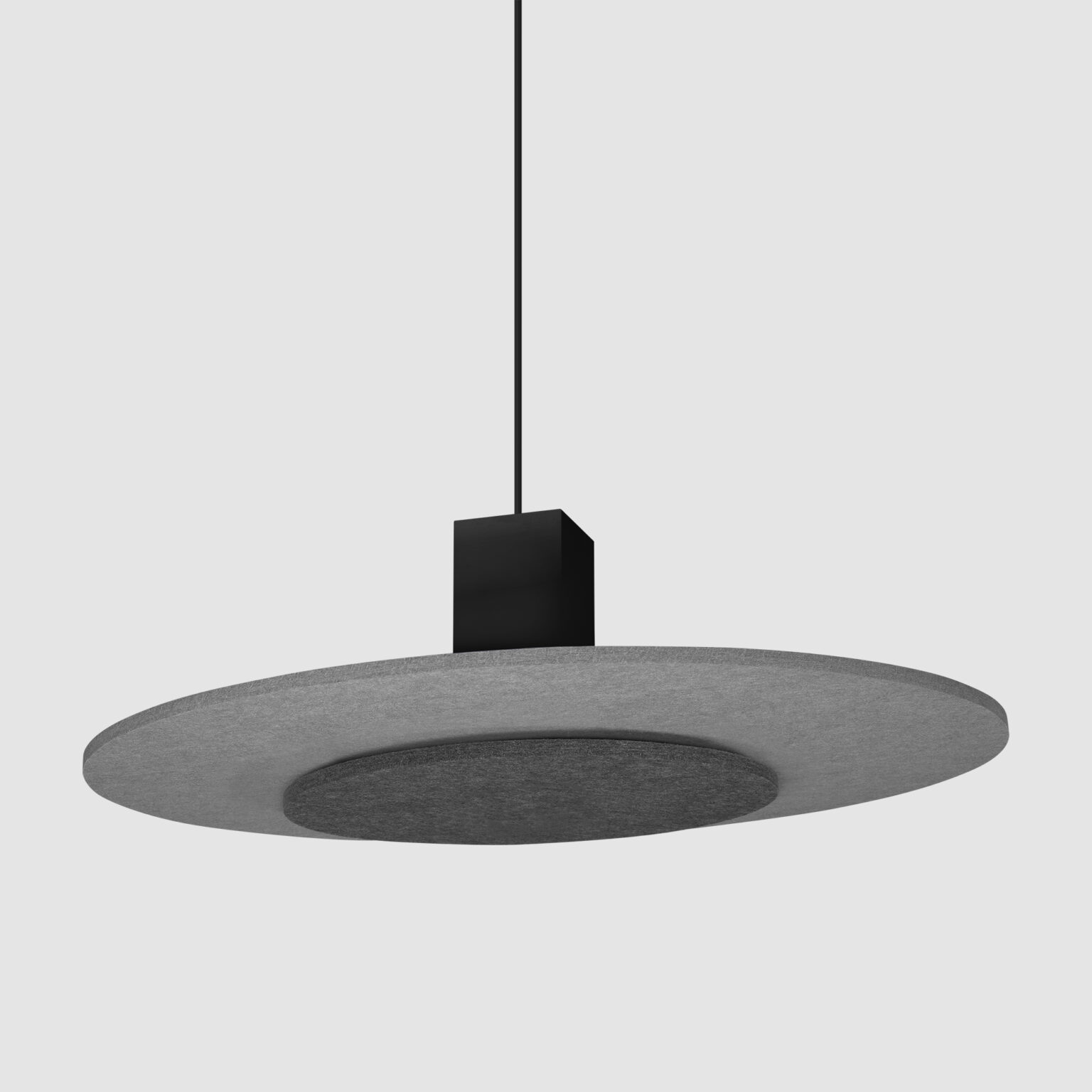

Specifications - Blank
Product TypeAcoustic OpticsBPL, MPL, REF, SOF, SPL, WPL MountingPendant Distribution TypeDirect Cluster Type: Cluster Linear, Cluster Planar
Light Source
Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)
Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)
Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics
BPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

REF

The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)

SOF

The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

WPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Optics - Soft-Edge Downlight

SOFT-EDGED FEATHERED BEAM (SOF) blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using Total Internal Reflection (TIR) to shape the light. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º Narrow Flood (NFL), 35º Flood (FLD), or 55º Wide Flood (WFL).

Optics - Sharp-Edge Downlight

SHARP-EDGED CUT-OFF BEAM (REF) creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º Spot (SPT), 30º Flood (FLD), or 45º Wide Flood (WFL).

Optics - Parabolic

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).



Louver Shape & Finish

Clusters with soft-edge and sharp-edge beams are available in three baffles styles: square, conical, and hyperbolic, each in five finishes. The conical aperture fits into a separate plate which fills out the linear or planar form and can match or contrast with the aperture finish.

Felt Color Options

Cluster Acoustix

Downlight

A new spin on a classic cylinder. Cluster Acoustix offers up some stylish lighting. Cluster Acoustix is the small, precise, and soft warm lighting for any space. Based on a fundamental 1.2″ square cell, Clusters provides a fresh, crisp look at architectural lighting. Cluster Acoustix comes in both planar or 4 cell configuration with many color choices on the optic louvers.

Product Downloads
Specifications - Linear
Product TypesLinear, Acoustic OpticsBPL, MPL, REF, SOF, SPL, WPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect Cluster Type: Cluster Linear, Cluster Planar
Light Source
Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)
Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)
Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics
BPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

REF

The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)

SOF

The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

WPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Optics - Soft-Edge Downlight

SOFT-EDGED FEATHERED BEAM (SOF) blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using Total Internal Reflection (TIR) to shape the light. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º Narrow Flood (NFL), 35º Flood (FLD), or 55º Wide Flood (WFL).

Optics - Sharp-Edge Downlight

SHARP-EDGED CUT-OFF BEAM (REF) creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º Spot (SPT), 30º Flood (FLD), or 45º Wide Flood (WFL).

Optics - Parabolic

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).



Louver Shape & Finish

Clusters with soft-edge and sharp-edge beams are available in three baffles styles: square, conical, and hyperbolic, each in five finishes. The conical aperture fits into a separate plate which fills out the linear or planar form and can match or contrast with the aperture finish.

Felt Color Options

Cluster Acoustix

Downlight

A new spin on a classic cylinder. Cluster Acoustix offers up some stylish lighting. Cluster Acoustix is the small, precise, and soft warm lighting for any space. Based on a fundamental 1.2″ square cell, Clusters provides a fresh, crisp look at architectural lighting. Cluster Acoustix comes in both planar or 4 cell configuration with many color choices on the optic louvers.

Product Downloads

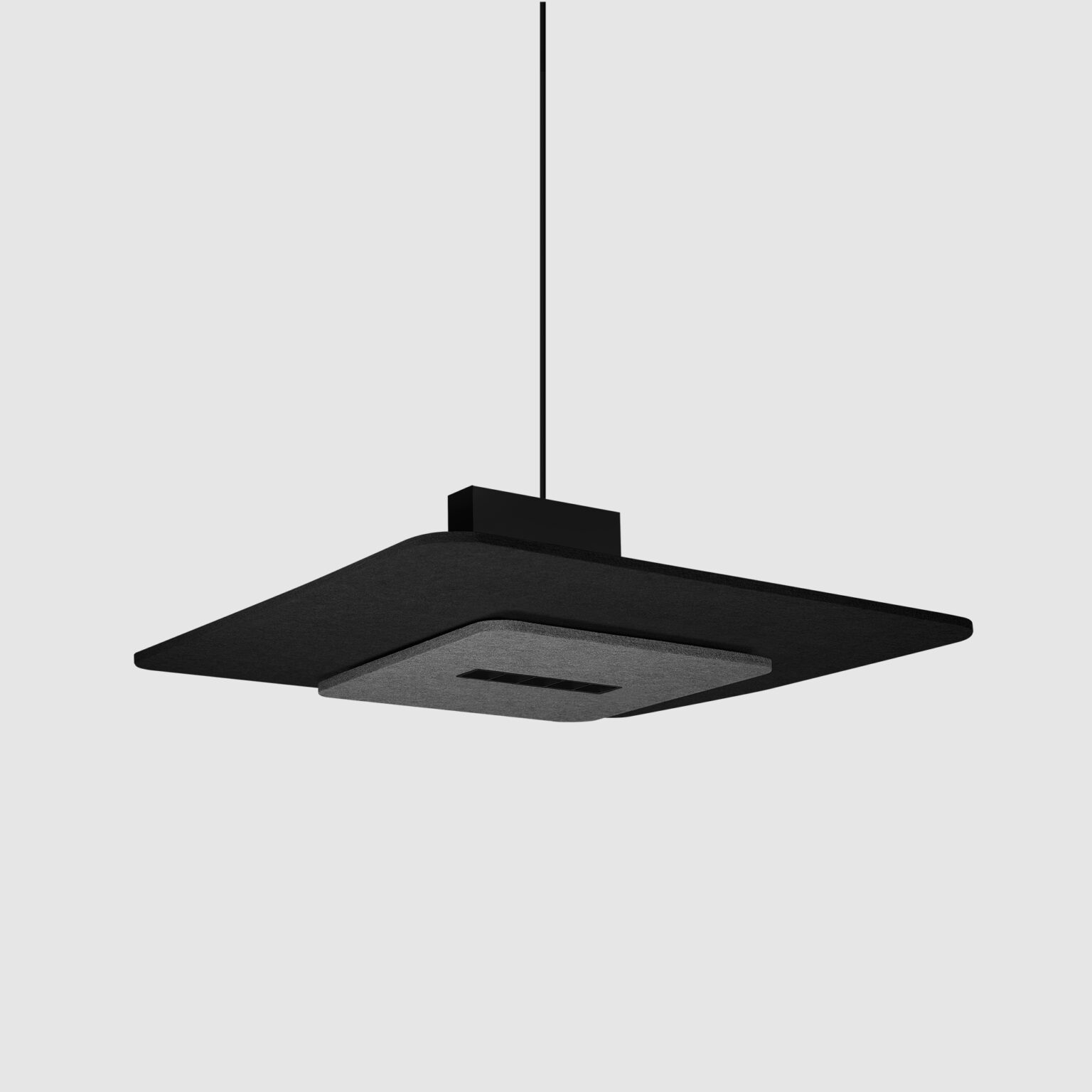

Specifications - Parabolic Linear
Product TypesLinear, Acoustic OpticsBPL, MPL, REF, SOF, SPL, WPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect Cluster Type: Cluster Linear, Cluster Planar
Light Source
Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)
Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)
Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics
BPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

REF

The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)

SOF

The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

WPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Optics - Soft-Edge Downlight

SOFT-EDGED FEATHERED BEAM (SOF) blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using Total Internal Reflection (TIR) to shape the light. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º Narrow Flood (NFL), 35º Flood (FLD), or 55º Wide Flood (WFL).

Optics - Sharp-Edge Downlight

SHARP-EDGED CUT-OFF BEAM (REF) creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º Spot (SPT), 30º Flood (FLD), or 45º Wide Flood (WFL).

Optics - Parabolic

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).



Louver Shape & Finish

Clusters with soft-edge and sharp-edge beams are available in three baffles styles: square, conical, and hyperbolic, each in five finishes. The conical aperture fits into a separate plate which fills out the linear or planar form and can match or contrast with the aperture finish.

Felt Color Options

Cluster Acoustix

Downlight

A new spin on a classic cylinder. Cluster Acoustix offers up some stylish lighting. Cluster Acoustix is the small, precise, and soft warm lighting for any space. Based on a fundamental 1.2″ square cell, Clusters provides a fresh, crisp look at architectural lighting. Cluster Acoustix comes in both planar or 4 cell configuration with many color choices on the optic louvers.

Product Downloads

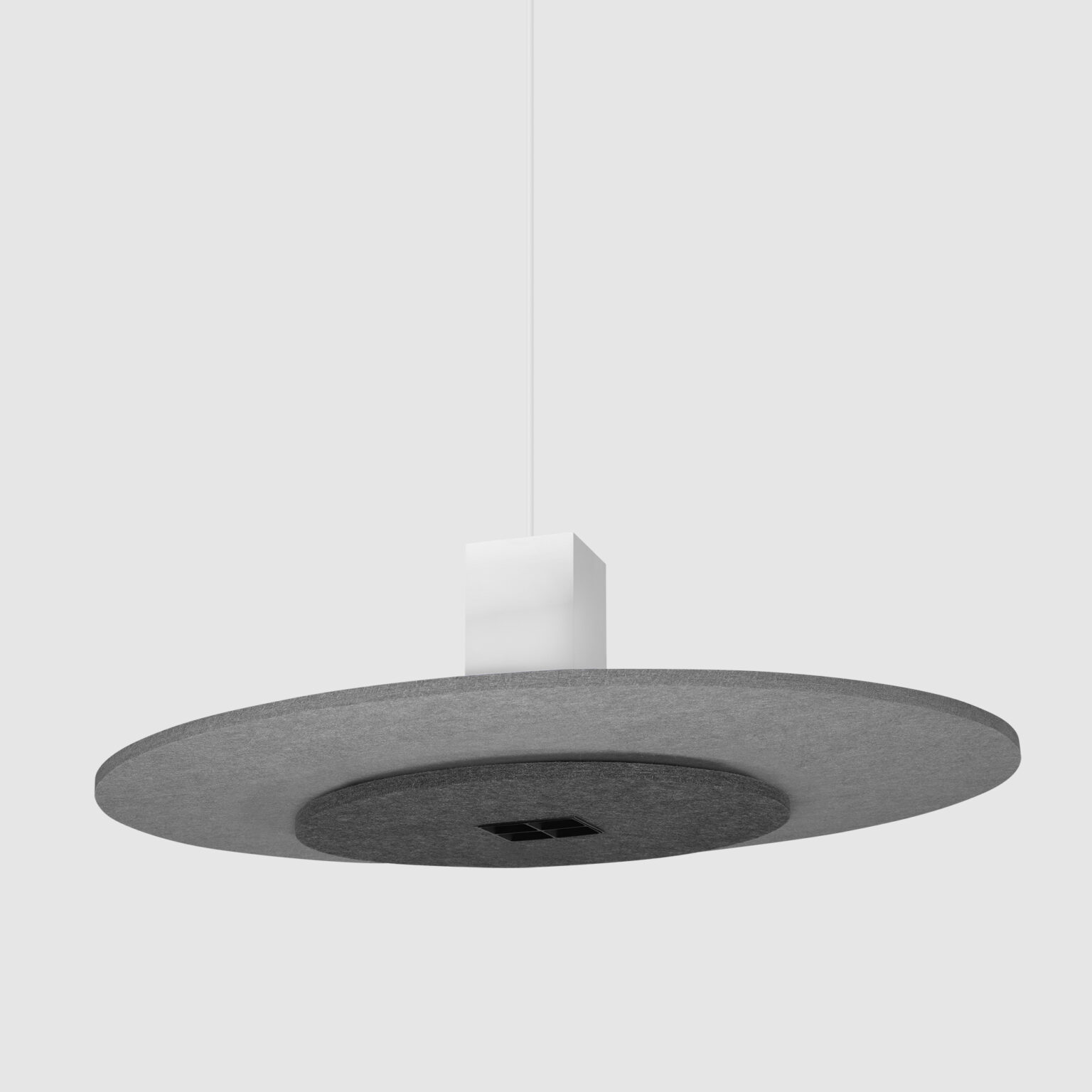

Specifications - Parabolic Planar
Product TypeAcoustic OpticsBPL, MPL, REF, SOF, SPL, WPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect Cluster Type: Cluster Linear, Cluster Planar
Light Source
Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)
Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)
Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics
BPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

REF

The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)

SOF

The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

WPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Optics - Soft-Edge Downlight

SOFT-EDGED FEATHERED BEAM (SOF) blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using Total Internal Reflection (TIR) to shape the light. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º Narrow Flood (NFL), 35º Flood (FLD), or 55º Wide Flood (WFL).

Optics - Sharp-Edge Downlight

SHARP-EDGED CUT-OFF BEAM (REF) creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º Spot (SPT), 30º Flood (FLD), or 45º Wide Flood (WFL).

Optics - Parabolic

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).



Louver Shape & Finish

Clusters with soft-edge and sharp-edge beams are available in three baffles styles: square, conical, and hyperbolic, each in five finishes. The conical aperture fits into a separate plate which fills out the linear or planar form and can match or contrast with the aperture finish.

Felt Color Options

Cluster Acoustix

Downlight

A new spin on a classic cylinder. Cluster Acoustix offers up some stylish lighting. Cluster Acoustix is the small, precise, and soft warm lighting for any space. Based on a fundamental 1.2″ square cell, Clusters provides a fresh, crisp look at architectural lighting. Cluster Acoustix comes in both planar or 4 cell configuration with many color choices on the optic louvers.

Product Downloads

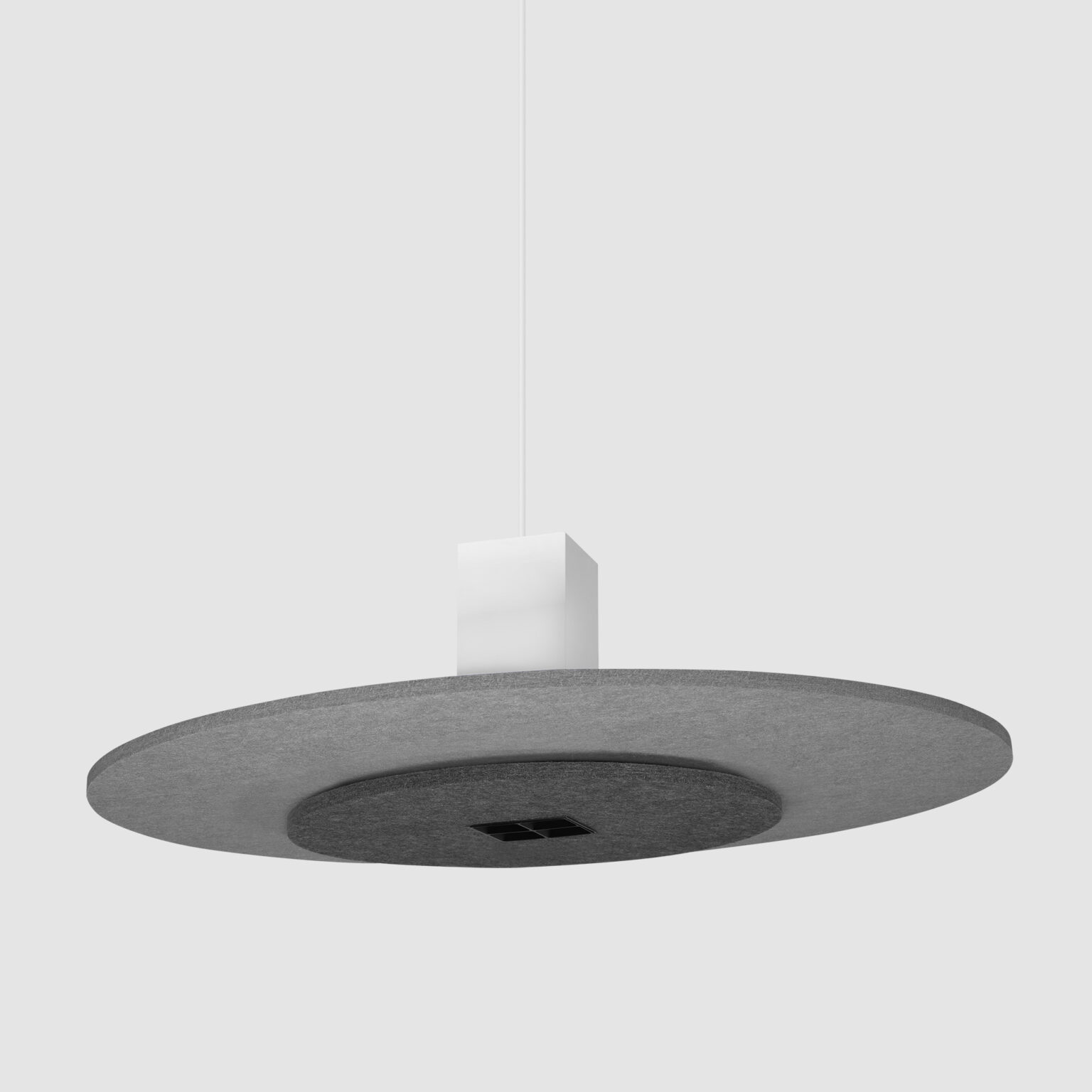

Specifications - Planar
Product TypeAcoustic OpticsBPL, MPL, REF, SOF, SPL, WPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect Cluster Type: Cluster Linear, Cluster Planar
Light Source
Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)
Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)
Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics
BPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

REF

The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)

SOF

The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

WPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Optics - Soft-Edge Downlight

SOFT-EDGED FEATHERED BEAM (SOF) blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using Total Internal Reflection (TIR) to shape the light. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º Narrow Flood (NFL), 35º Flood (FLD), or 55º Wide Flood (WFL).

Optics - Sharp-Edge Downlight

SHARP-EDGED CUT-OFF BEAM (REF) creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º Spot (SPT), 30º Flood (FLD), or 45º Wide Flood (WFL).

Optics - Parabolic

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).



Louver Shape & Finish

Clusters with soft-edge and sharp-edge beams are available in three baffles styles: square, conical, and hyperbolic, each in five finishes. The conical aperture fits into a separate plate which fills out the linear or planar form and can match or contrast with the aperture finish.

Felt Color Options

CONFIGURATIONS

5 cells, 2×2 cells

SHAPES

Round, square

ACOUSTIC FELT

30 color options

Planar

Linear

Blank

cluster-acoustix in restaurant

Treading lightly on our planet

Equally intentional in function and form, Cluster Acoustix luminaires are made with sound absorbing textiles created from recycled single-use bottles. By extending the life of these plastic materials, we can reduce landfill that threatens not only our health, but that of our planet.

Read our sustainability brochure

Acoustix Felt Colors

Elevate your lighting environment with Lumenwerx Acoustix, where sound-absorbing felt meets creative color choices. Designed from recycled materials, our acoustic felts deliver a blend of visual warmth and noise control, seamlessly integrating with architectural spaces while providing endless design possibilities.

Standard Felt Color Options

Acoustix Felt Color-FWN-FROST-WHITE

Frost White

FWN
Acoustix Felt Color-FON - FOG

Fog

FON
Acoustix Felt Color-ION-IRON

Iron

ION
Acoustix Felt Color-TBN-TRUE BLACK

True Black

TBN
Acoustix Felt Color-MDN-MIDNIGHT BLUE

Midnight Blue

MDN
Acoustix Felt Color-LVN-LAVENDER

Lavender

LVN
Acoustic Felt Color-LEN-LATTE

Latte

LEN
Acoustix Felt Color-CYN-CHERRY

Cherry

CYN
Acoustix Felt Color-PMN-PLUM

Plum

PMN
Acoustix Felt Color-FON-FOREST GREEN

Forest Green

FON

Premium Felt Color Options

Acoustix Felt Color-PKN-PAPRIKA

Parika

PKN
Acoustix Felt Color-OGN-ORANGE

Orange

OGN
Acoustix Felt Color-LNN-LEMON

Lemon

LNN
Acoustix Felt Color-LMN-LIME

Lime

LMN
Acoustix Felt Color-EGN-EVERGREEN

Evergreen

EGN
Acoustix Felt Color-CDN-CLOUDY

Cloudy

CDN
Acoustix Felt Color-LCN-LICHEN

Lichen

LCN
Acoustix Felt Color-SYN-SKY

Sky

SYN
Acoustix Felt Color-BLN-BLUEBERRY

Blueberry

BLN
Acoustix Felt Color-NVN-NAVY

Navy

NVN
Acoustix Felt Color-IVN-IVORY

Ivory

IVN
Acoustix Felt Color-SLN-STEEL

Steel

SLN
Acoustix Felt Color-CNN-CARBON

Carbon

CNN
Acoustix Felt Color-GHN-GRAPHITE

Graphite

CHN
Acoustix Felt Color-CLN-CHARCOAL

Charcoal

CLN
Acoustix Felt Color-BHN-BLUSH

Blush

BHN
Acoustix Felt Color-CFN-CAFE

Cafe

CFN
Acoustix Felt Color-GRN-GREIGE

Greige

GRN
Acoustix Felt Color-MON-MOCHA

Mocha

MON
Acoustix Felt Color-ESN-ESPRESSO

Espresso

ESN
