SOFT-EDGED FEATHERED BEAM (SOF) blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using Total Internal Reflection (TIR) to shape the light. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º Narrow Flood (NFL), 35º Flood (FLD), or 55º Wide Flood (WFL).

SHARP-EDGED CUT-OFF BEAM (REF) creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square aperture provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º Spot (SPT), 30º Flood (FLD), or 45º Wide Flood (WFL).

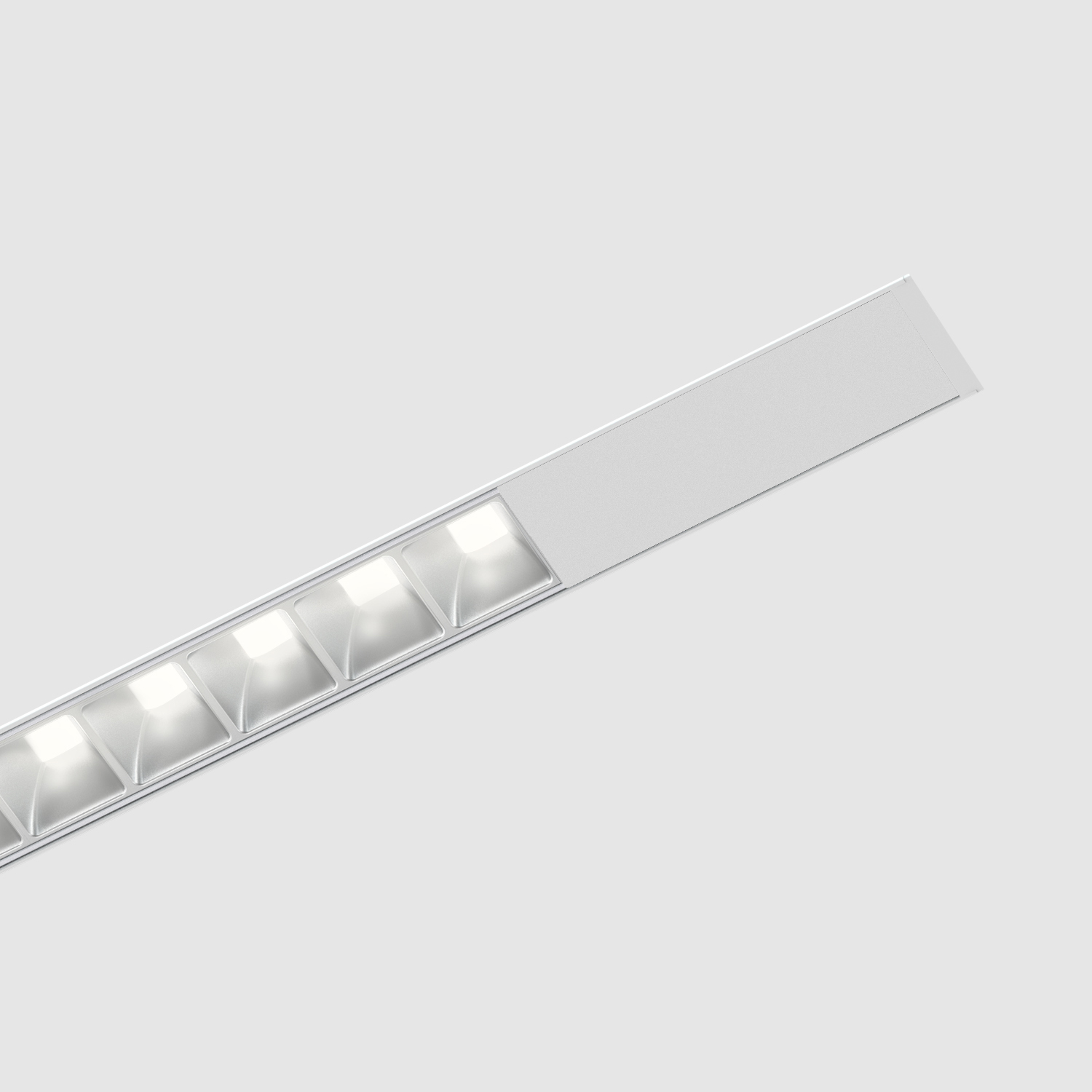

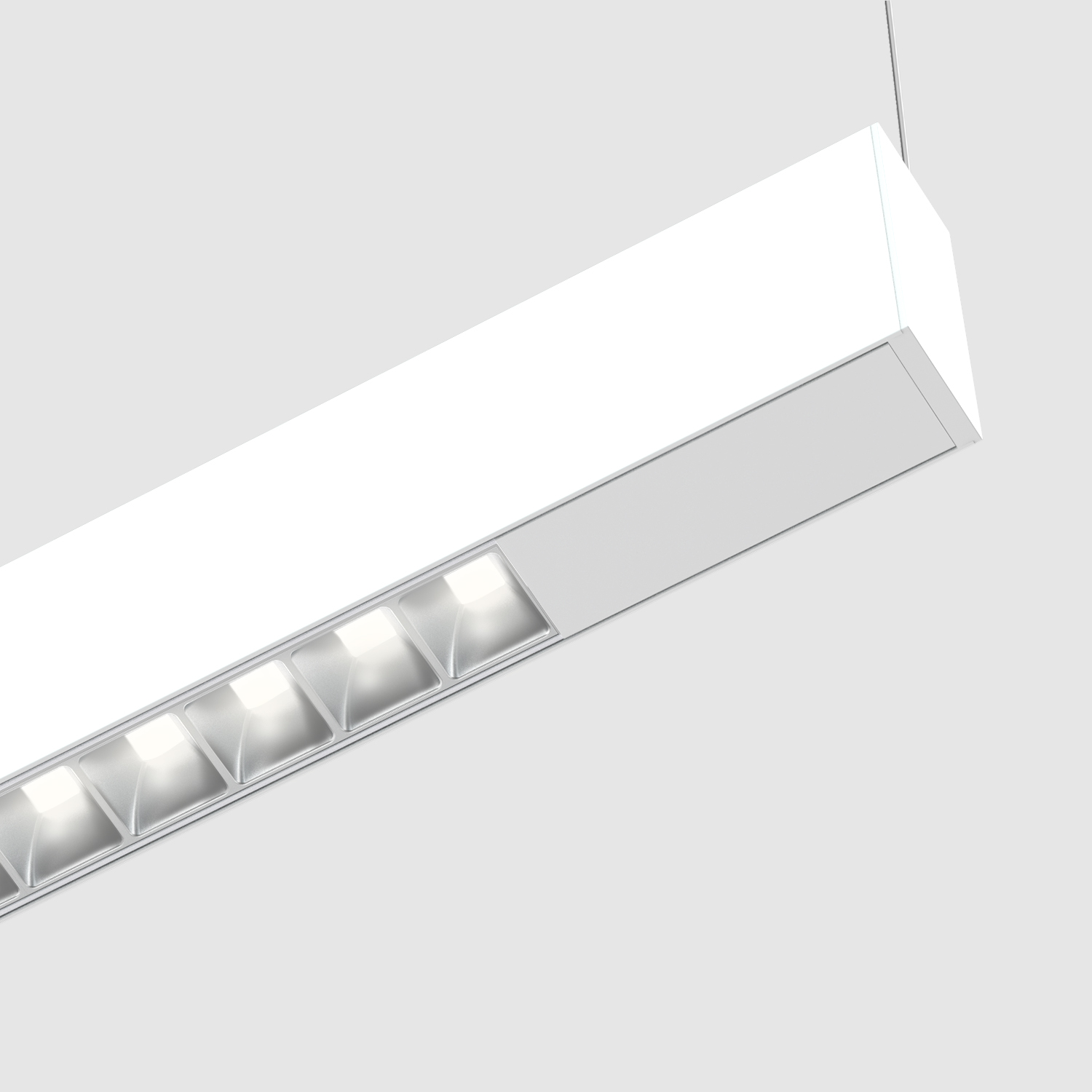

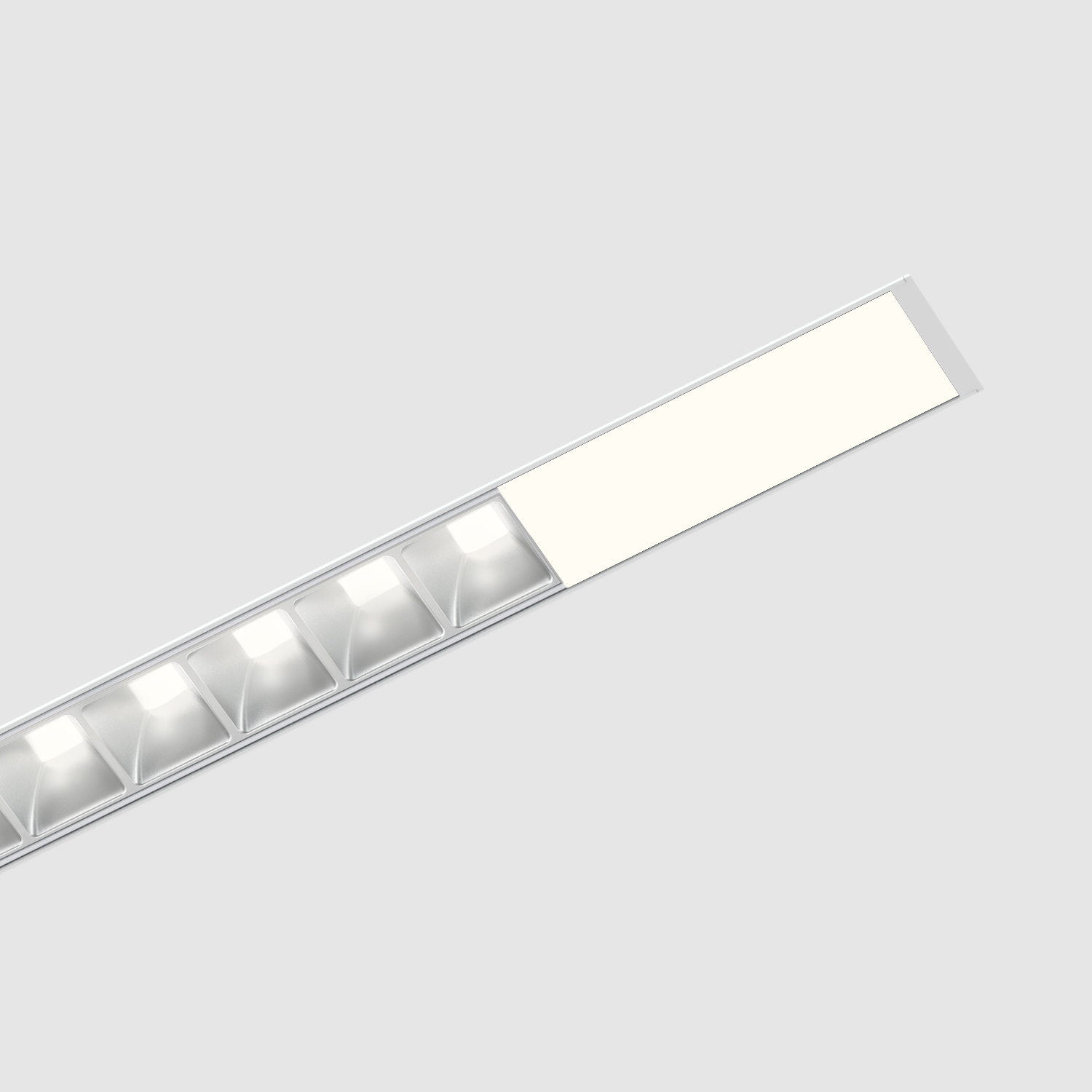

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Wall Wash Reflector Optics (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.

Clusters with soft-edge and sharp-edge beams are available in three baffles styles: square, conical, and hyperbolic, each in five finishes. The conical aperture fits into a separate plate which fills out the linear or planar form and can match or contrast with the aperture finish.
