Evoq

Adaptable Cove System

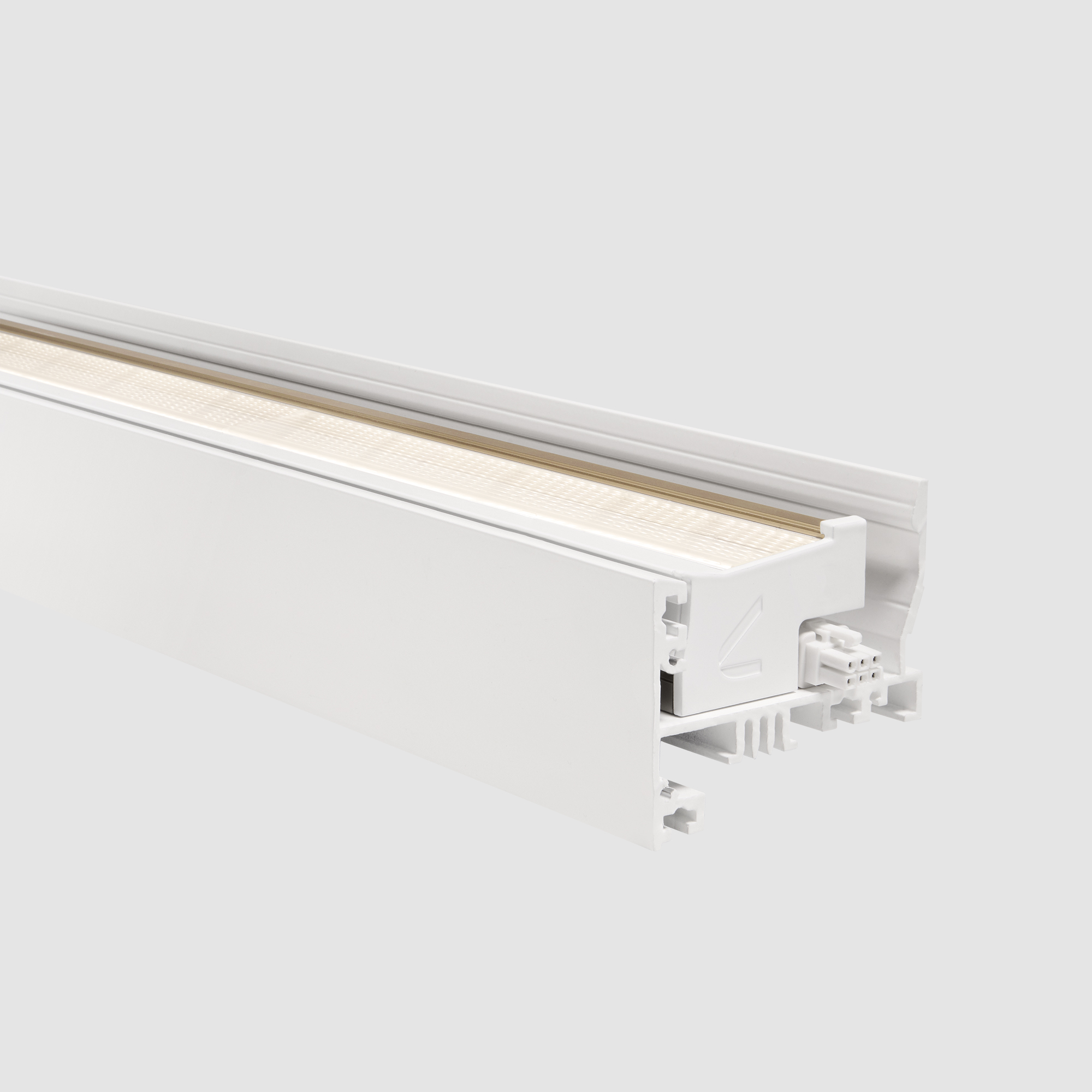

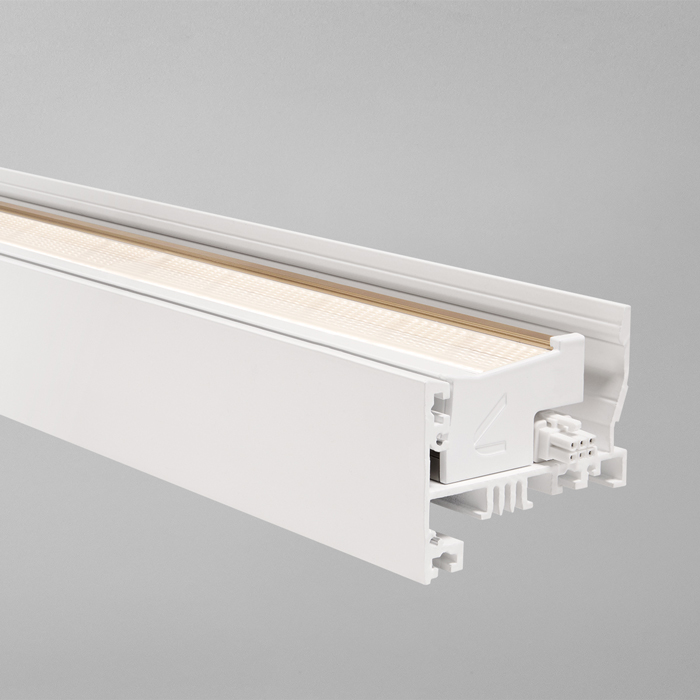

Evoq is an adaptable cove lighting system comprising modular light fixtures, various mounting options, and precision-engineered optics, among other components. Evoq’s modular fixtures come in 12″, 18″, and 48″ lengths, delivering powerful illumination of up to 1200 lm/ft and ranging from 3W to 12W. The optic options—Asymmetric Narrow Optic (ANO) or Asymmetric Wide Optic (AWO)—emit clean beams with uniformly distributed indirect light and zero light spill. Evoq ramps serve as prebuilt structures for integrating light fixtures, concealing wiring, and assuming the form of the architectural cove. Available in Mud-in, Direct Mount, and Field-Curvable options, they are quick and easy to install and can be field-cut to fit various designs. Simultaneously ready-made and customizable, Evoq’s ramps streamline installation, effectively reducing labor costs and positioning Evoq as a highly cost-effective cove lighting solution.

Specifications

Product TypesLinear, Cove OpticsANO, AWO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Sola (Dim to Warm) CertificationDeclare MountingCove Distribution TypeAsymmetric

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Full Spectrum

Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

ANO

The Asymmetric Narrow Optic (ANO) is designed specifically for shallow coves with optimal performance achieved with fixture placement at 6″-12″ from the ceiling. Its precise projection of light along ceilings and walls is evenly distributed with a soft, homogeneous gradient effect. The ANO peak intensity angle from nadir is at 110°, making it a true asymmetric optic that directs the light where it is intended.

AWO

The Asymmetric Wide Optic (AWO) excels at maximizing light projection even farther to create a soft gradient illumination with remarkable uniformity in deeper coves. The AWO’s optimal performance is achieved with fixture placement at 10″-36″ from the ceiling. Its peak intensity angle from nadir is at 107°, creating a true asymmetric optic that aims light exactly where needed.
