Medius

Direct, Direct/Indirect

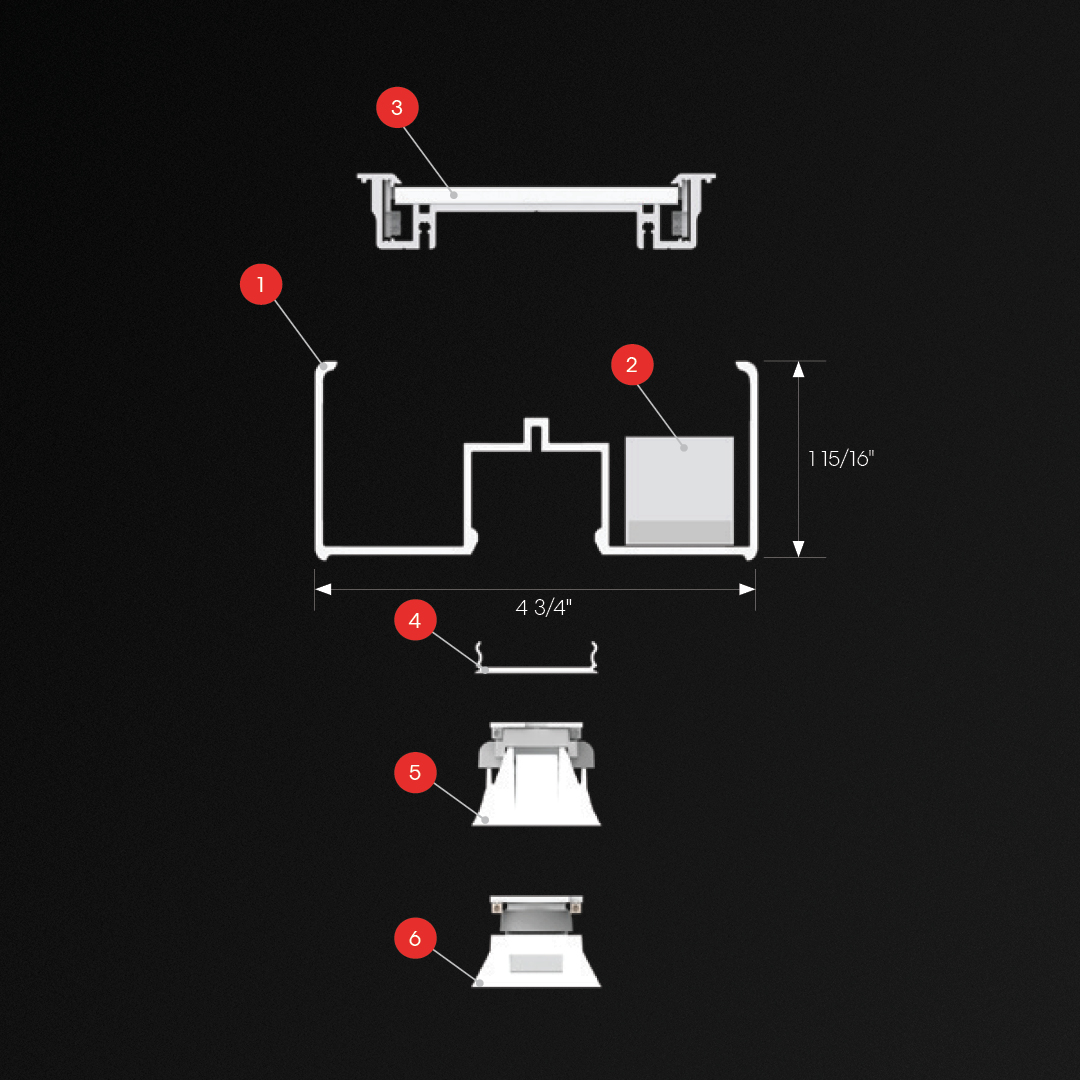

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

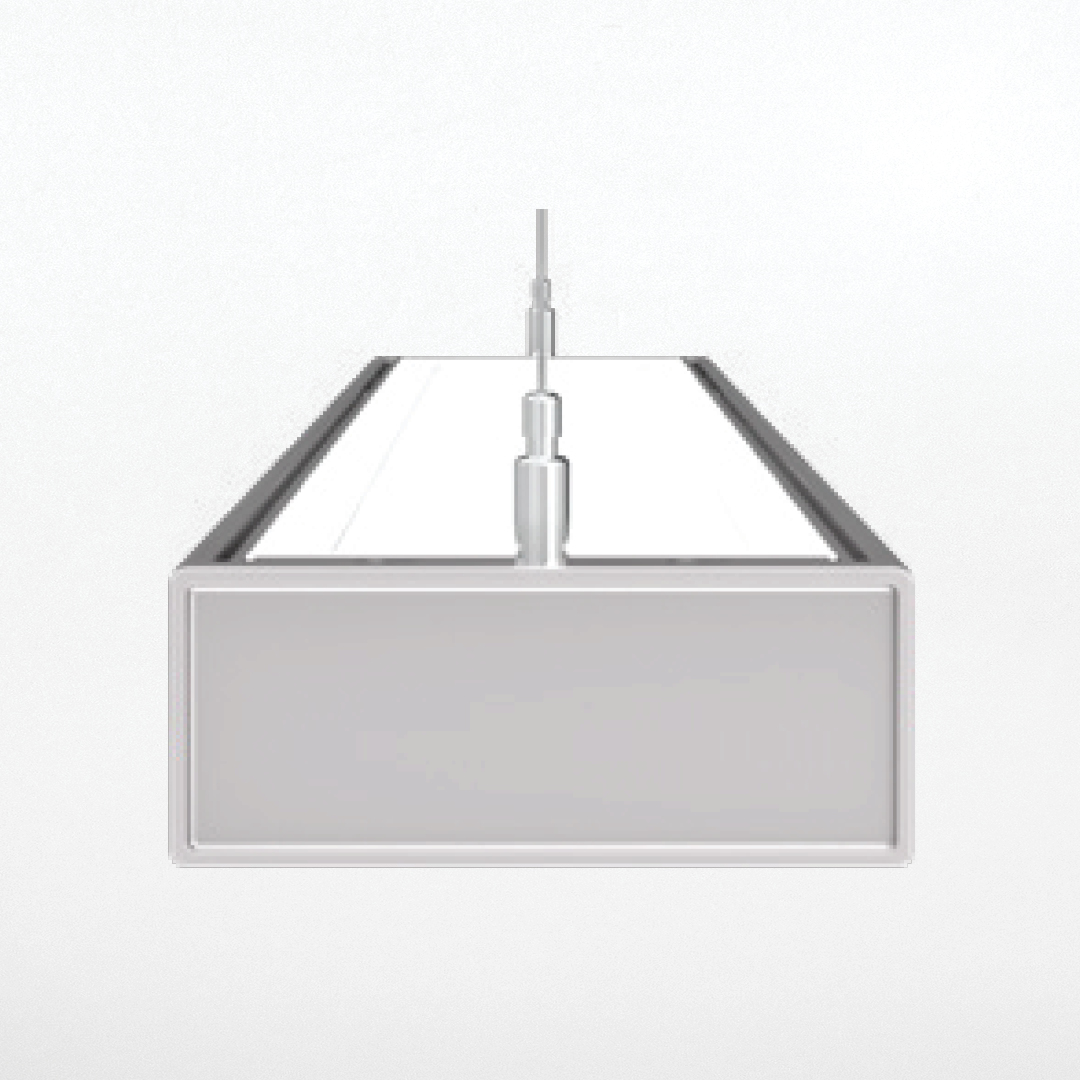

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

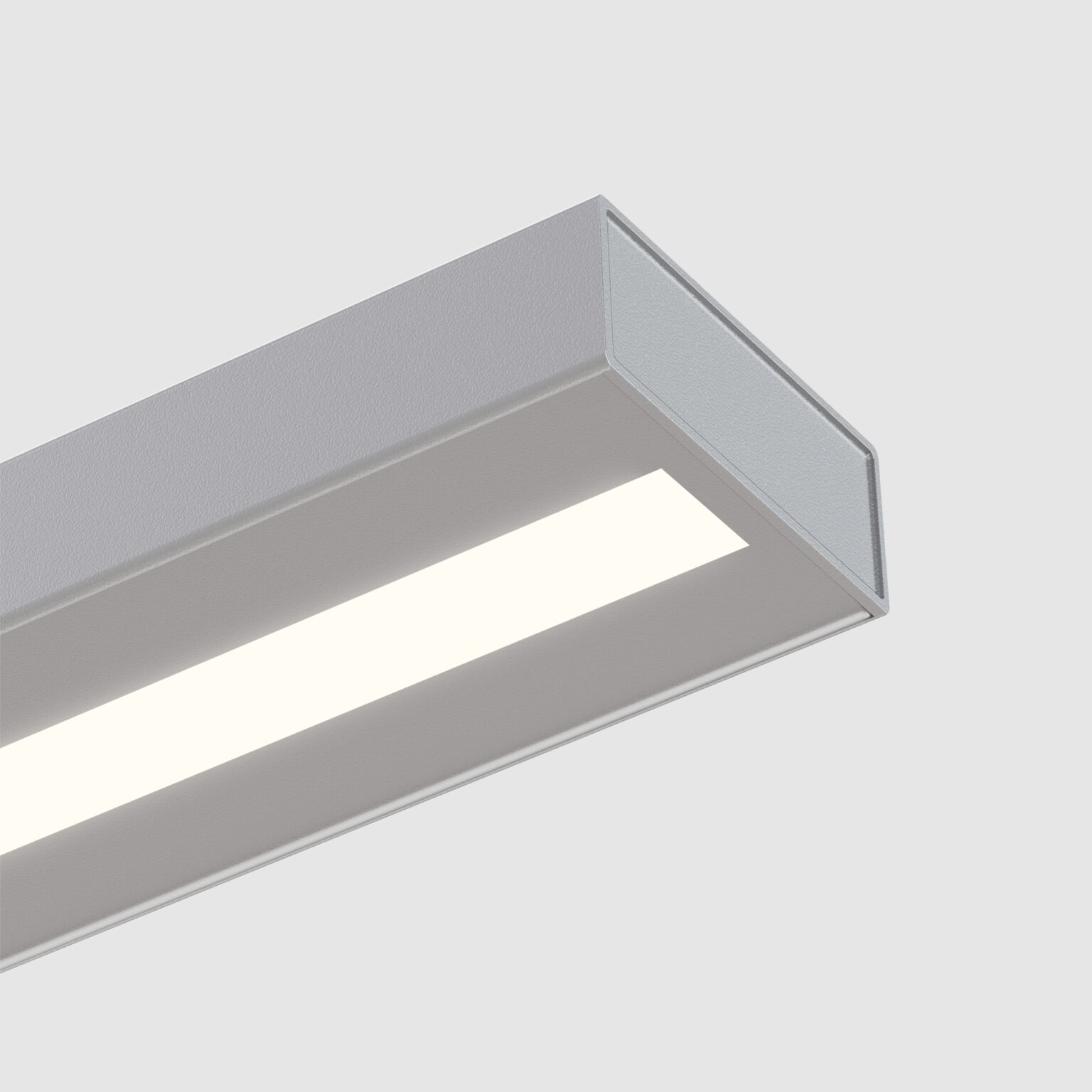

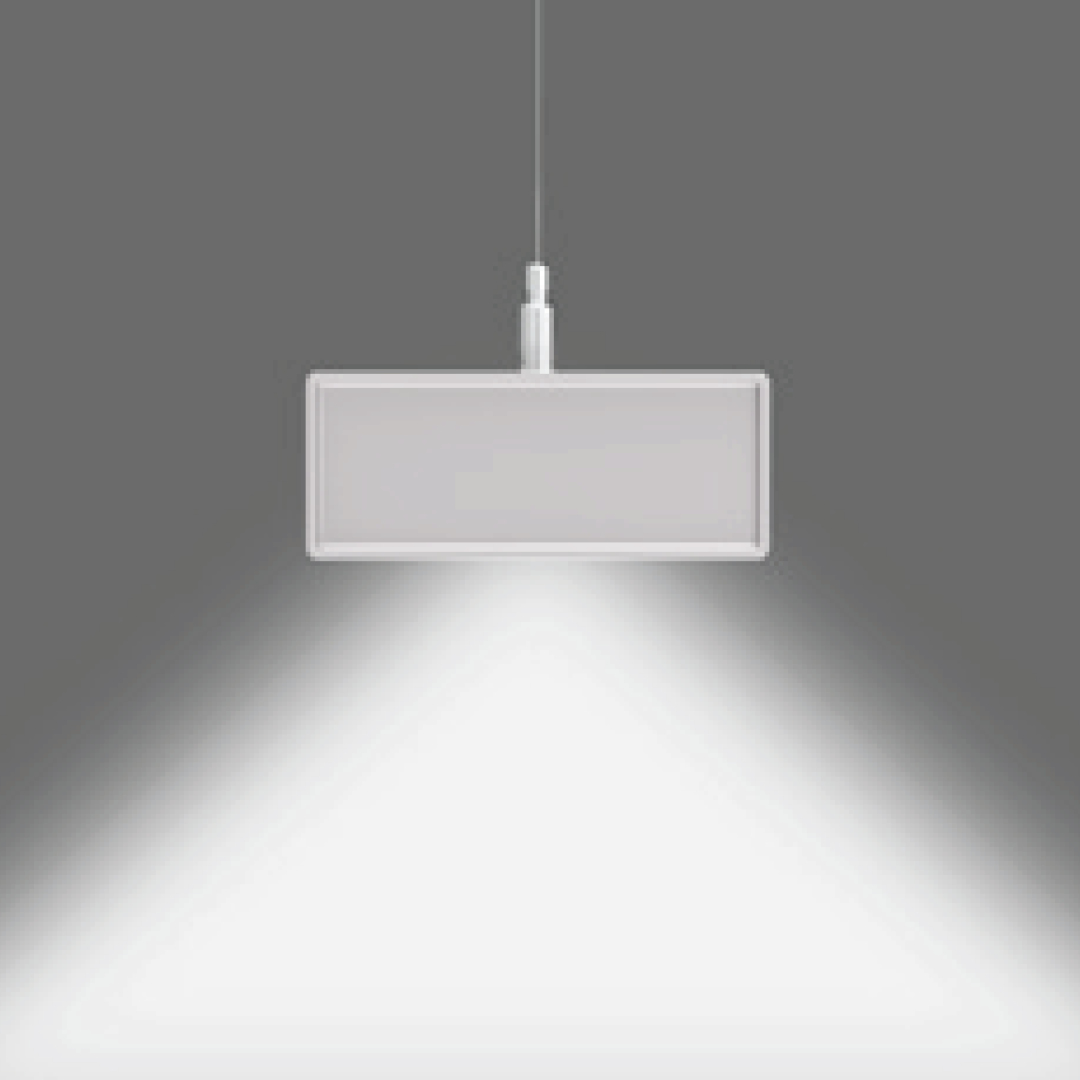

Specifications - Pendant Direct HLO

Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

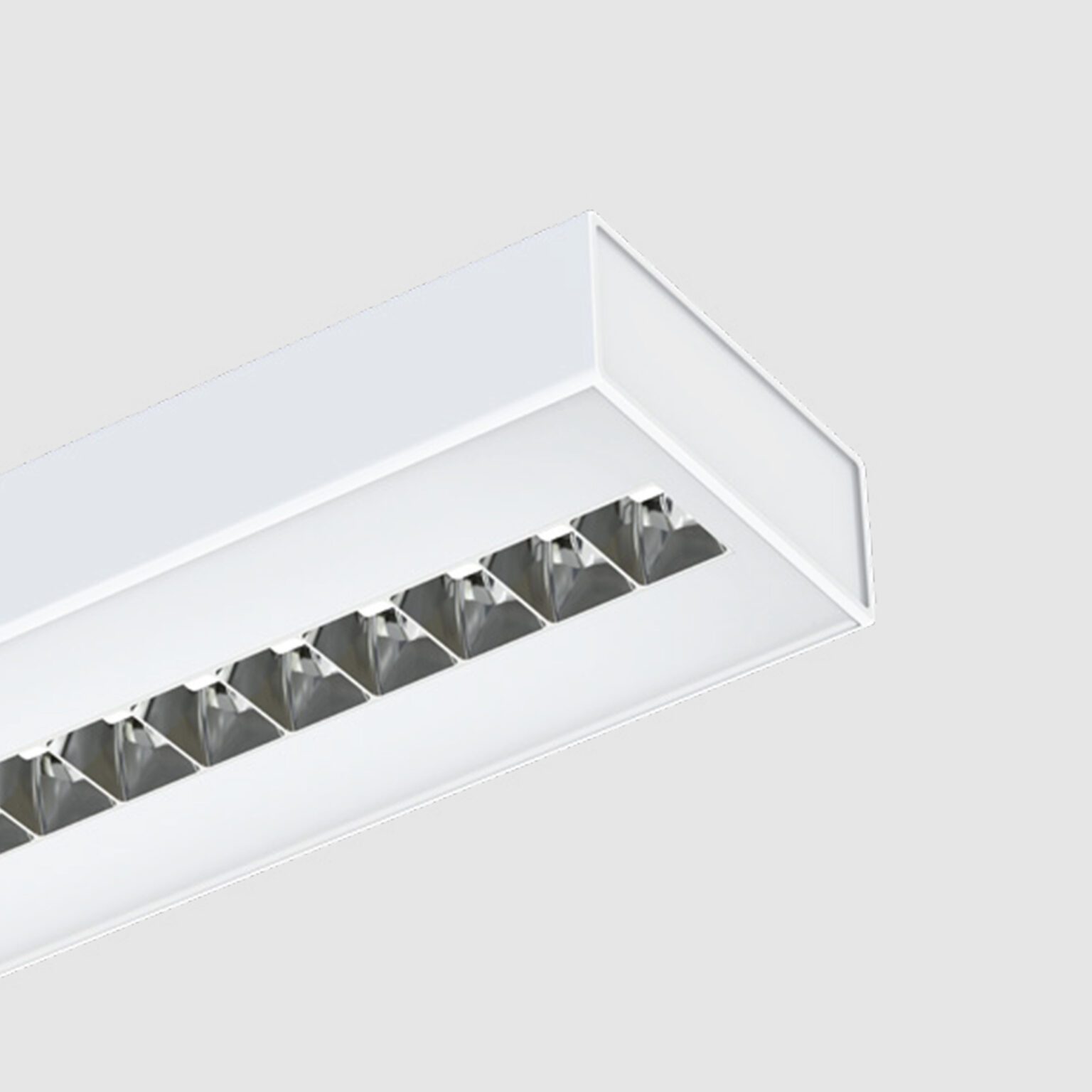

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

Specifications - Pendant Direct MRO

Product TypeLinear OpticMRO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

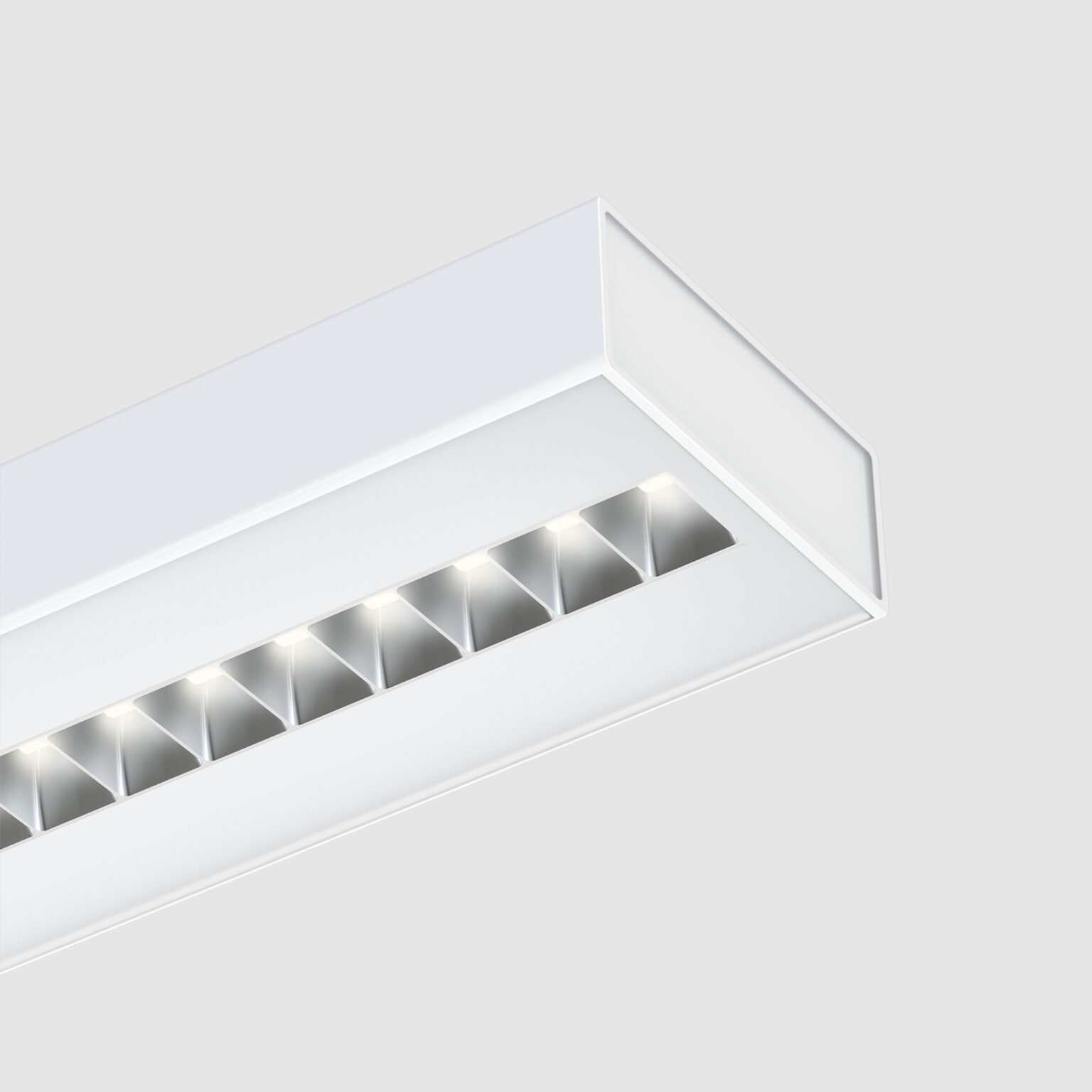

Specifications - Pendant Direct Parabolic

Product TypeLinear OpticsMPL, SPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

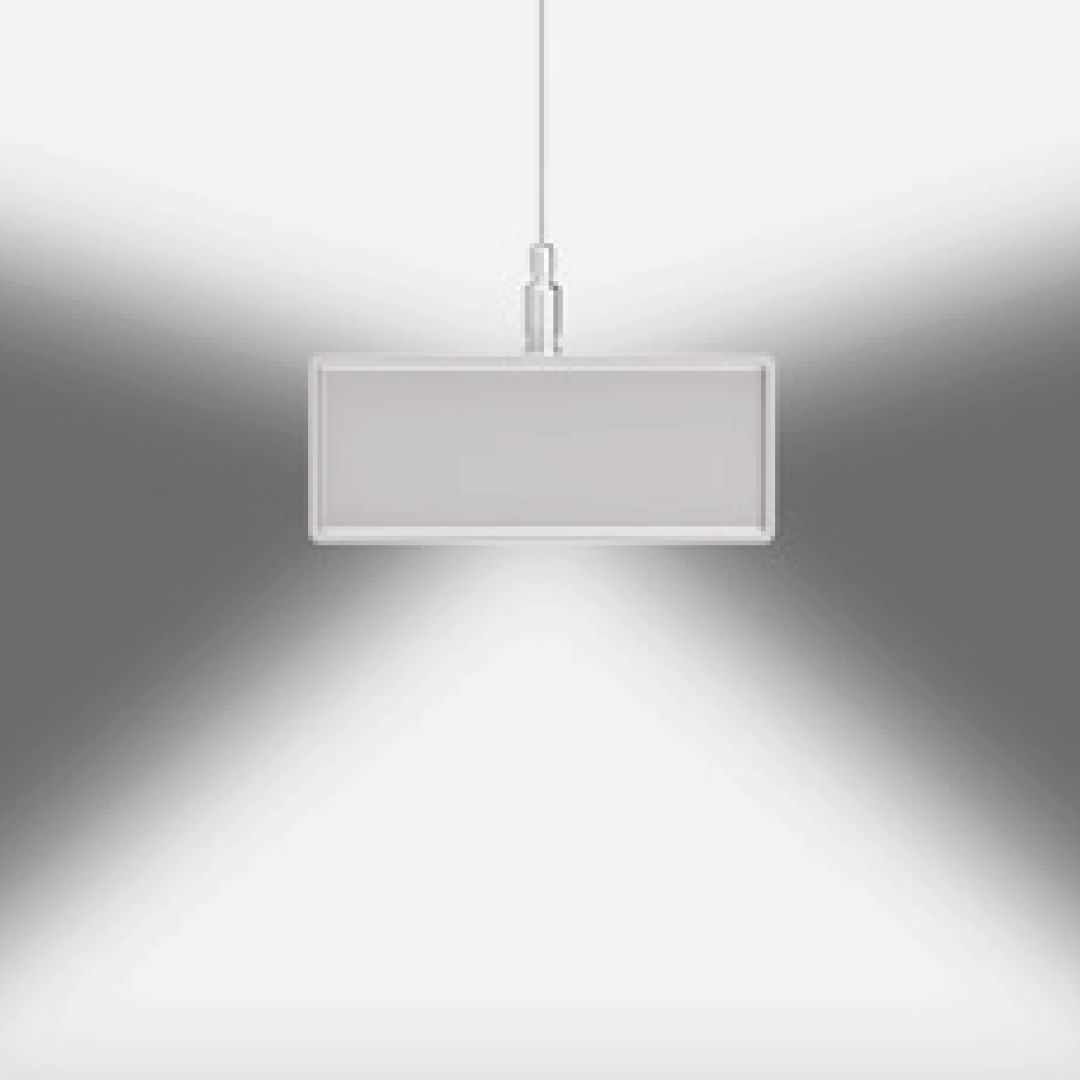

Specifications - Pendant Direct/Indirect HLO

Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

Specifications - Pendant Direct/Indirect MRO

Product TypeLinear OpticMRO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

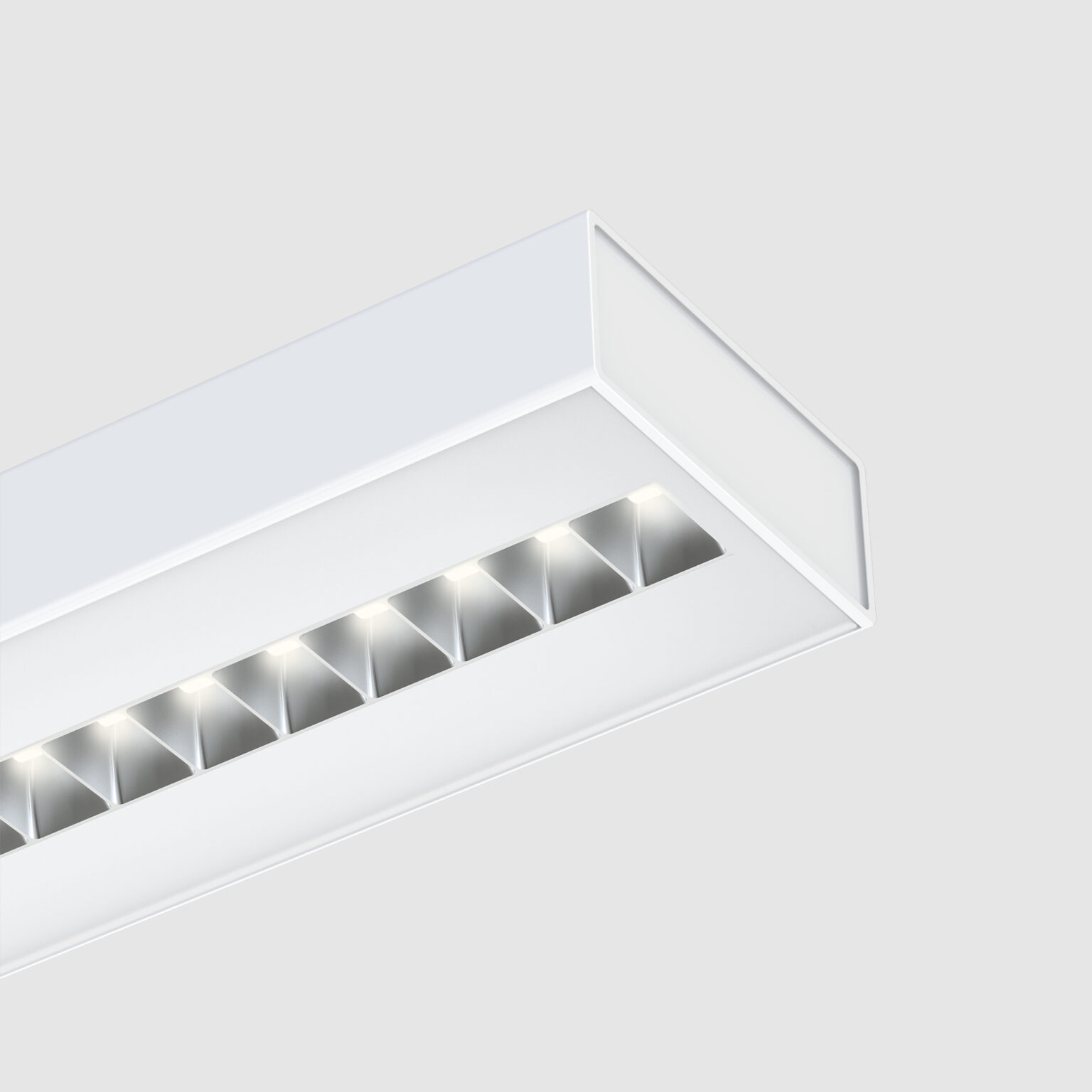

Specifications - Pendant Direct/Indirect Parabolic

Product TypeLinear OpticsMPL, SPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

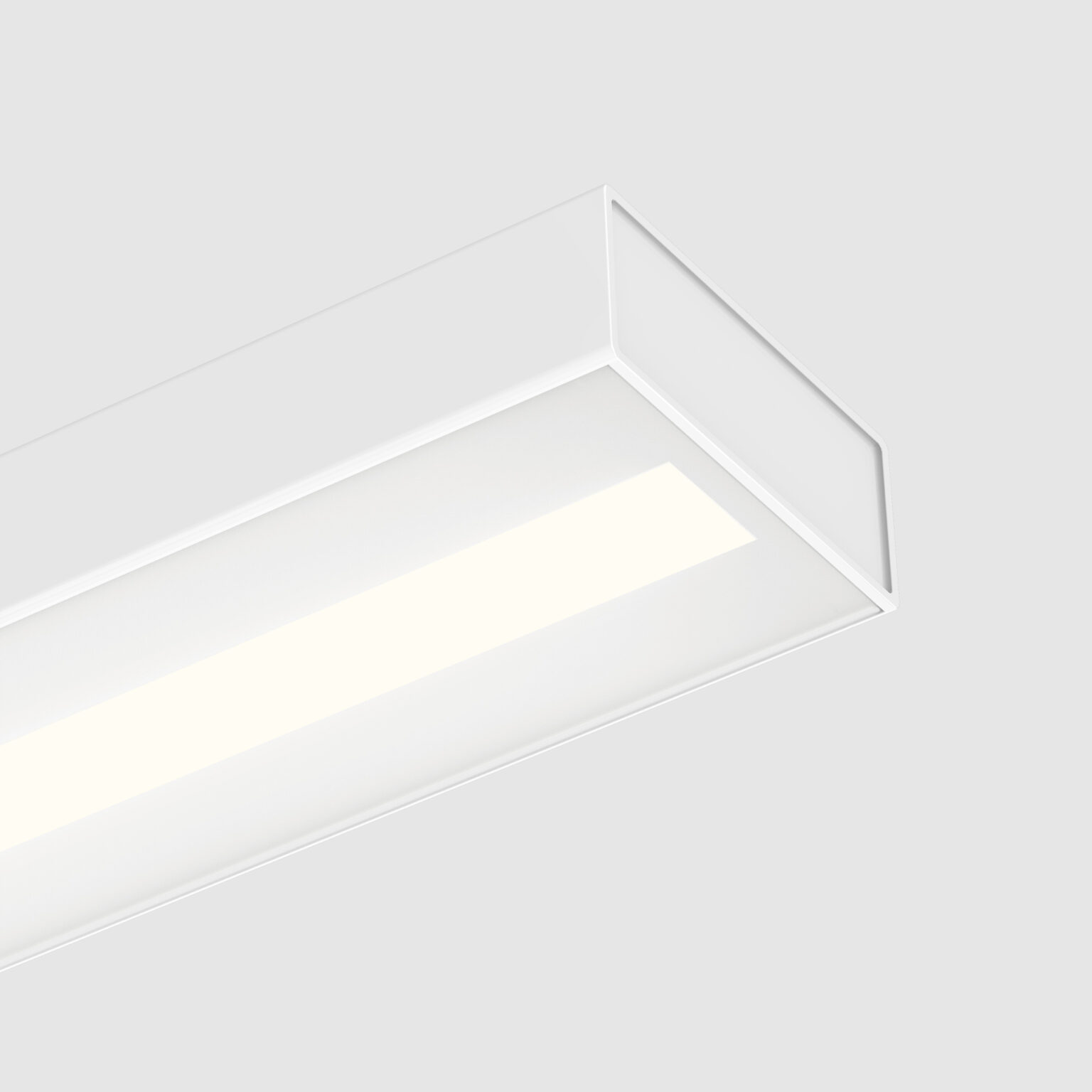

Specifications - Wall Direct

Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingWall Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.

: SPL

: MPL

Medius

Direct, Direct/Indirect

Within its compact 1 15/16″ x 4 ¾” profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.

A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.

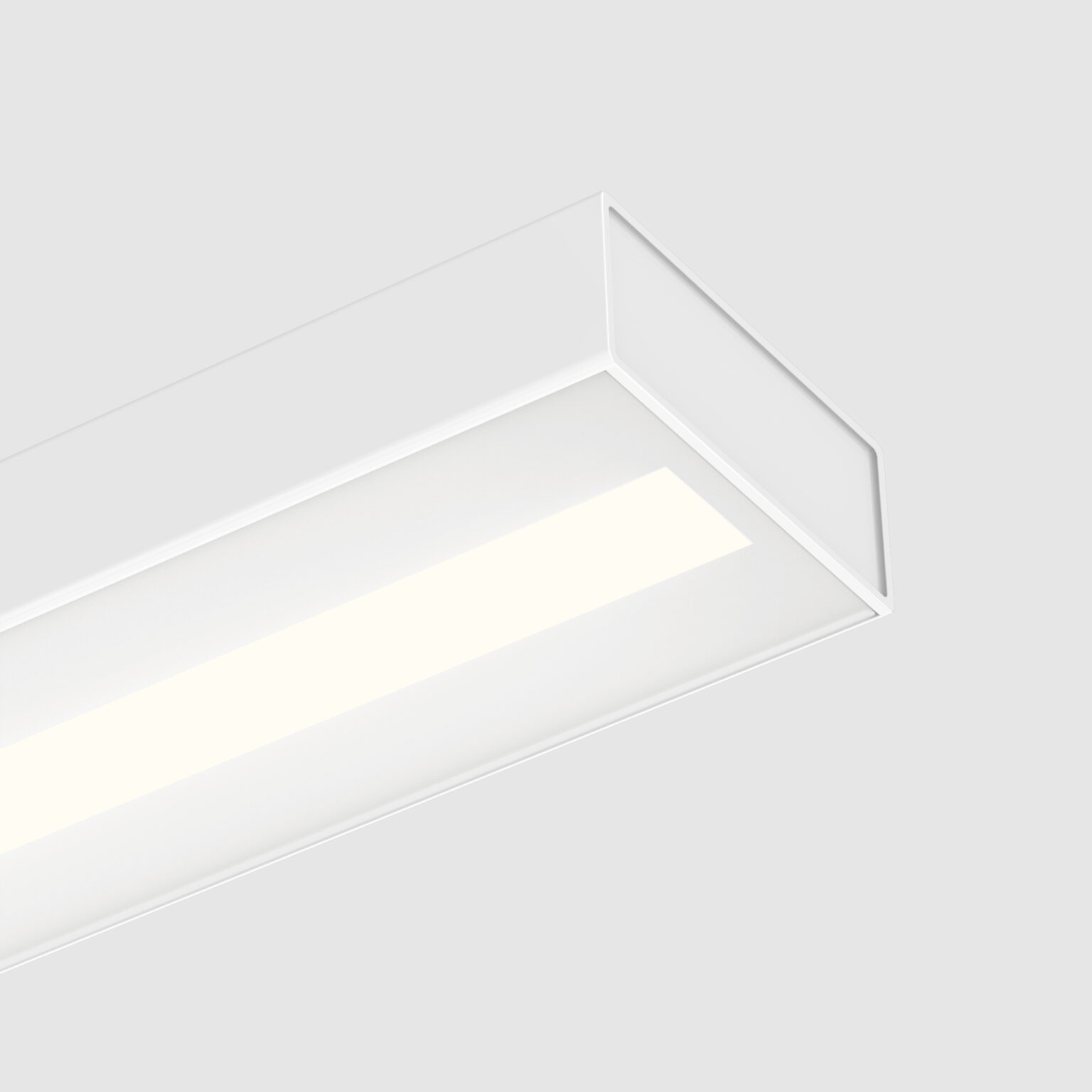

Specifications - Wall Direct/Indirect

Product TypeLinear OpticsMPL, SPL CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingWall Distribution TypeDirect, Direct/Indirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

HLO

The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

MRO

MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.

MPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

SPL

Parabolic Louvers (SPL, MPL, WPL, BPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available: Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

Parabolic Louvers

PARABOLIC LOUVERS (SPL AND MPL) – Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and side reflectors with shielding of 50° lengthwise and 45°cross wise.

The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution with a spacing criterion of 1.1, while minimizing shadows from the LED array above each cell.

Two finishes are available. Specular (SPL) provides higher efficacy, sharper cut-off, and an ultra quiet appearance at shallow viewing angles. Matte (MPL) offers a softer appearance, a wider beam spread, and gentle brightness transition at cut-off.
