Cubito
Direct
A fresh face on a familiar form. It’s lighting with an edge! Cubito illuminates its square profile through two adjacent sides, forming a luminous right angle 2 ½” on each side.
Wall mount Cubito as an uplight or downlight; run it at the wall/ceiling line to delineate the planes; install it vertically at the corner of two walls as a luminous signal, either surface or recessed. Cubito can be a discrete luminaire, a continuous line of light, or turn corners in one plane or two.

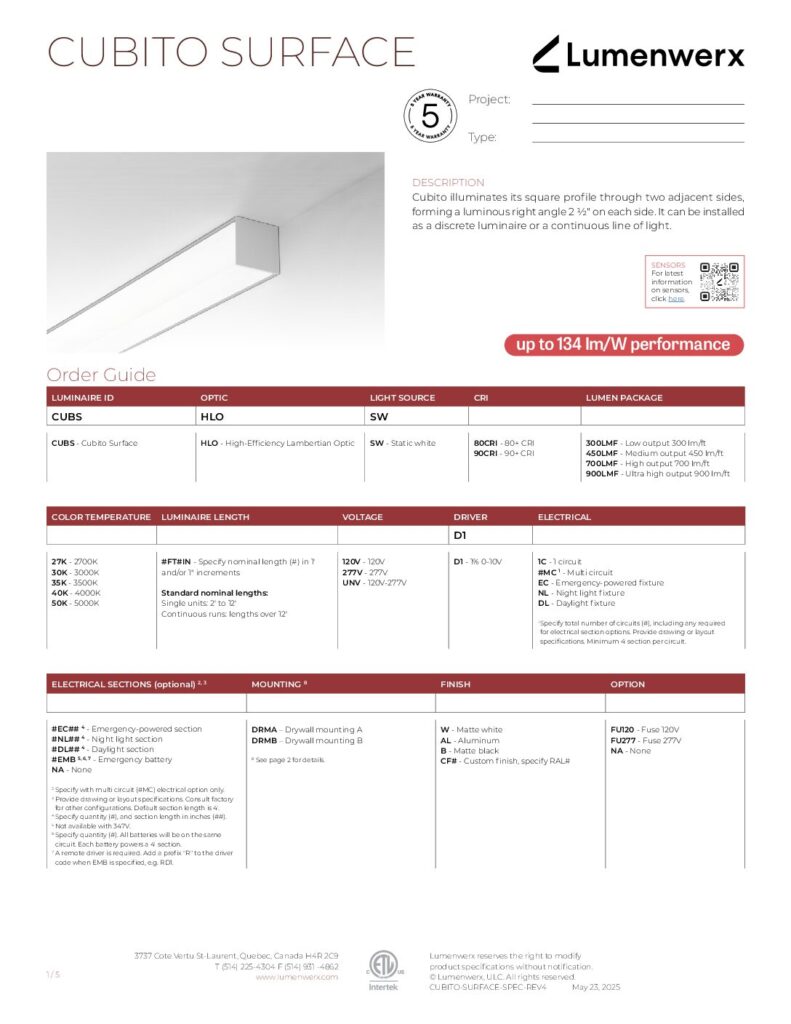

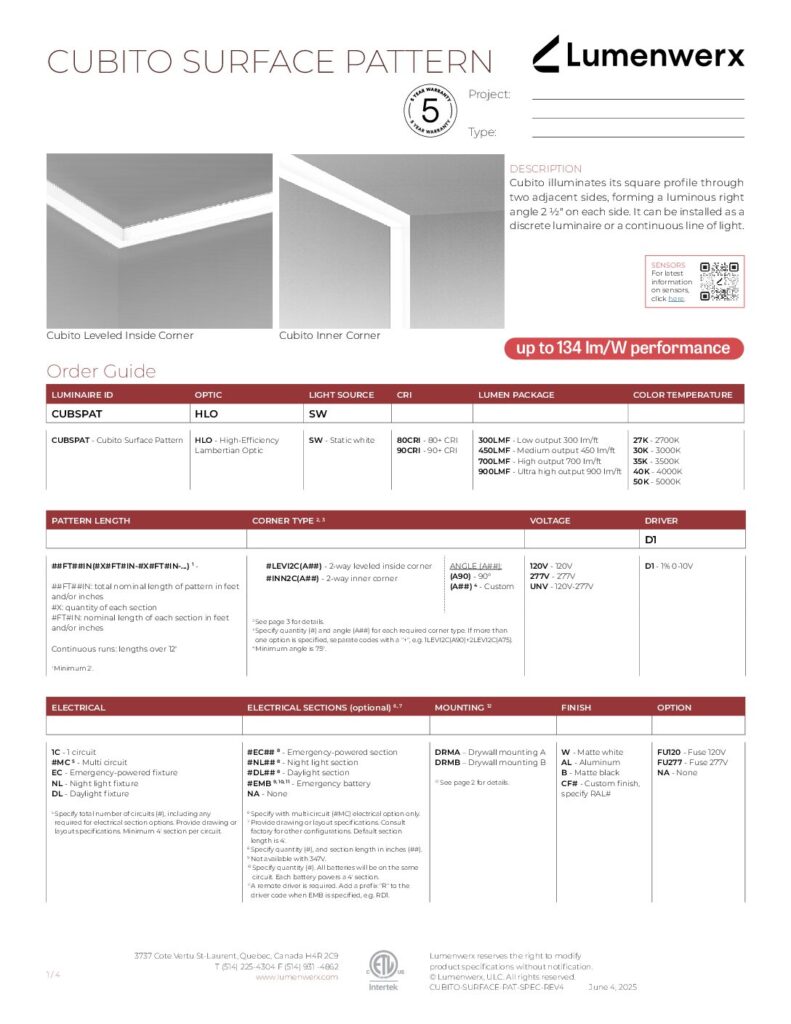

Product DownloadsSpecifications - Surface
Product TypeLinear OpticHLO CCT/Light & ColorStatic White MountingSurface Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Patterns
Cubito Surface and wall can turn corners in one plane (Leveled) or two (Inner).

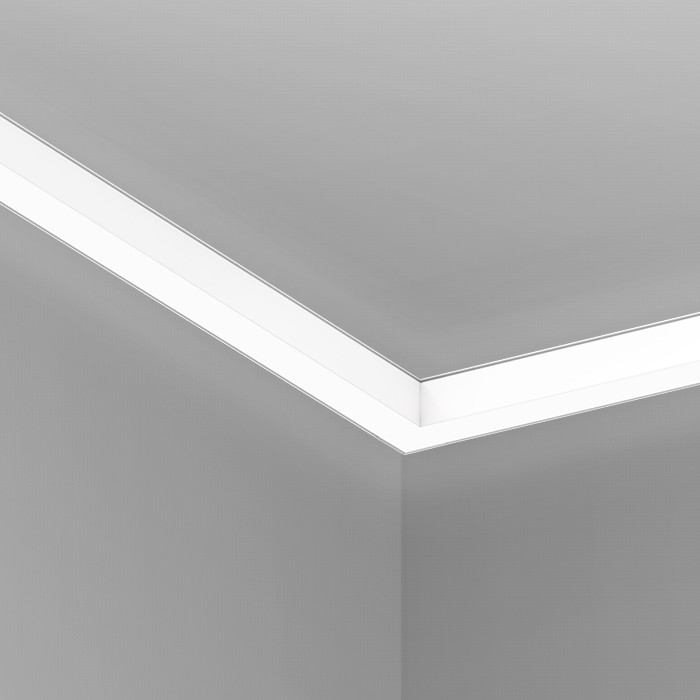

Leveled

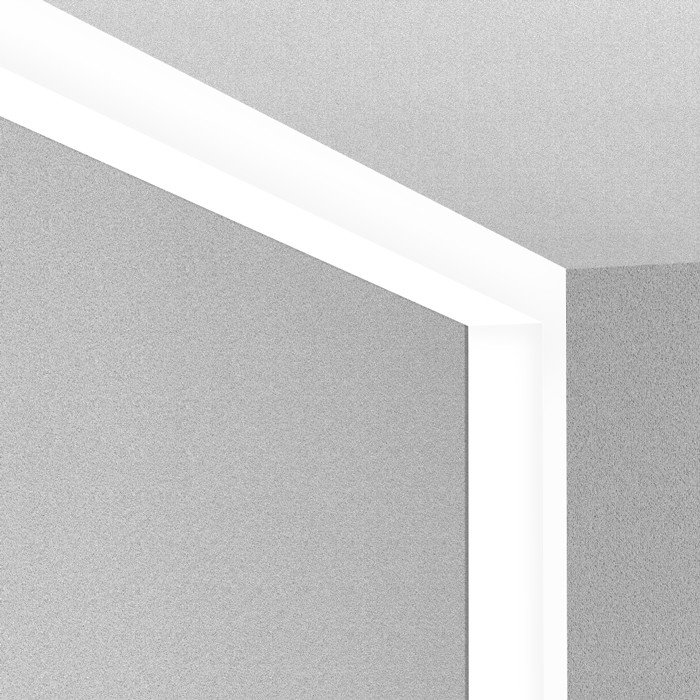

Inner
Cubito
Direct
A fresh face on a familiar form. It’s lighting with an edge! Cubito illuminates its square profile through two adjacent sides, forming a luminous right angle 2 ½” on each side.
Wall mount Cubito as an uplight or downlight; run it at the wall/ceiling line to delineate the planes; install it vertically at the corner of two walls as a luminous signal, either surface or recessed. Cubito can be a discrete luminaire, a continuous line of light, or turn corners in one plane or two.

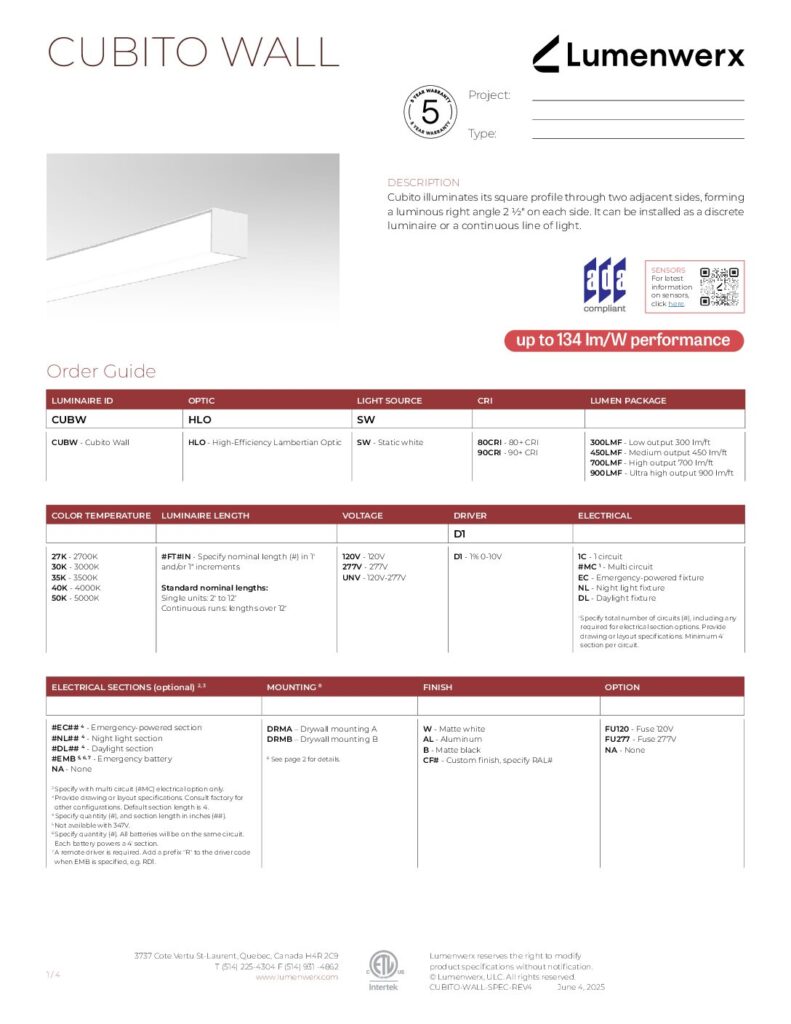

Product DownloadsSpecifications - Wall
Product TypeLinear OpticHLO CCT/Light & ColorStatic White MountingWall Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Patterns
Cubito Surface and wall can turn corners in one plane (Leveled) or two (Inner).
Leveled
Inner
Cubito
Direct
A fresh face on a familiar form. It’s lighting with an edge! Cubito illuminates its square profile through two adjacent sides, forming a luminous right angle 2 ½” on each side.
Wall mount Cubito as an uplight or downlight; run it at the wall/ceiling line to delineate the planes; install it vertically at the corner of two walls as a luminous signal, either surface or recessed. Cubito can be a discrete luminaire, a continuous line of light, or turn corners in one plane or two.

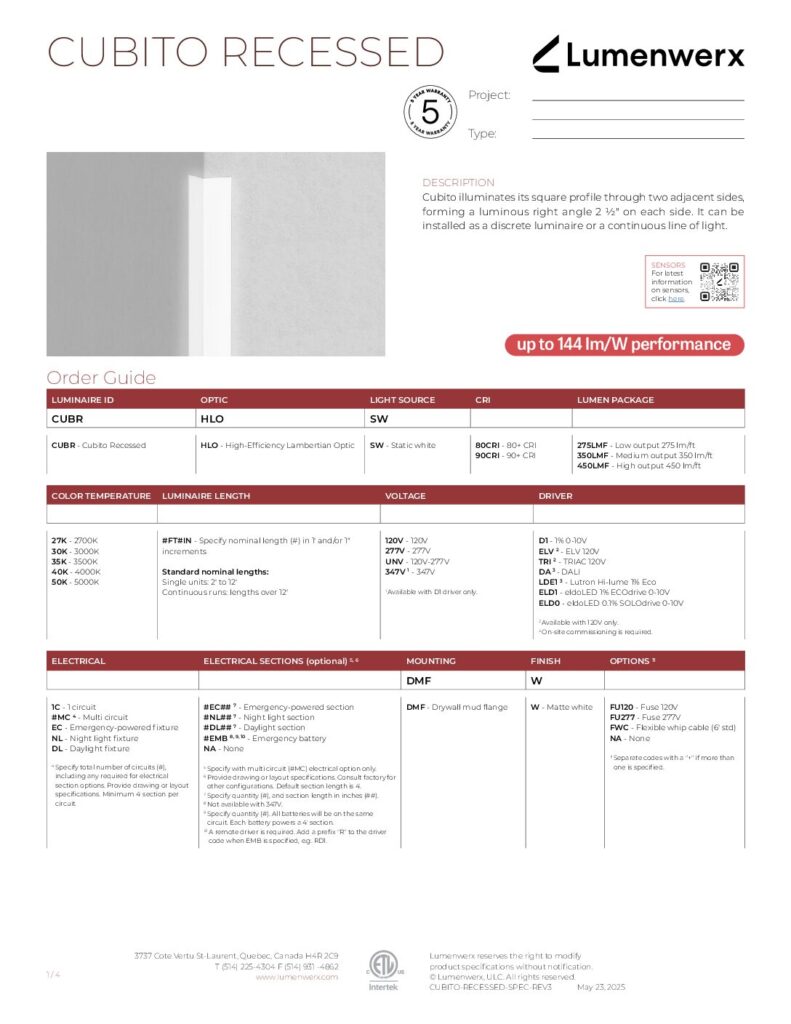

Product DownloadsSpecifications - Wall-Recessed
Product TypeLinear OpticHLO CCT/Light & ColorStatic White MountingWall-Recessed Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Patterns
Cubito Surface and wall can turn corners in one plane (Leveled) or two (Inner).
Leveled
Inner
Direct
Surface, Wall, Recessed
90 CRI
Surface, Wall, Recessed

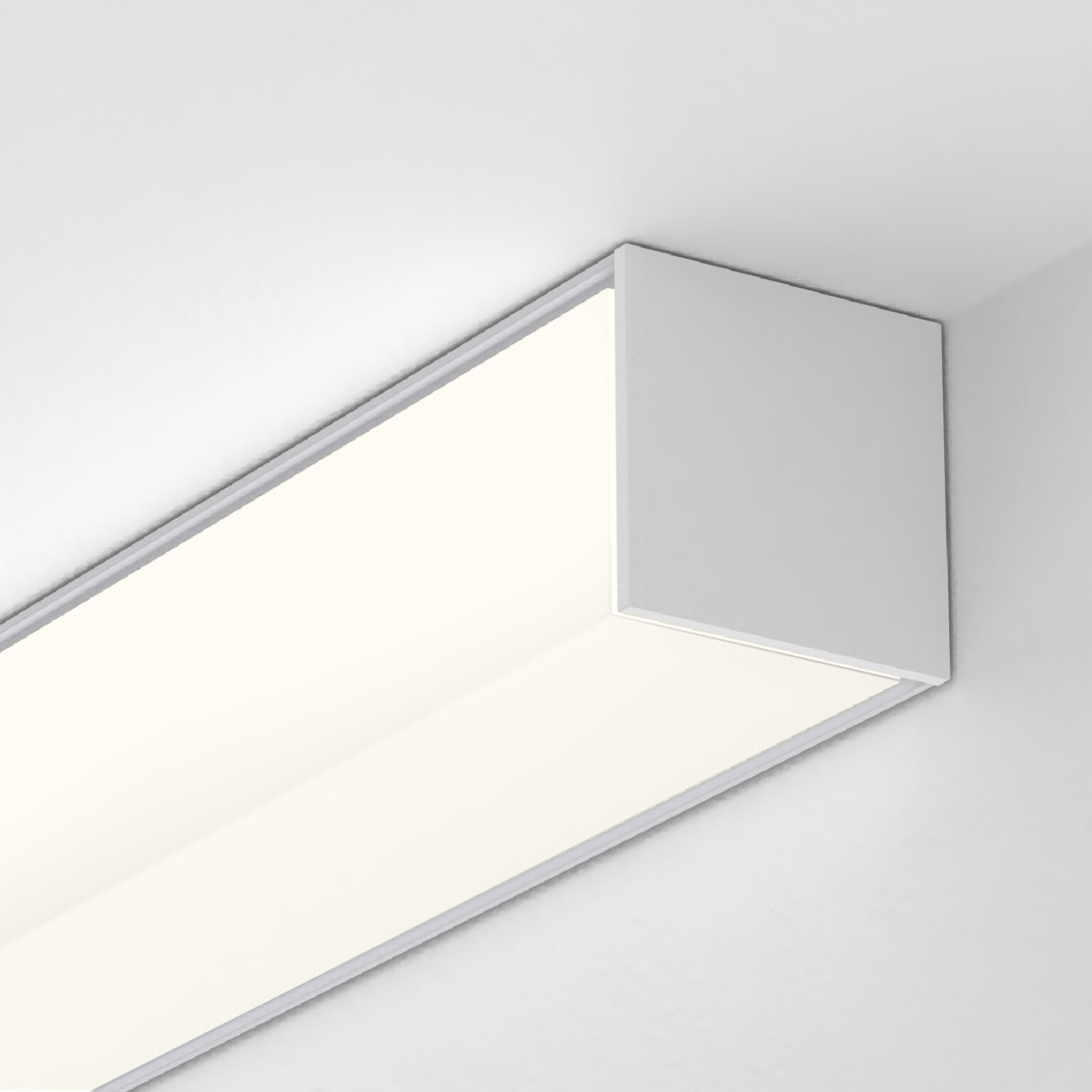

Cubito Surface draws a crisp luminous line along wall–ceiling or wall–wall intersections, with fully lit corners that allow continuous patterns and meaningful spill light into the space.
Cubito Wall delivers either direct or indirect illumination with a strong room-side component, all in a profile under 3″ from the wall for ADA-compliant installations.
Cubito Recessed creates a clean luminous outside corner to outline columns, wall edges, or junctions, using internal brackets and serviceable gear that leave the finished surface and mud flange undisturbed.

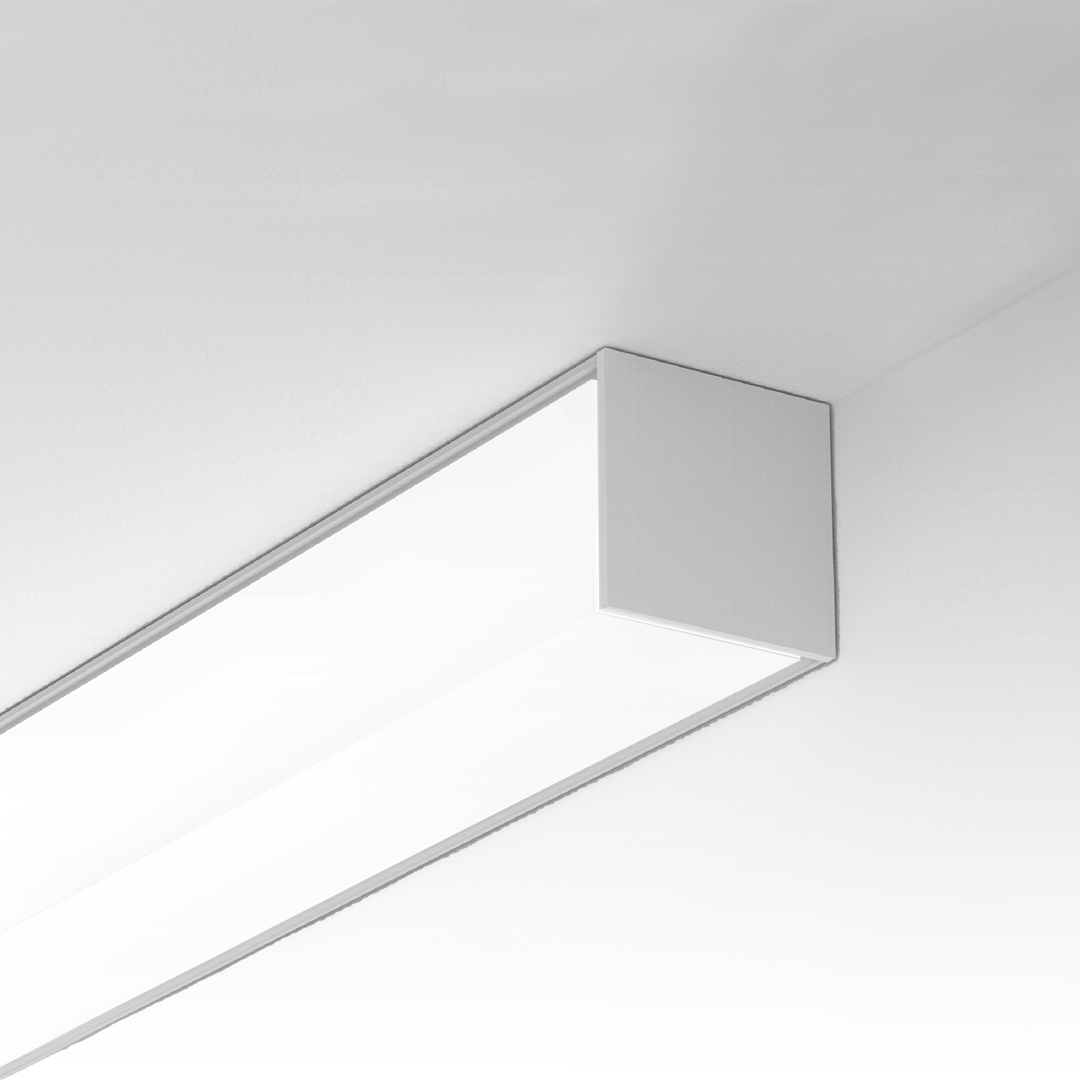

Cubito Surface
Horizontal mounting between the ceiling and wall

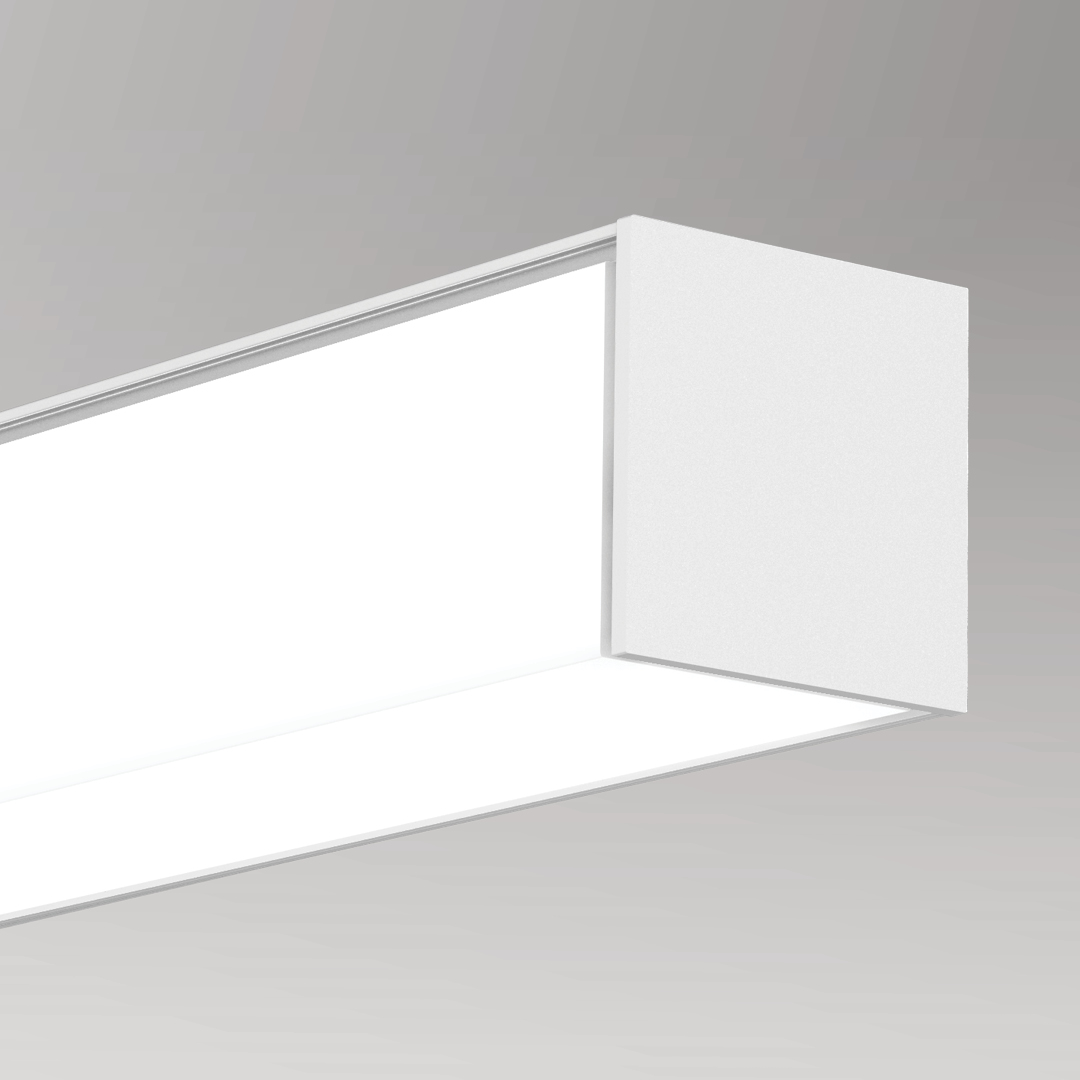

Cubito Surface
Direct Light Distribution

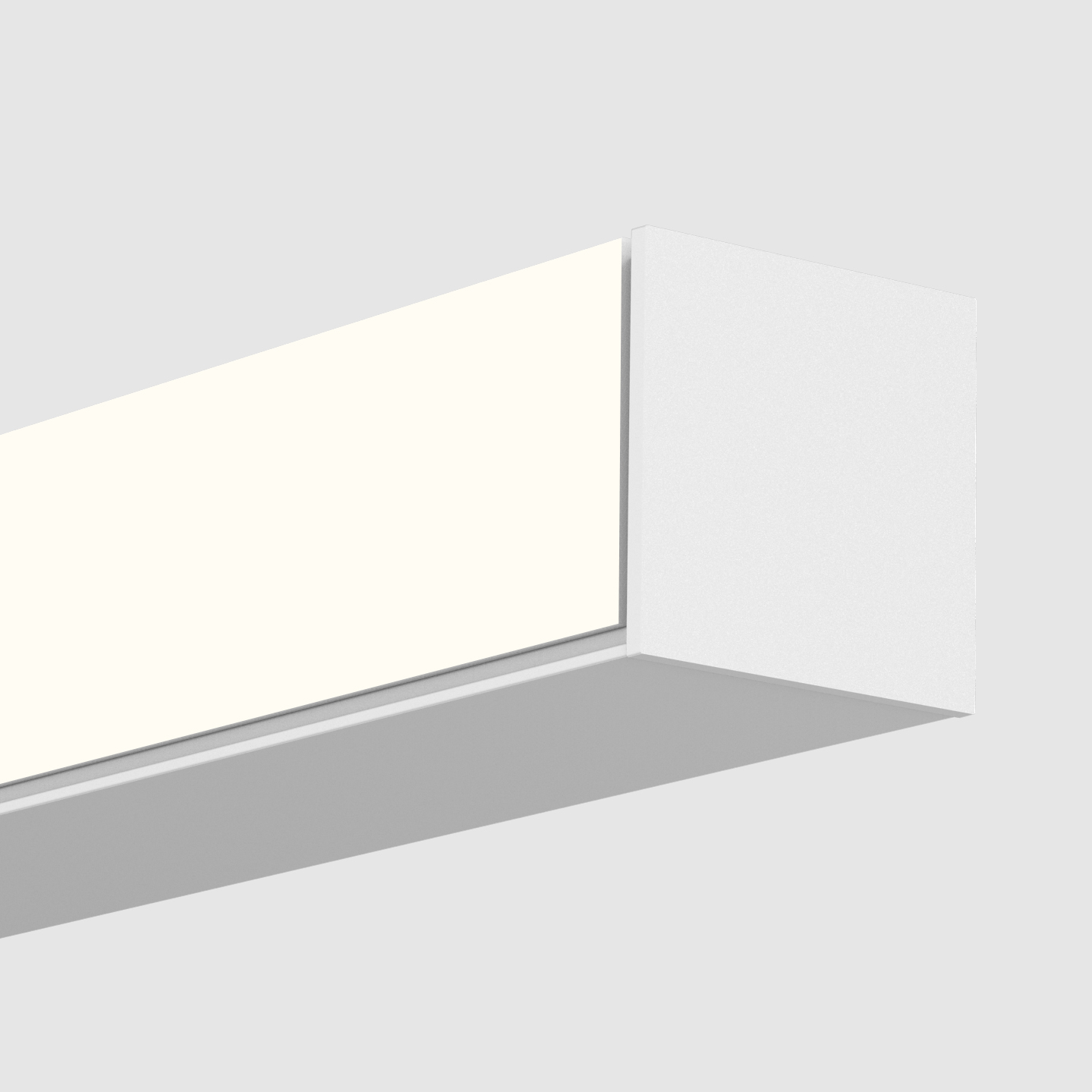

Cubito Wall

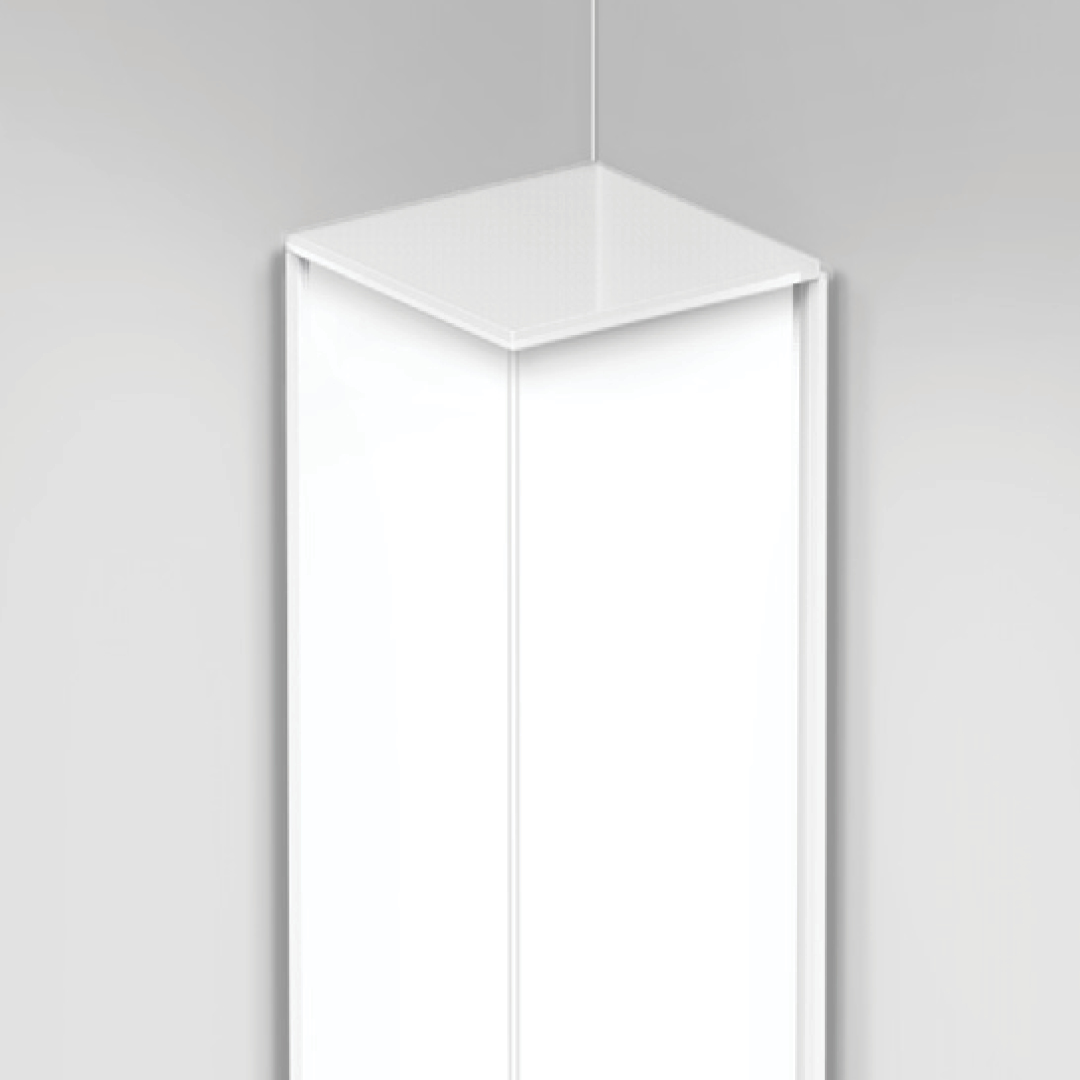

Vertical mounting between two walls

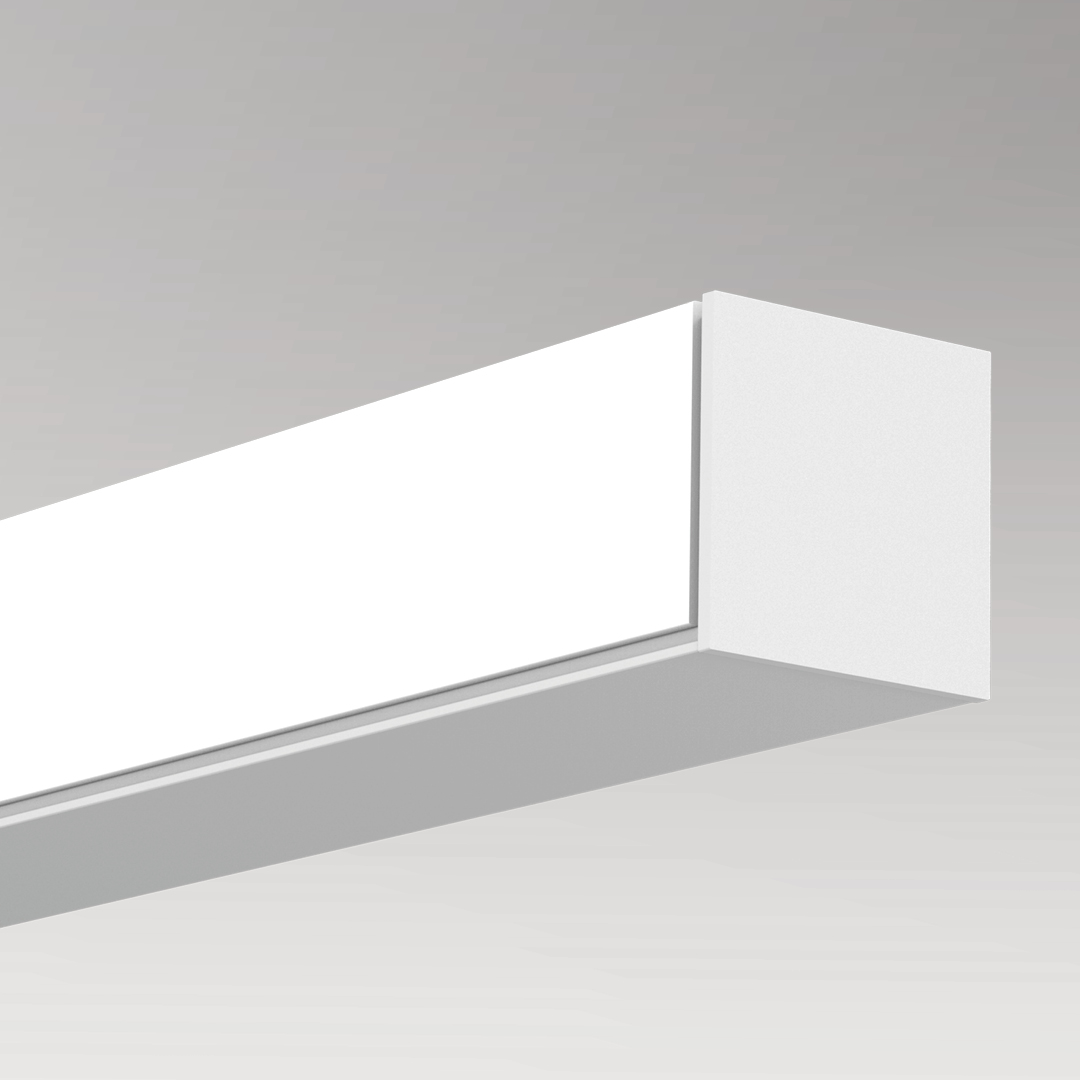

Cubito Wall
Indirect Light Distribution

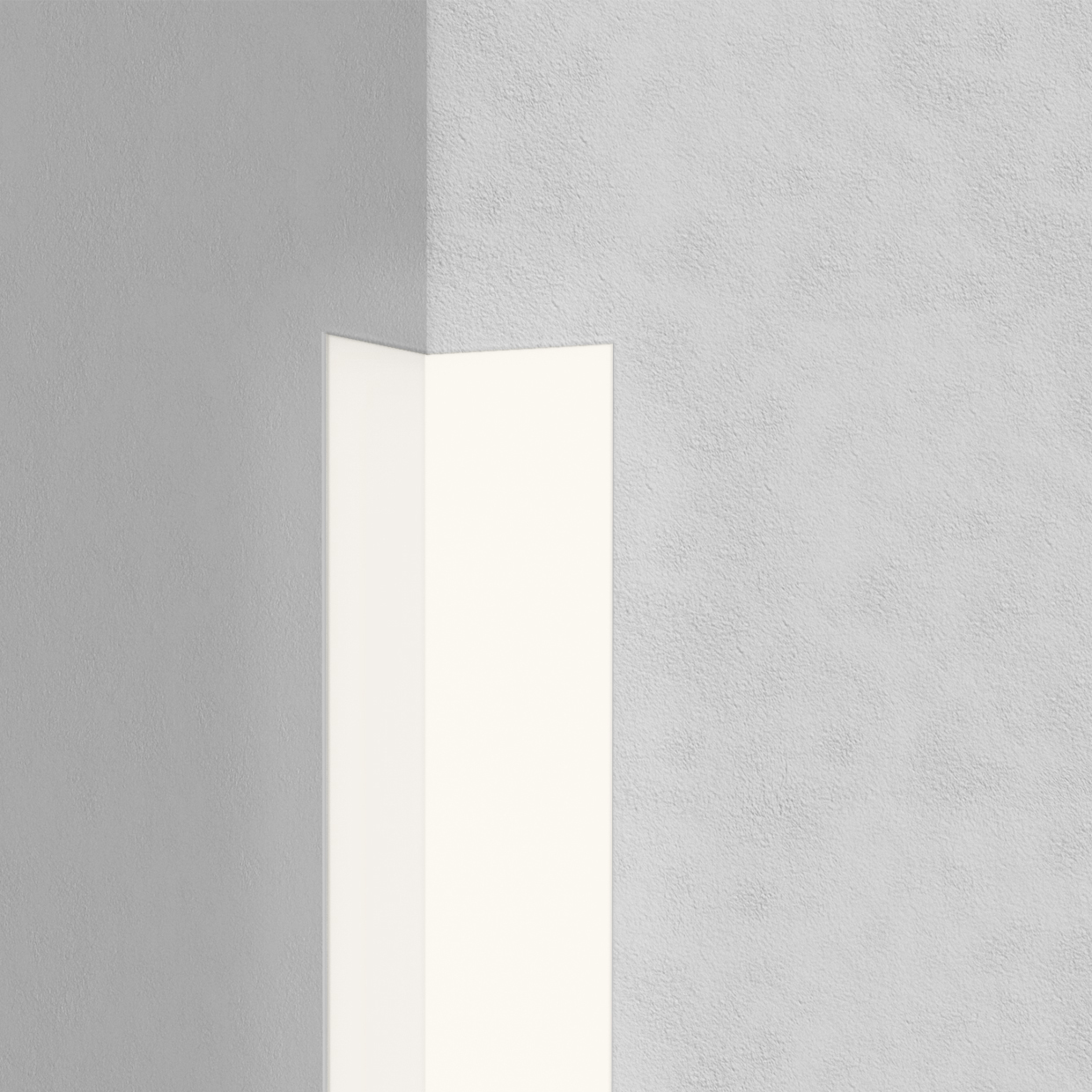

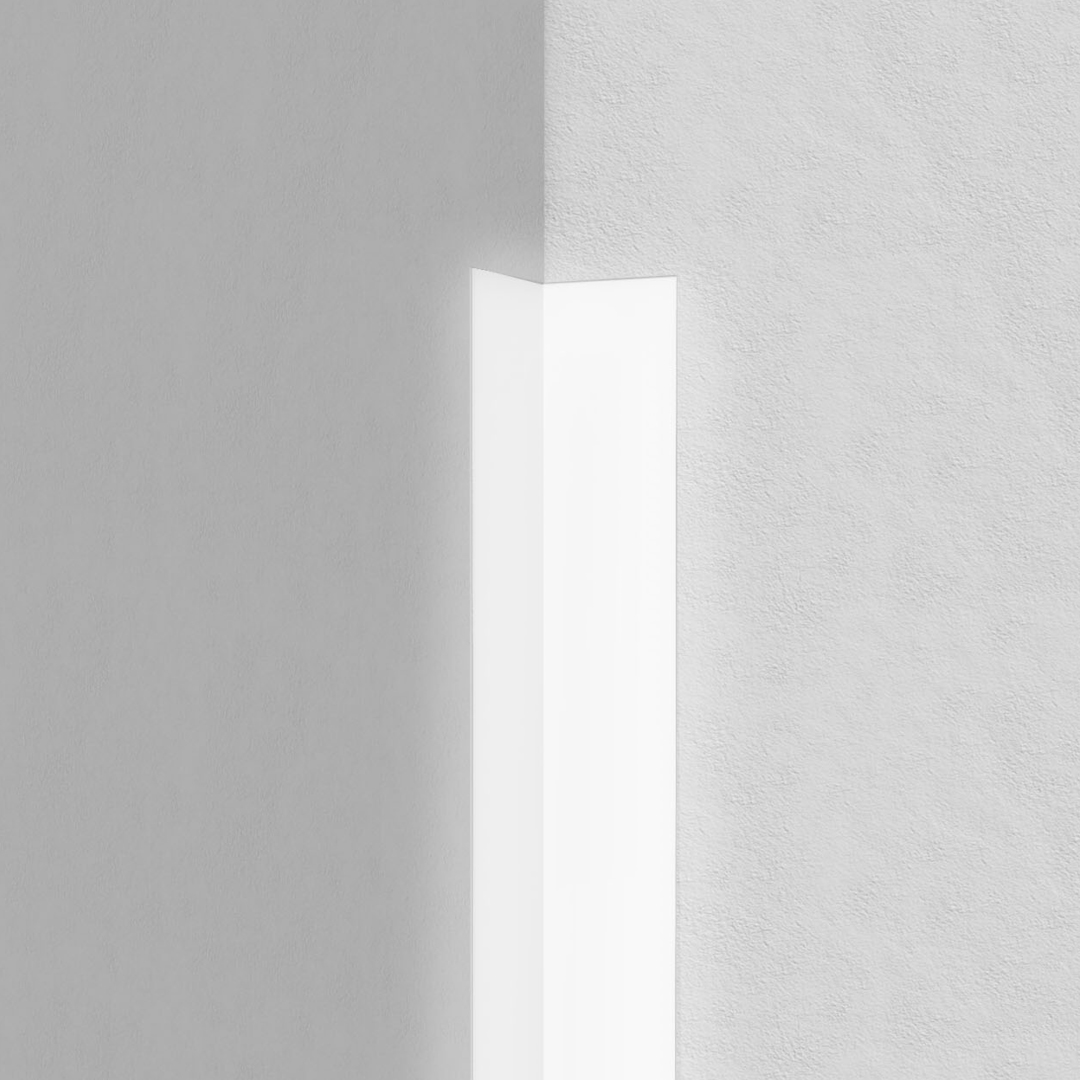

Cubito Recessed
Vertical Wall Recessed

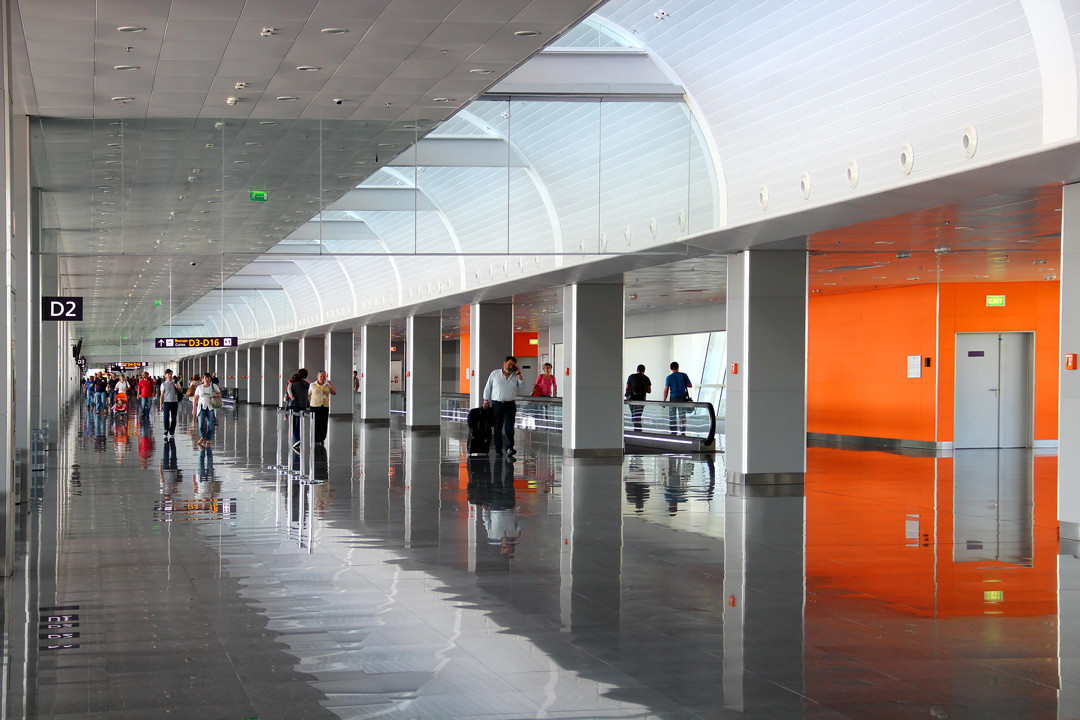

Inspiration Gallery
