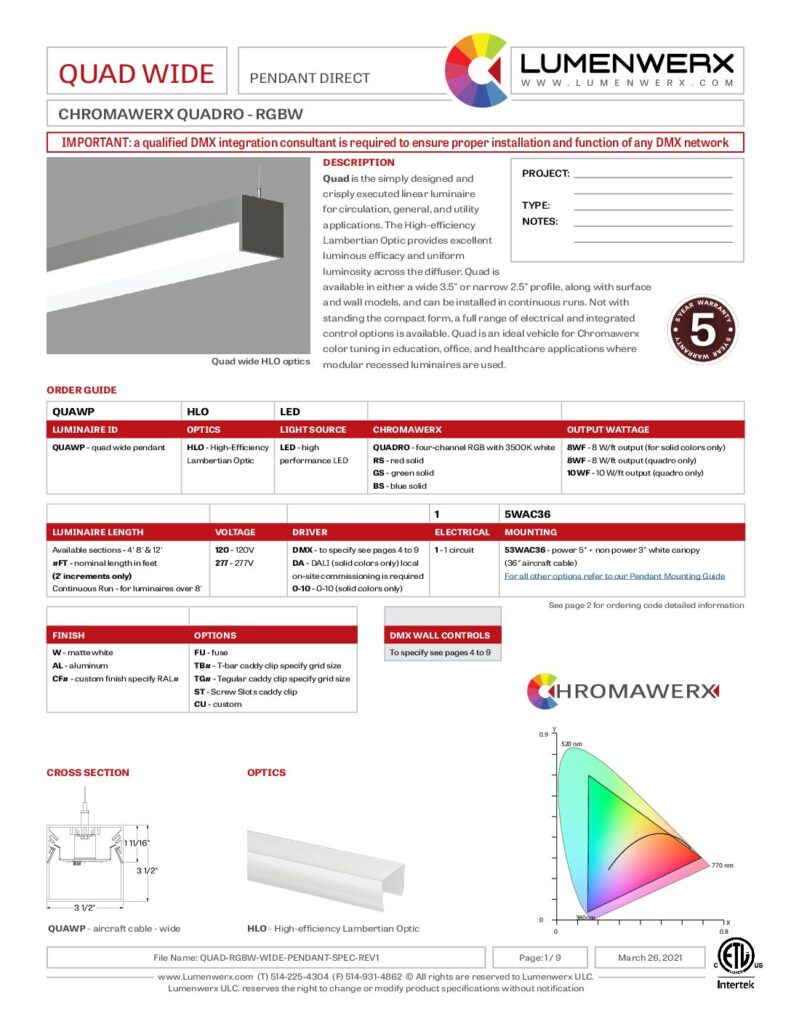

Quad
Direct

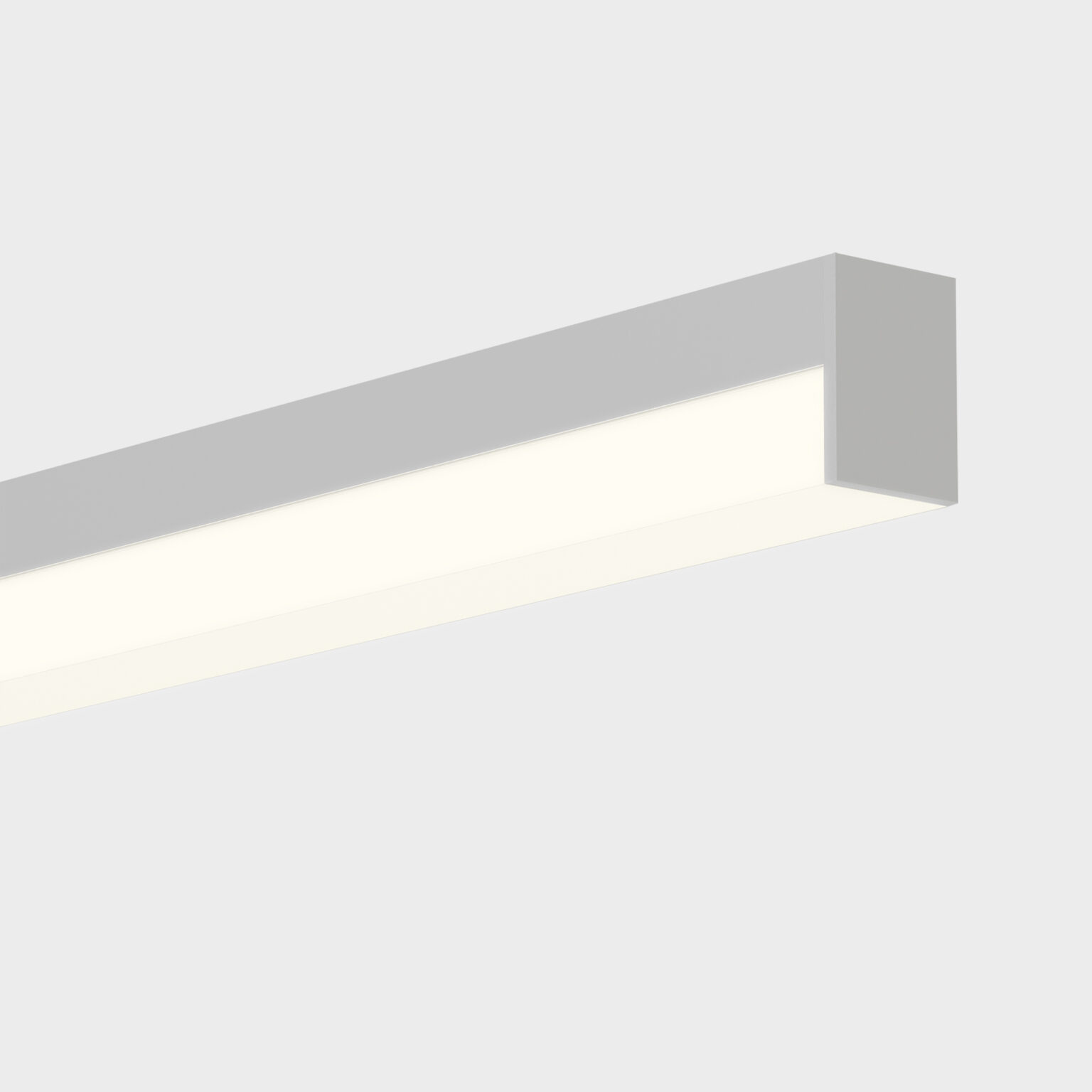

Quad is the simply designed and crisply executed linear luminaire for circulation, general, and utility applications. The High-Efficiency Lambertian Optic provides excellent luminous efficacy and uniform luminosity across the diffuser. Quad Narrow has a 2.5″ profile, along with surface and wall models, and can be installed in continuous runs. Notwithstanding the compact form, a full range of electrical and integrated control options are available.

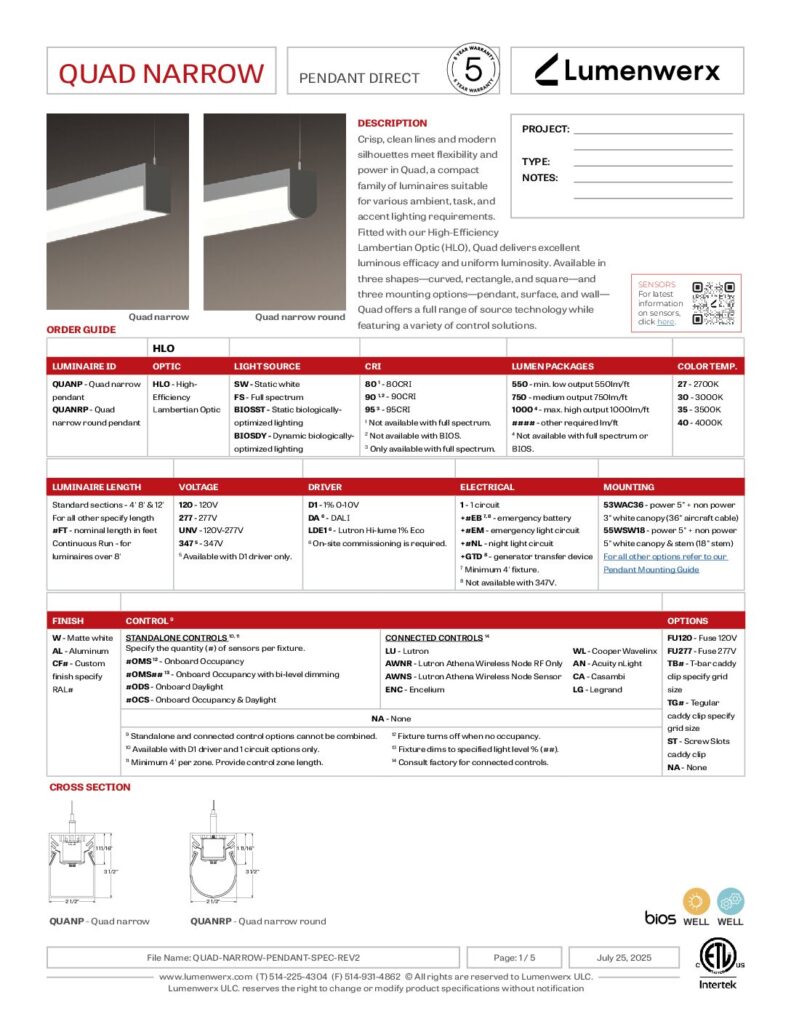

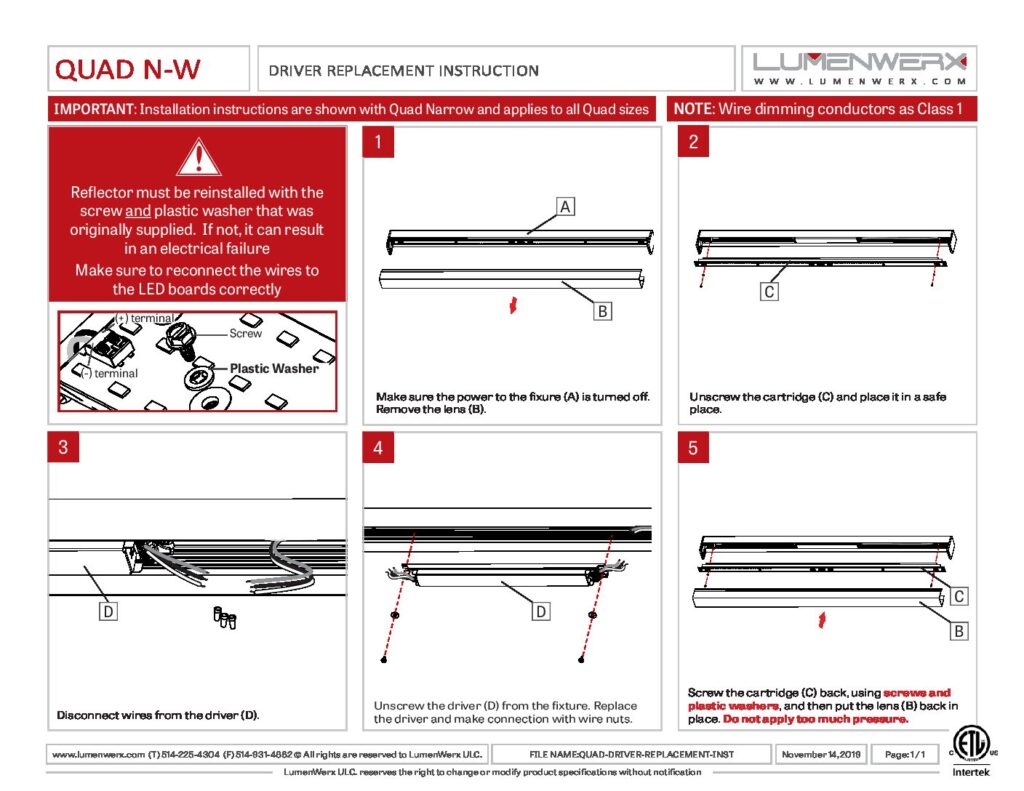

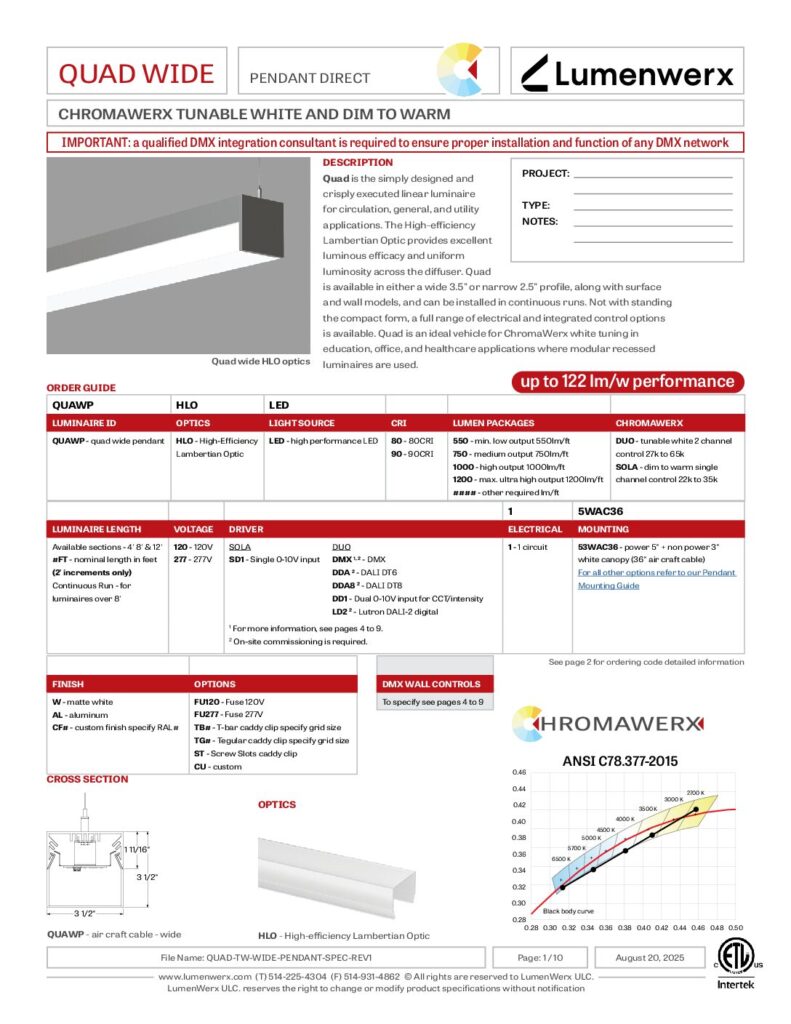

Product DownloadsSpecifications - Pendant
Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Quadro (RGBW), Sola (Dim to Warm) MountingPendant LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

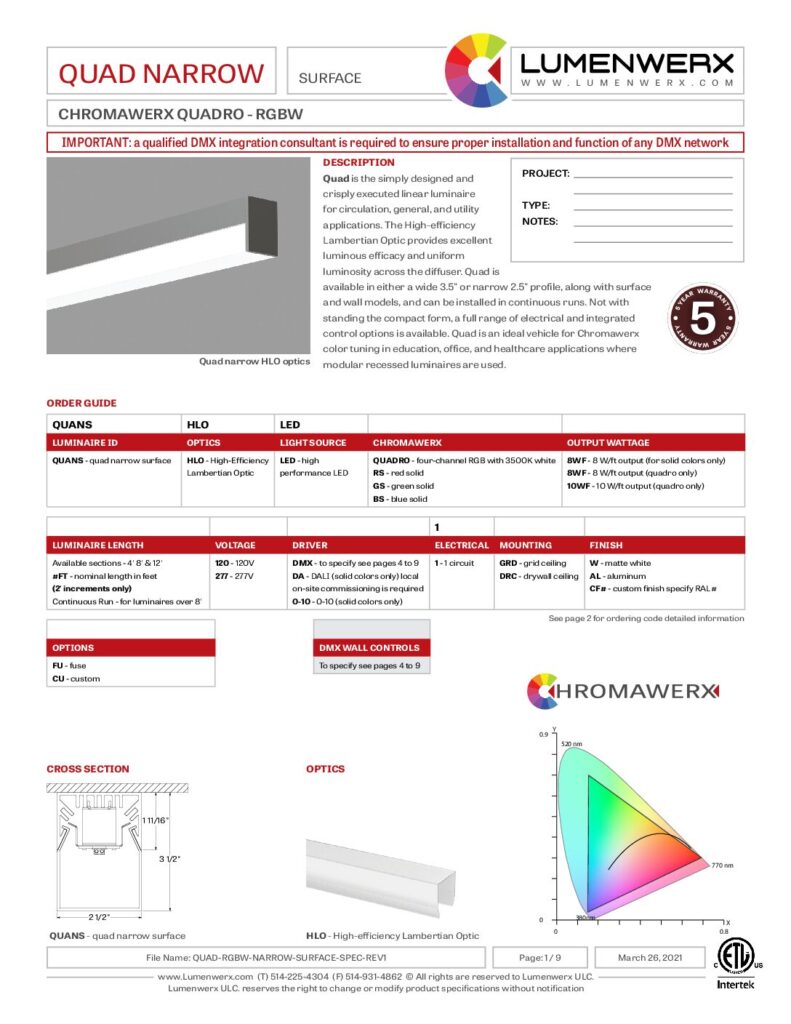

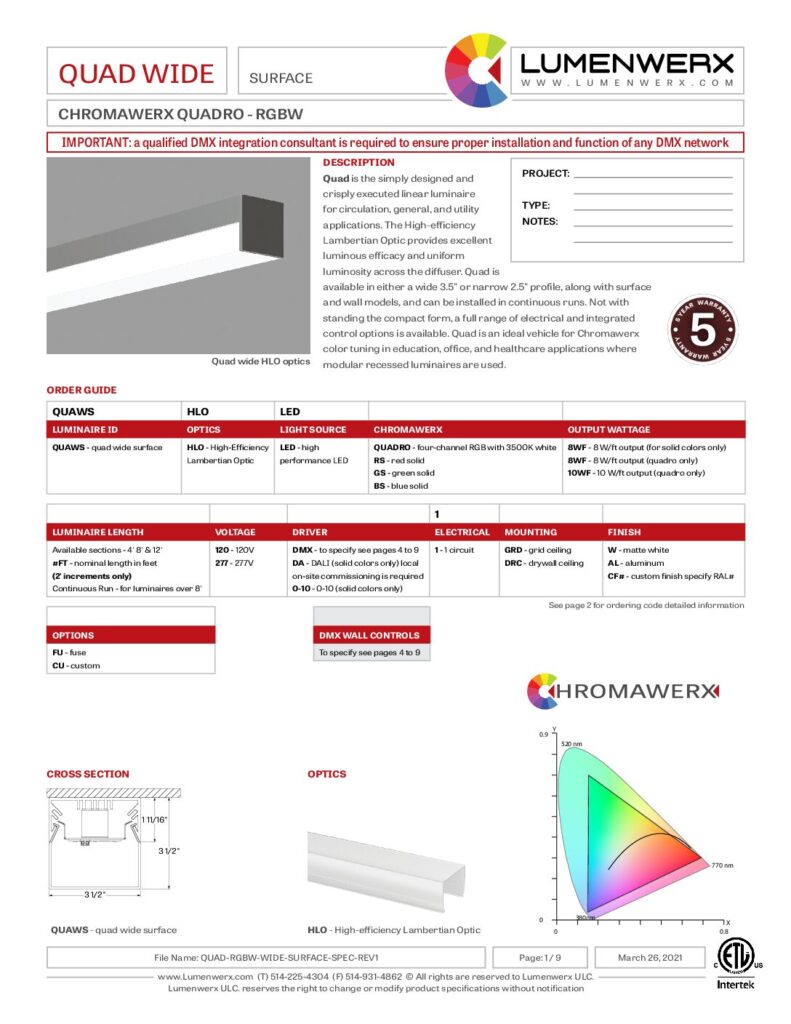

Quad
Direct
Quad is the simply designed and crisply executed linear luminaire for circulation, general, and utility applications. The High-Efficiency Lambertian Optic provides excellent luminous efficacy and uniform luminosity across the diffuser. Quad Narrow has a 2.5″ profile, along with surface and wall models, and can be installed in continuous runs. Notwithstanding the compact form, a full range of electrical and integrated control options are available.

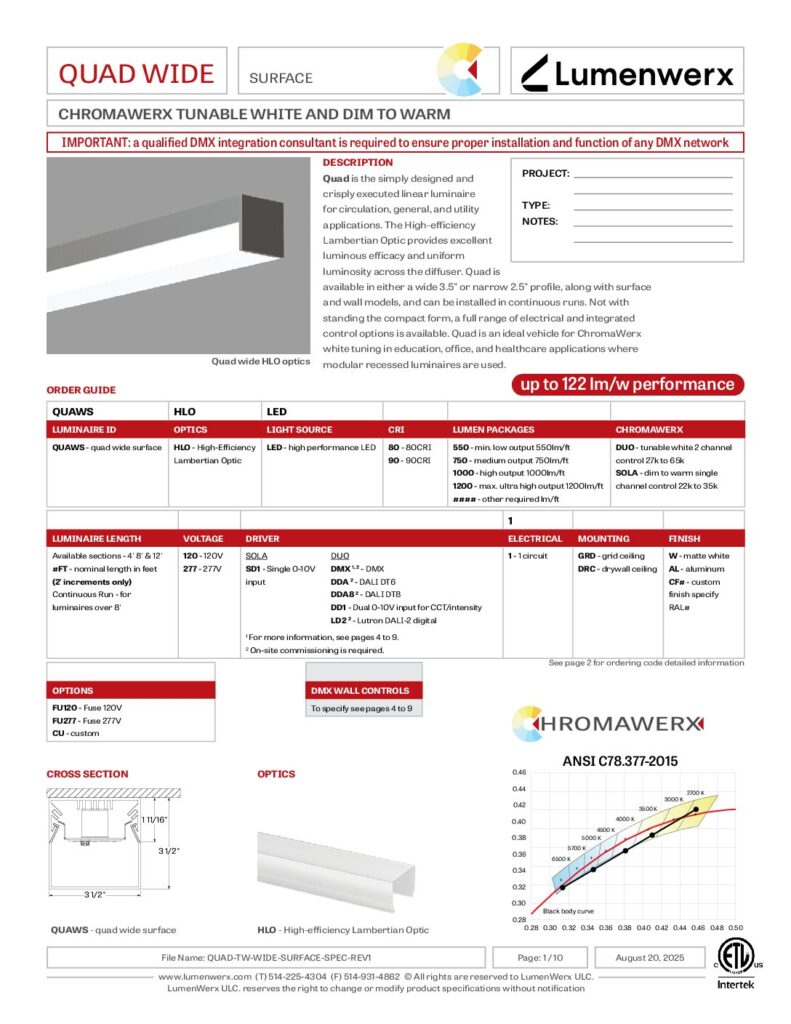

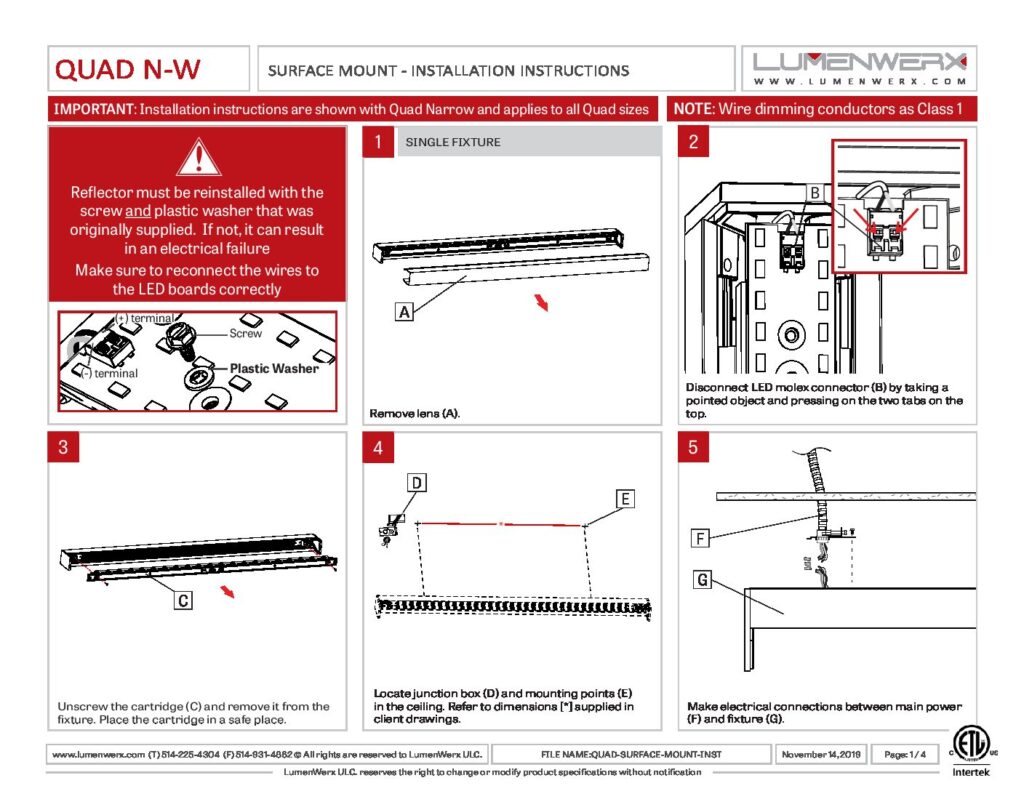

Product DownloadsSpecifications - Surface
Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Quadro (RGBW), Sola (Dim to Warm) MountingSurface LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

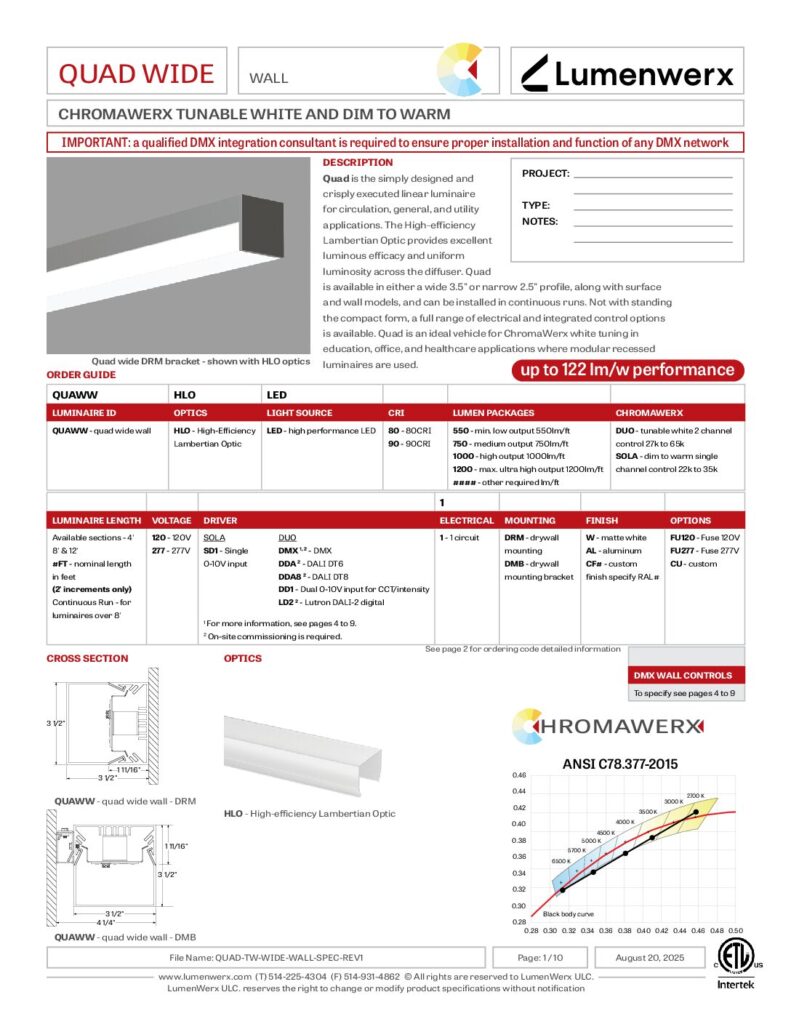

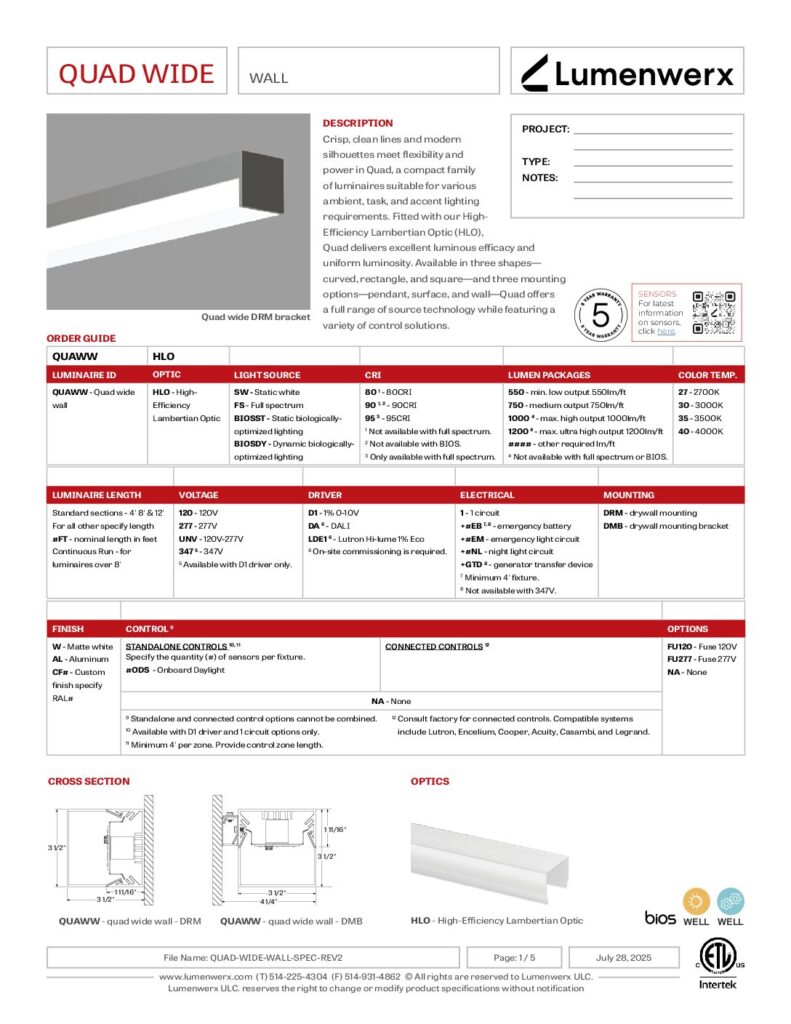

Quad
Direct
Quad is the simply designed and crisply executed linear luminaire for circulation, general, and utility applications. The High-Efficiency Lambertian Optic provides excellent luminous efficacy and uniform luminosity across the diffuser. Quad Narrow has a 2.5″ profile, along with surface and wall models, and can be installed in continuous runs. Notwithstanding the compact form, a full range of electrical and integrated control options are available.

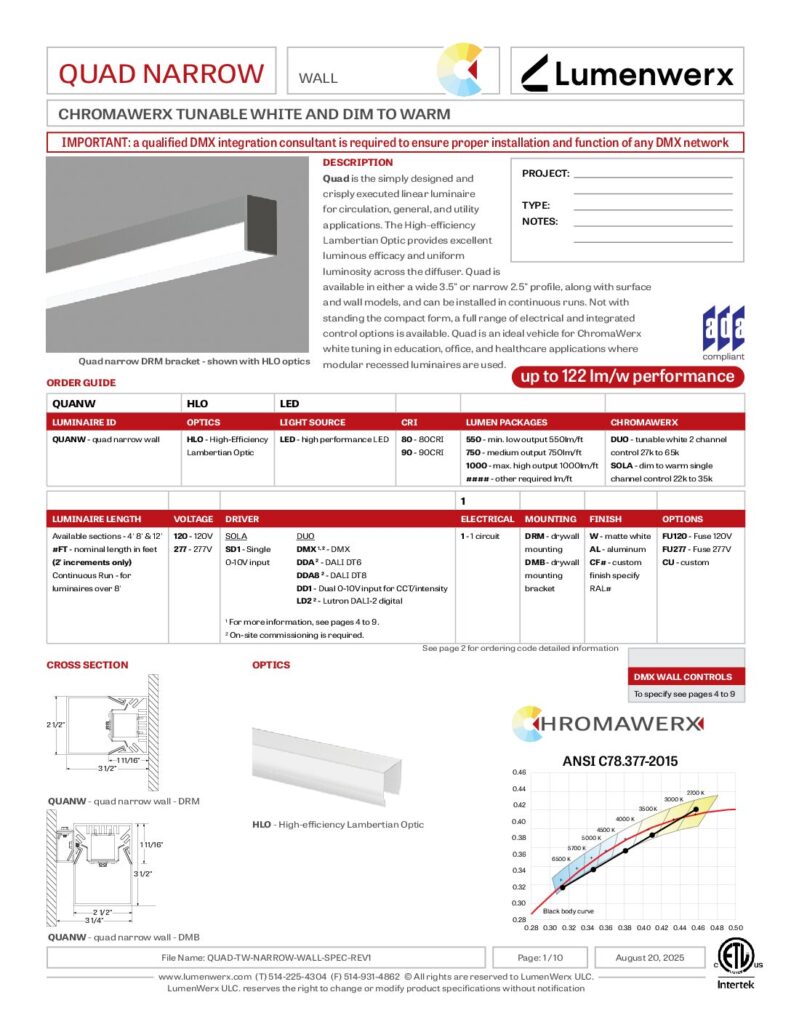

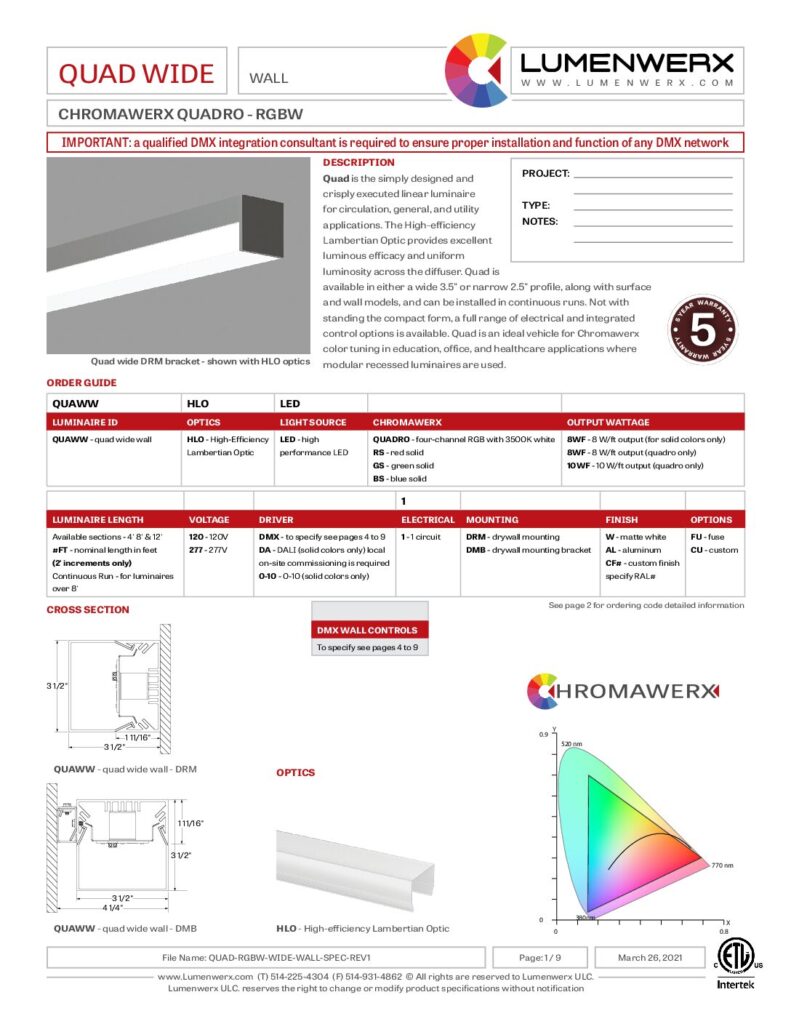

Product DownloadsSpecifications - Wall
Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Quadro (RGBW), Sola (Dim to Warm) MountingWall LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.

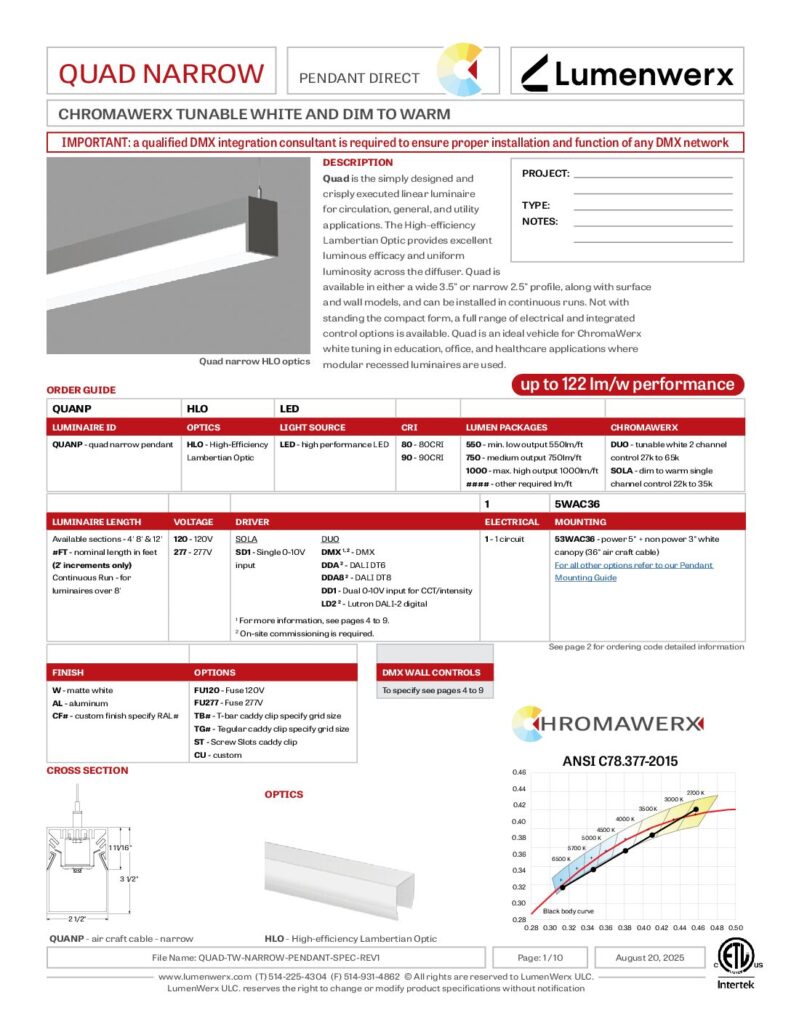

Quad
Direct
Quad is the simply designed and crisply executed linear luminaire for circulation, general, and utility applications. The High-Efficiency Lambertian Optic provides excellent luminous efficacy and uniform luminosity across the diffuser. Quad Narrow has a 2.5″ profile, along with surface and wall models, and can be installed in continuous runs. Notwithstanding the compact form, a full range of electrical and integrated control options are available.

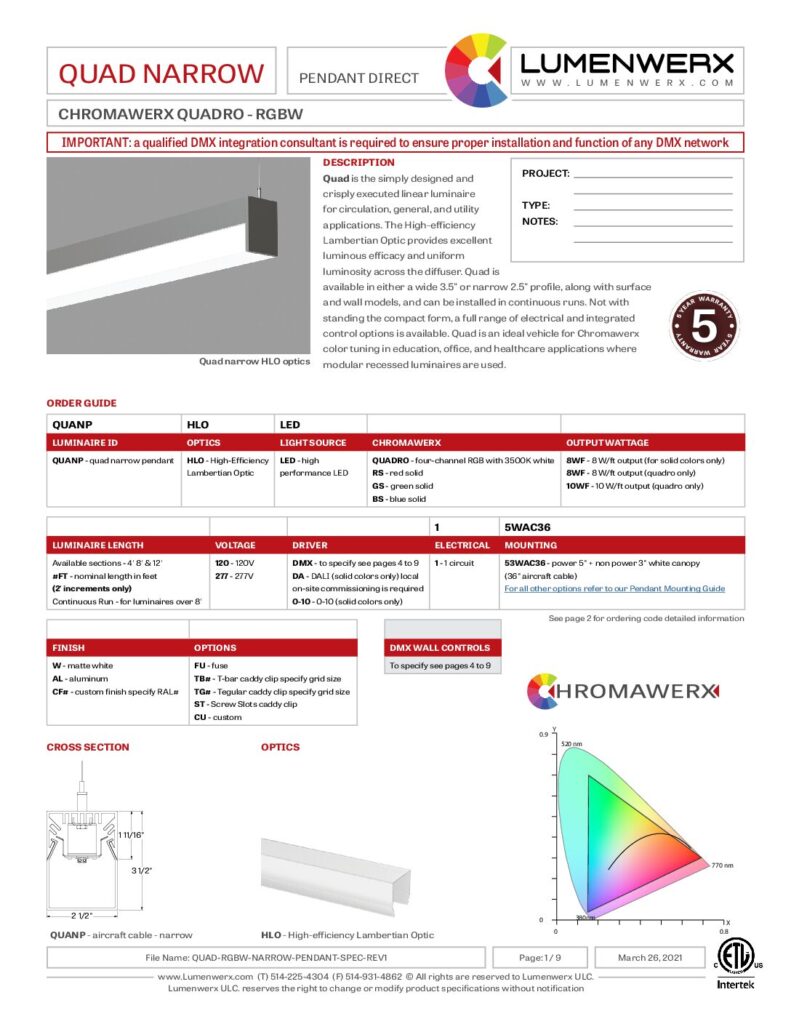

Product DownloadsSpecifications - Pendant
Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Quadro (RGBW), Sola (Dim to Warm) MountingPendant LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Quad
Direct
Quad is the simply designed and crisply executed linear luminaire for circulation, general, and utility applications. The High-Efficiency Lambertian Optic provides excellent luminous efficacy and uniform luminosity across the diffuser. Quad Narrow has a 2.5″ profile, along with surface and wall models, and can be installed in continuous runs. Notwithstanding the compact form, a full range of electrical and integrated control options are available.
Product DownloadsSpecifications - Surface
Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Quadro (RGBW), Sola (Dim to Warm) MountingSurface LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Quad
Direct
Quad is the simply designed and crisply executed linear luminaire for circulation, general, and utility applications. The High-Efficiency Lambertian Optic provides excellent luminous efficacy and uniform luminosity across the diffuser. Quad Narrow has a 2.5″ profile, along with surface and wall models, and can be installed in continuous runs. Notwithstanding the compact form, a full range of electrical and integrated control options are available.
Product DownloadsSpecifications - Wall
Product TypeLinear OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Quadro (RGBW), Sola (Dim to Warm) MountingWall LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
3 shapes:
curved, rectangle, square
1200 lm/ft
3 mounting options:
pendant, surface, wall
Shapes

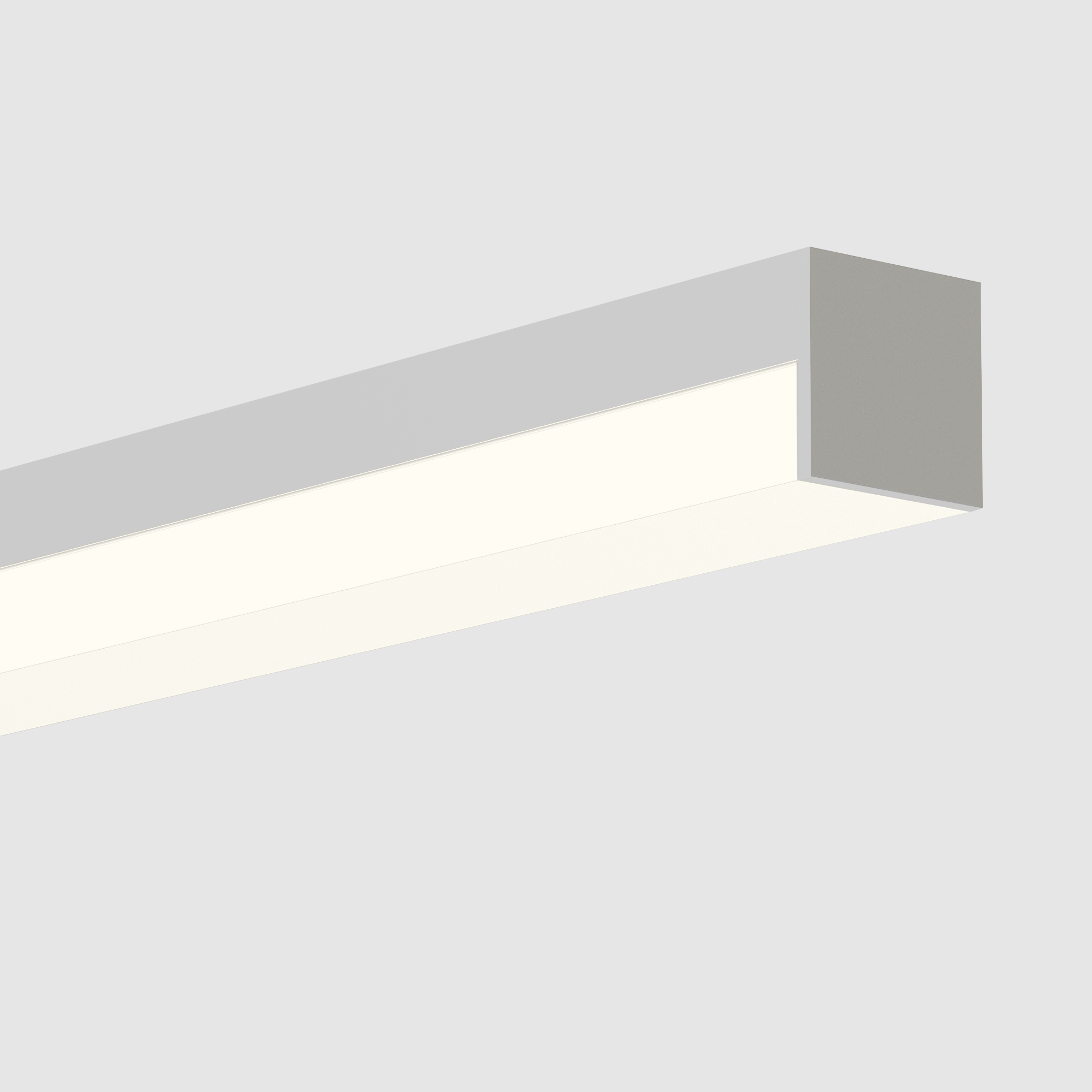

Wide
Narrow

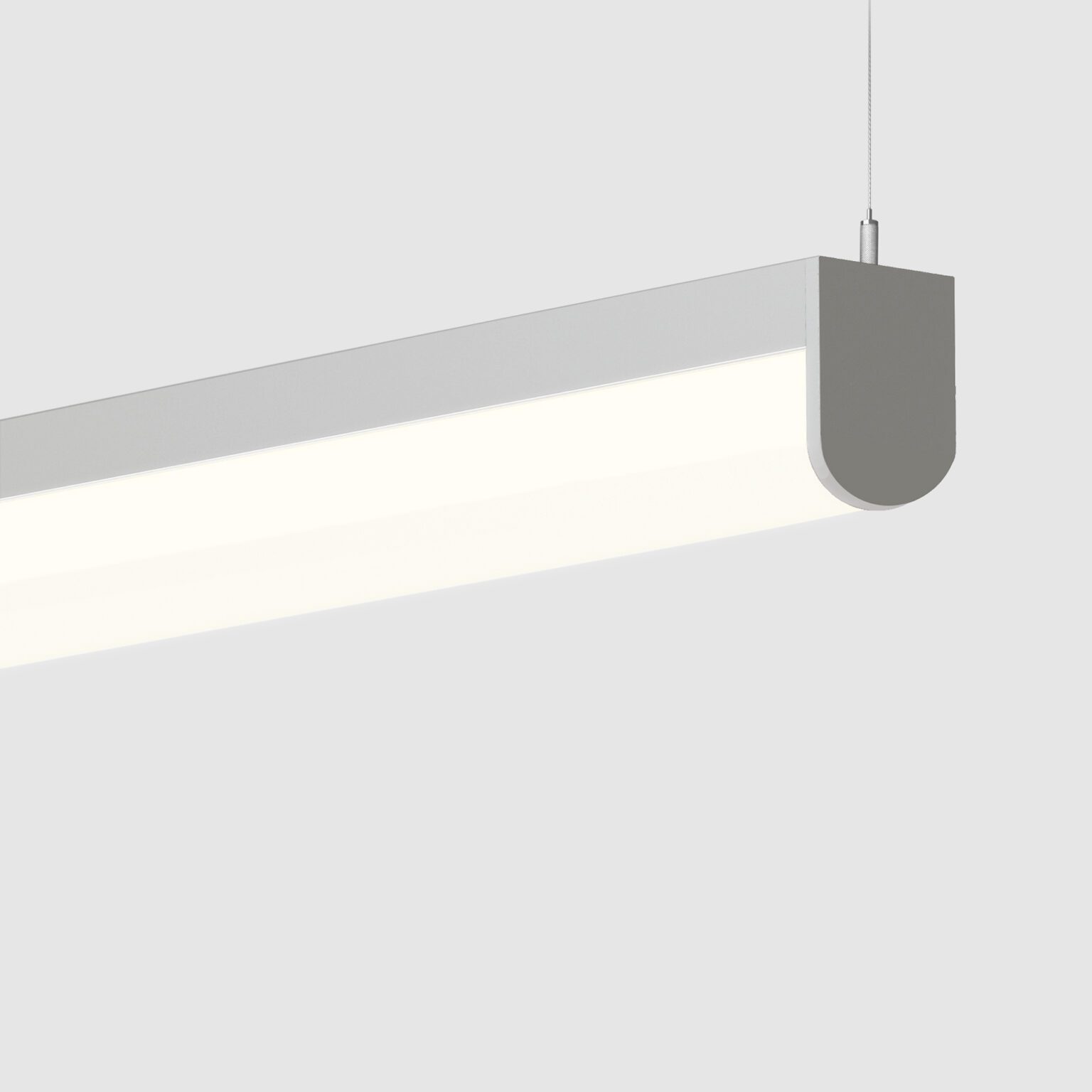

Narrow round
