Cura
Direct/Indirect
Cura offers multi-functional lighting with ambient, exam, reading, and night light illumination from the bedhead. Each lighting function can satisfy the illuminance recommendations of ANSI-IES RP29-16. Optional BIOS SkyBlue™ technology provides a biologically optimized light spectrum that supports both circadian stimulus and visual diagnosis. Cura’s compact and durable form, combined with multiple light sources and control options, makes this luminaire particularly well suited to today’s healthcare patient rooms. Cura is also available with ChromaWerx DUO and SOLA capability.

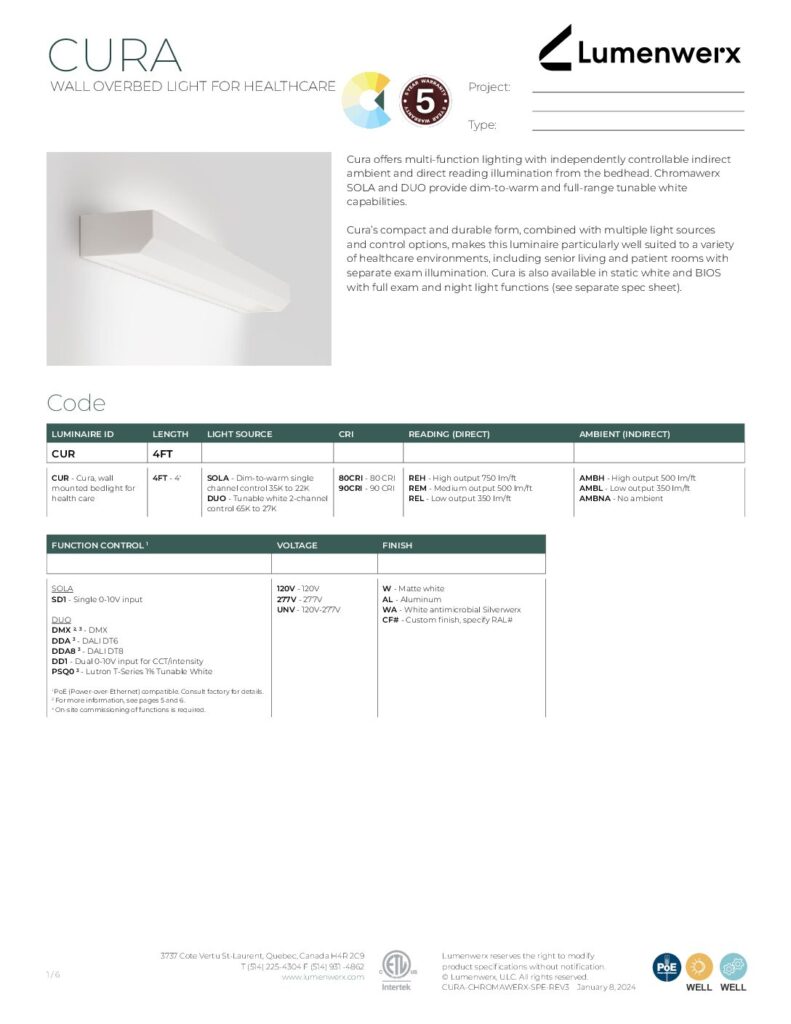

Product DownloadsSpecifications - Wall
Product TypesLinear, Healthcare, IP-rated OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Sola (Dim to Warm) MountingWall Distribution TypeDirect/Indirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Performance & Durability
With no visible light source, L EDs are hidden inside Cura , offering the low glare associated with high quality bedside lighting. Maintain a comfortable, practice al light from head to toe.
- 9600 maximum lumen output
- Up to 95 lm/W efficacy
- < 10 UGR (Unified Glare Rating)
- L90 at > 60,000hrs
- ANSI-IES RP 29-16 compliance
| Function | Lumen Output | Avg. Illuminance (fc) | Uniformity (Avg:Min) |
|---|---|---|---|
| Ambient | 4200 lm | 14 fc | 2.19:1 |
| Exam | 9600 lm | 110 fc | 2.41:1 |
| Reading | 2800 lm | 65 fc | 1.71:1 |
Multi-mode
functions
Easy-to-clean unit
with antimicrobial finish
Multiple control
options
Durability
- Compact profile: 5″ W x 2 25/32″ H in either 38″ or 50″ overall length
- Die installation: spring-loaded hinges for streamlined installation and maintenance
- Die cast end caps: for added durability in high-traffic areas
- Silverwerx powder coating: facilitates easy cleaning and infectious disease control
