Rize
Direct

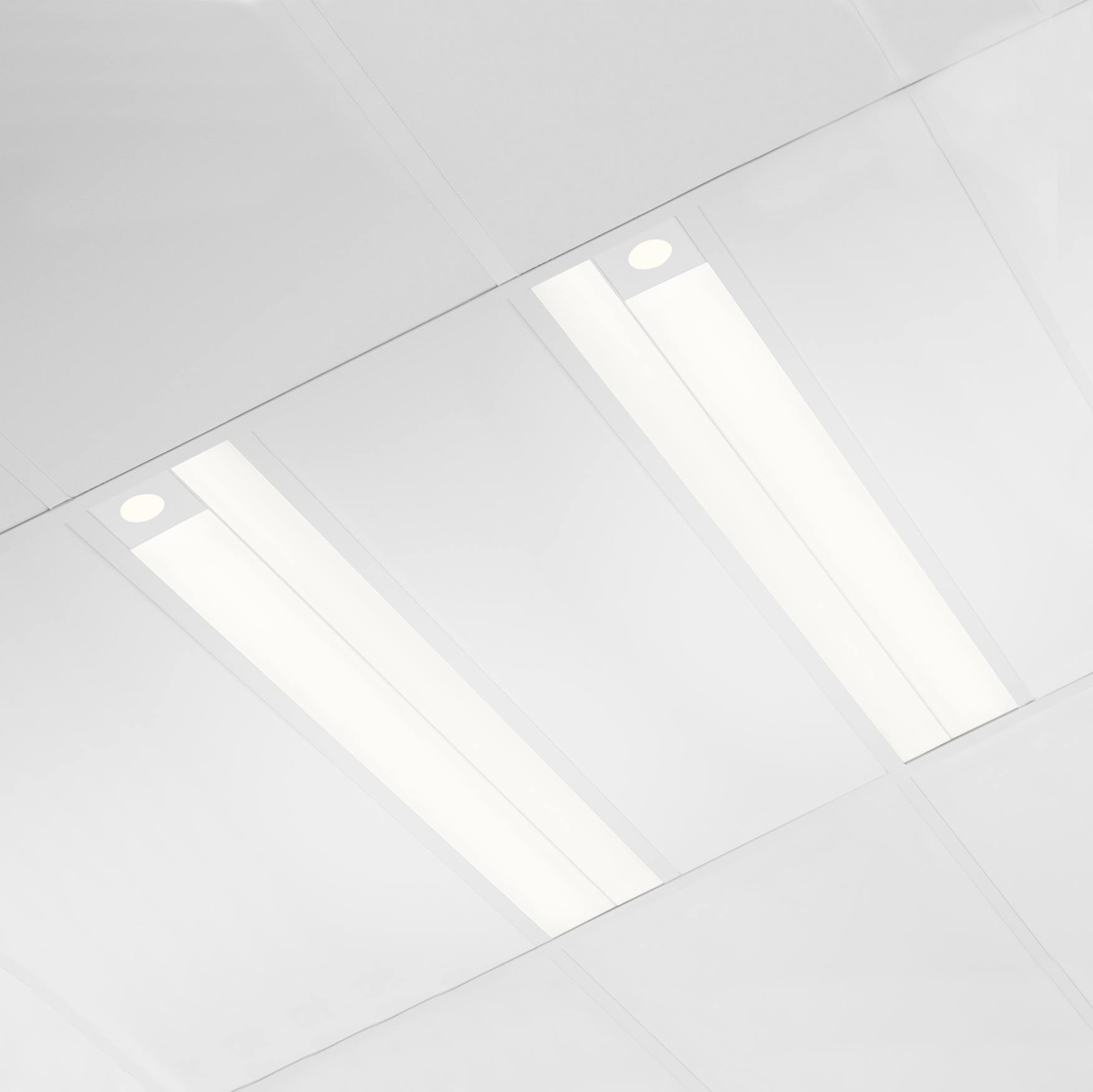

Rize offers multi-function lighting with ambient, exam, and reading illumination from a pair of recessed luminaires. The pair of Rize luminaires operate in a master and satellite configuration. Each lighting function can satisfy the illuminance recommendations of ANSI-IES RP29-16. Optional BIOS SkyBlue™ technology provides a biologically optimized light spectrum that supports both circadian stimulus and visual diagnosis. The compact and durable construction, combined with multiple light sources and control options make Rize particularly well suited to today’s healthcare patient rooms. Rize is also available with ChromaWerx DUO and SOLA capabilities.

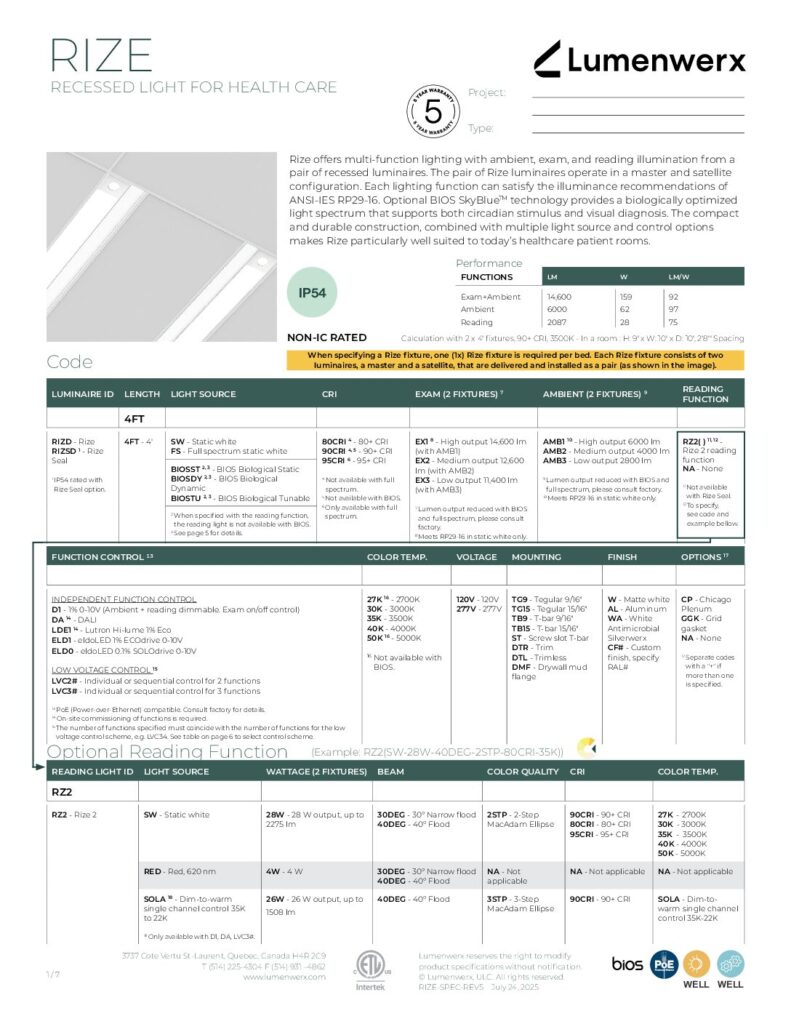

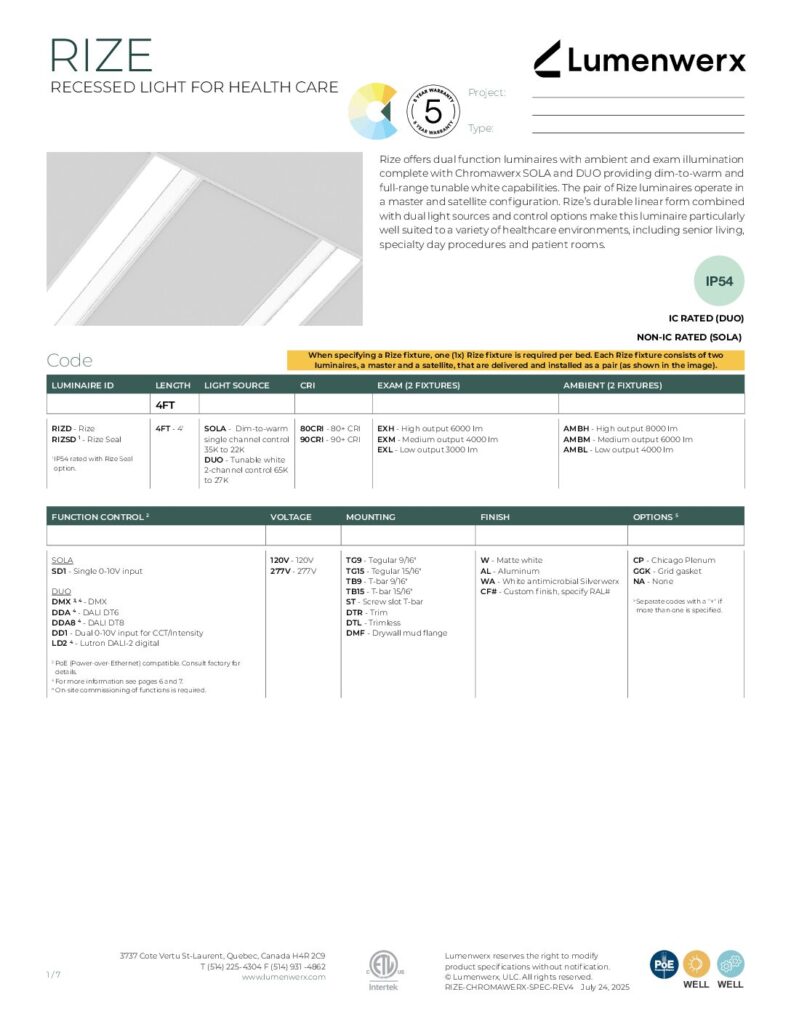

Product DownloadsSpecifications - Recessed
Product TypesLinear, Healthcare, IP-rated OpticHLO CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Sola (Dim to Warm) MountingRecessed Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
Optical Flexibility
- Ambient: For routine monitoring, indirect ambient illumination is available in a range of programmable outputs in order to deliver comfortable lighting at the bedside.
- Exam: Wall switch-activated exam lighting offers direct and indirect illumination with an average illuminance of 110 fc on the bed.
- Reading: Let patients read in comfort with direct reading illumination that can be specified in a range of programmable outputs (Avg. 40 fc vertical) Deep shielding offers an ideal UGR of 10 for optimized visual comfort.
- Night Light: Discrete, indirect night light illumination, without source visibility, can be programmed to minimize the impact on circadian rhythms or for night-time observation. (Available in white or amber.)
-
- Ambient
-
- Night Light

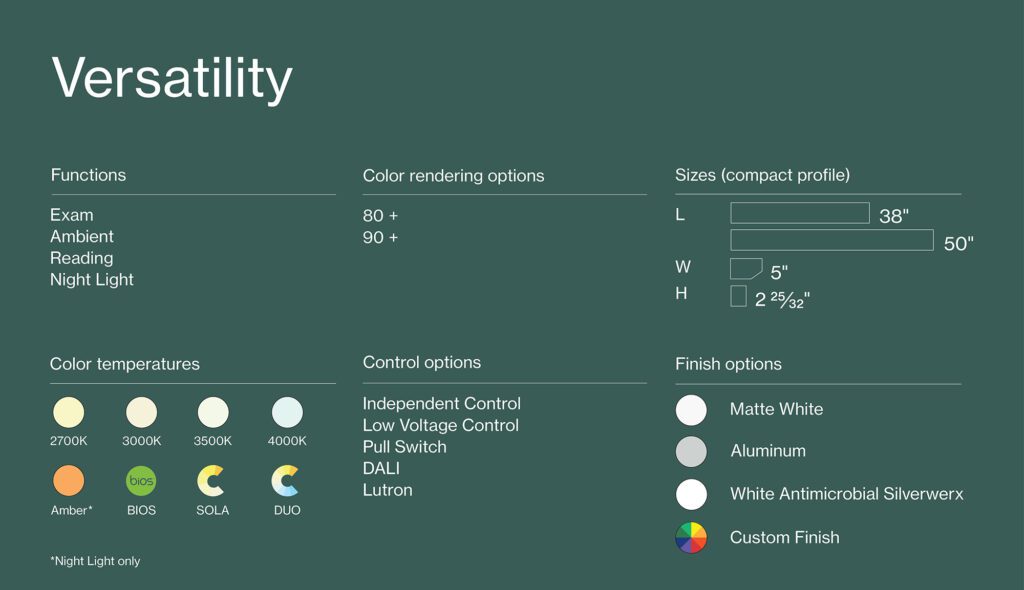

Versatility
Performance & Durability
With no visible light source, L EDs are hidden inside Cura , offering the low glare associated with high quality bedside lighting. Maintain a comfortable, practice al light from head to toe.
- 9600 maximum lumen output
- Up to 95 lm/W efficacy
- < 10 UGR (Unified Glare Rating)
- L90 at > 60,000hrs
- ANSI-IES RP 29-16 compliance
| Function | Lumen Output | Avg. Illuminance (fc) | Uniformity (Avg:Min) |
|---|---|---|---|
| Ambient | 4200 lm | 14 fc | 2.19:1 |
| Exam | 9600 lm | 110 fc | 2.41:1 |
| Reading | 2800 lm | 65 fc | 1.71:1 |
Fully gasketed option
Control-ready for
any system
Control-ready for
any system
Durability
-

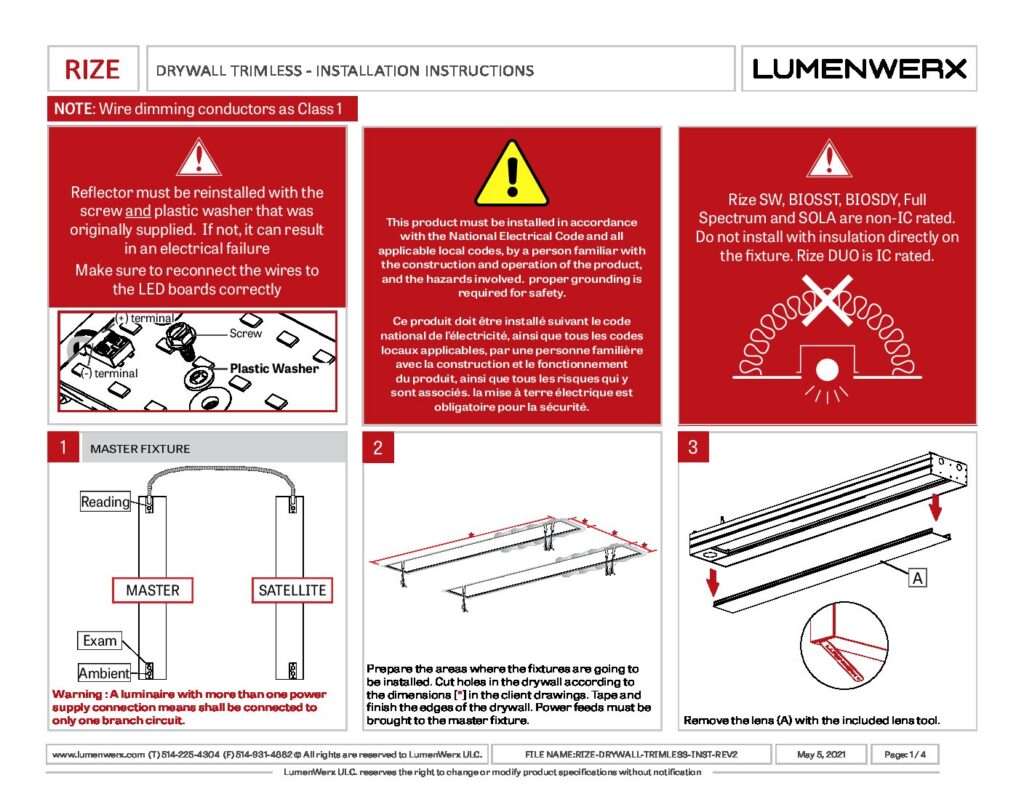

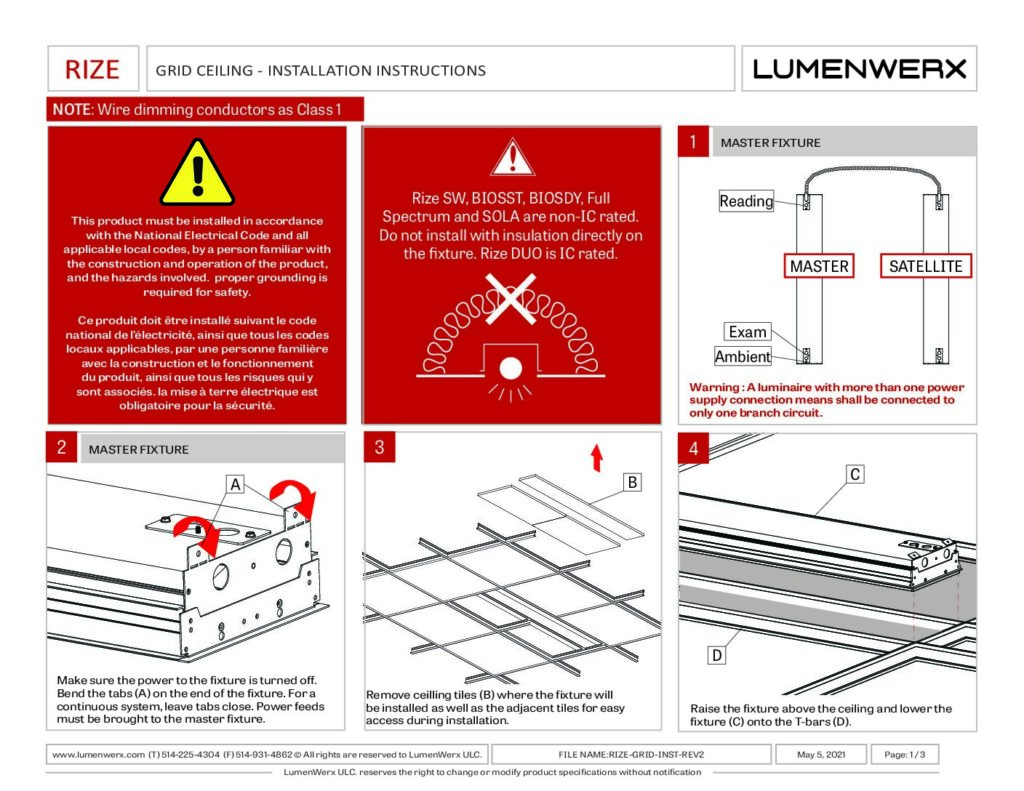

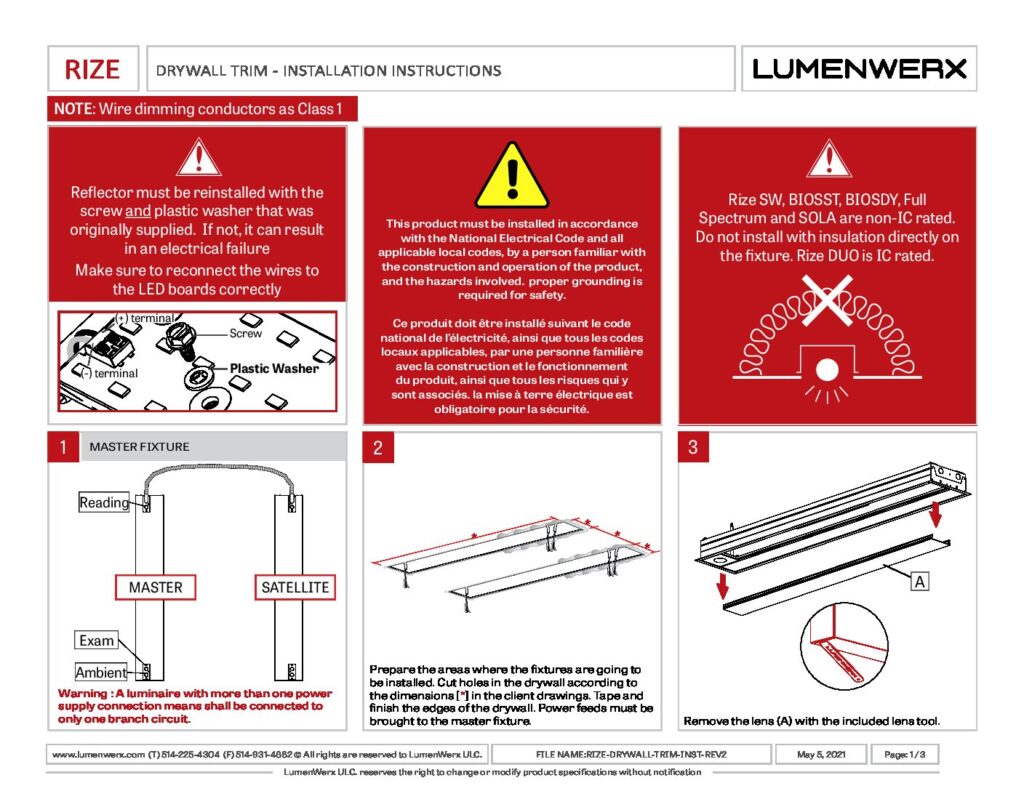

Simple installation. Fits easily in a variety of T-bar, drywall trimmed or trimless applications
-
Shallow plenum solution. Recesses into the ceiling to suit low plenum space as the luminaire is only 3 inches in height.
-
Smooth surfaces with antimicrobial finish, allowing for gentle cleaning.
-
Durable construction. Rugged extruded aluminum construction with up to three light compartments to allow excellent performance without compromising quality.

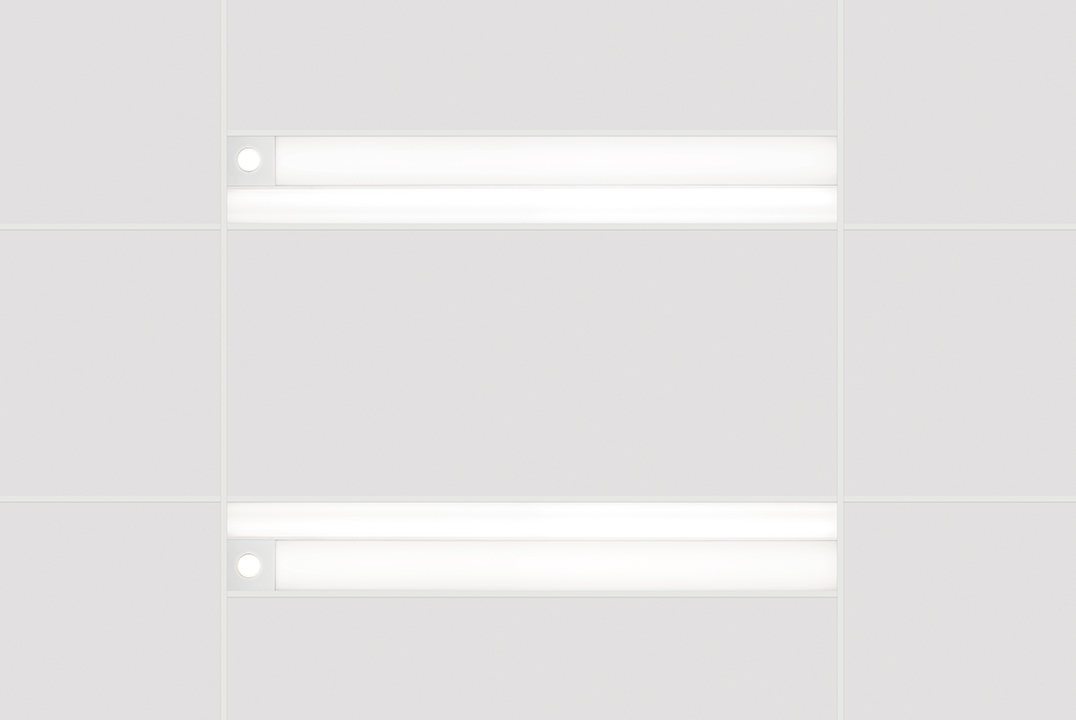

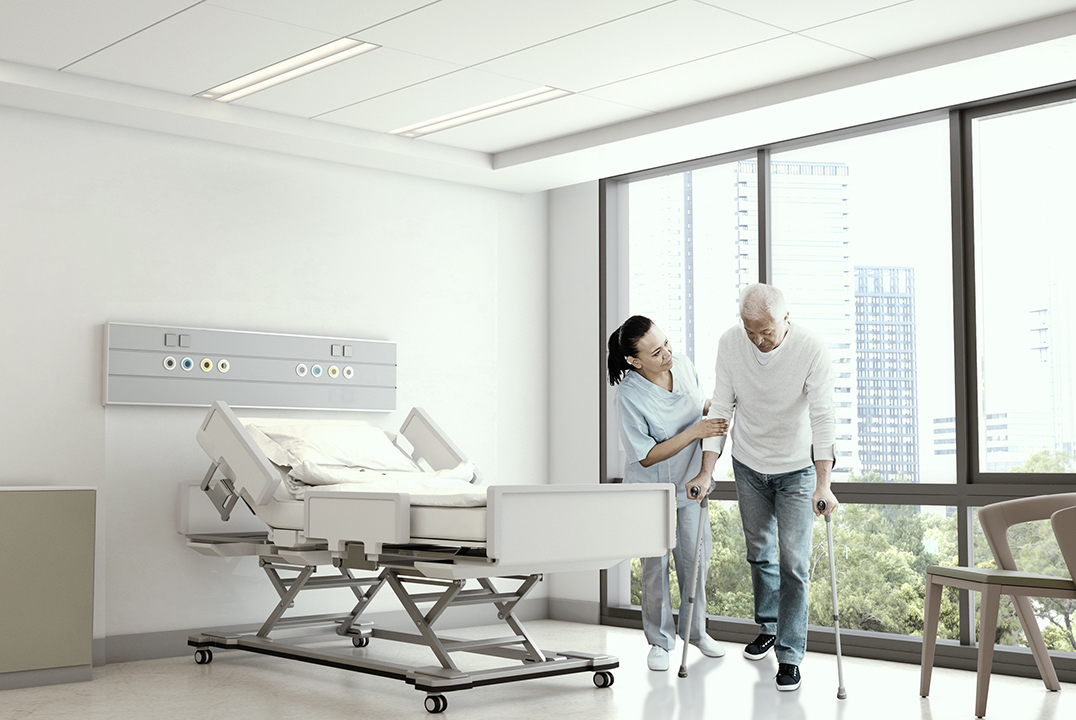

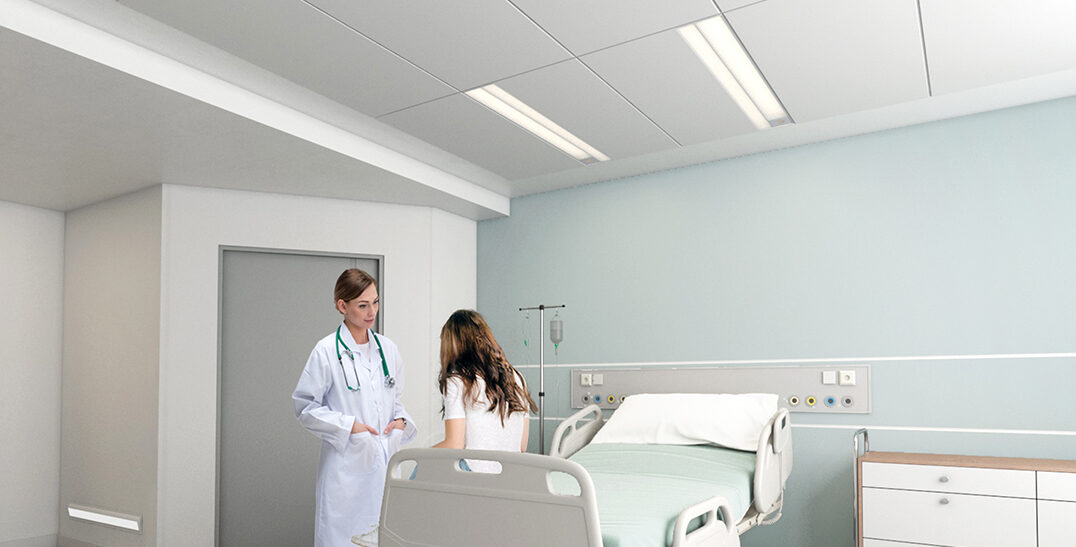

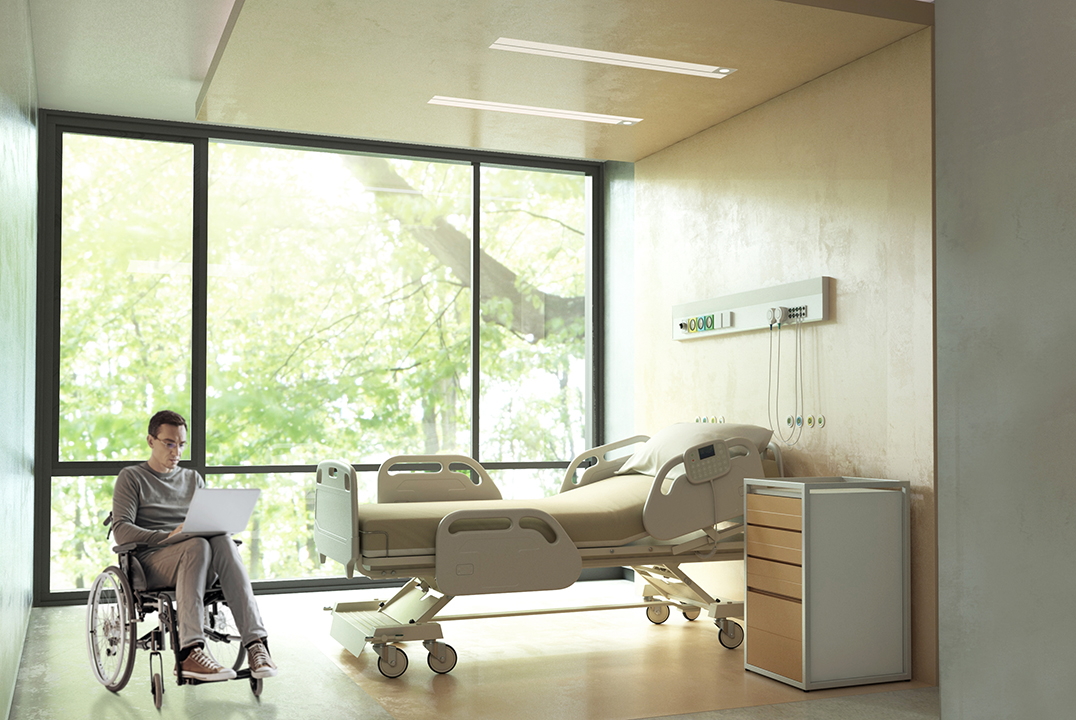

Inspiration Gallery
