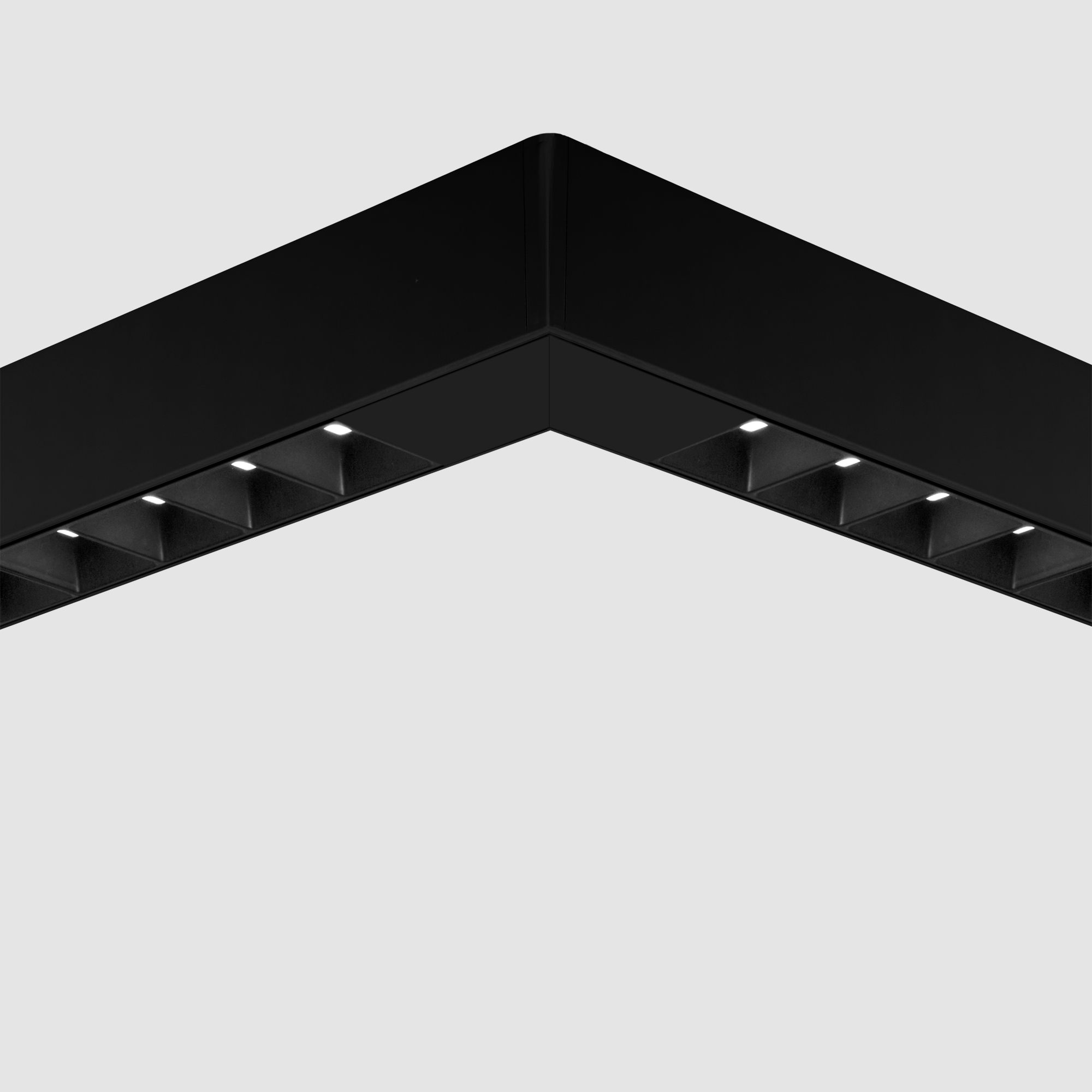

Ubik Combination
Direct, Direct/Indirect
Sleek square form meets superb function in Ubik, a lighting family designed to provide a multitude of creative options. With the Ubik Combination pendant luminaire, you can combine different optics and create patterns with corners to further enhance your lighting design. These compact 2” wide pendant fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination. For indirect, you can select wide-spread or translucent optics.
- Up to 1600 lm/ft
- Low glare with a UGR of 6
- 145 lm/W (HLO)
- Optical flexibility with parabolic louvers, HLO, wall wash or blanks
Specifications - Pattern Pendant
Product TypesLinear, Low UGR, Pattern OpticsHLO, MBPL, MSPL, MWPL, TIO, WIO2, WWB, WWS, WWW CCT/Light & ColorStatic White MountingPendant Distribution TypeDirect, Direct/Indirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
MBPL
Matte Black Parabolic Louver
MSPL
Matte Silver Parabolic Louver
MWPL
Matte White Parabolic Louver
TIO
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array that has a translucent lens to mask pixilation from the diodes. TIO has a 100° spread in the indirect that is ideal when the fixture is mounted farther away from the ceiling.
WIO2
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
WWB
Wall Wash Black Optic
WWS
Wall Wash Silver Optic
WWW
Wall Wash White Optic
Parabolic louvers
Parabolic louvers provides excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and is 2″x2″ in size. The LED array is secured in the direct position, with the light transmitting through a beam-forming lens creating a conical distribution. Three matte (MPL) finishes are available in black, white and silver, offering a soft appearance, a wide beam spread of up 85-91 degrees, gentle brightness transition at cut-off, and exceptional UGR.
Wall Wash
Ubik wall wash is an offset horizontal linear LED array that reflects from a matte white internal side kicking reflector. It then transmits through the beam-forming lens and then softened by a 2″ asymmetric louver. The lens is fully illuminated, and the wall wash is only slightly angled to complement the direct optic.
WELL Building
Ubik collection meets the WELL building standard for UGR of <19 in all available lumen packages.
UP Technology
For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology
Ubik Combination
Direct, Direct/Indirect
Sleek square form meets superb function in Ubik, a lighting family designed to provide a multitude of creative options. With the Ubik Combination pendant luminaire, you can combine different optics and create patterns with corners to further enhance your lighting design. These compact 2” wide pendant fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination. For indirect, you can select wide-spread or translucent optics.
- Up to 1600 lm/ft
- Low glare with a UGR of 6
- 145 lm/W (HLO)
- Optical flexibility with parabolic louvers, HLO, wall wash or blanks
Specifications - Pendant
Product TypesLinear, Low UGR OpticsHLO, MBPL, MSPL, MWPL, TIO, WIO2, WWB, WWS, WWW CCT/Light & ColorStatic White MountingPendant Distribution TypeDirect, Direct/Indirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
MBPL
Matte Black Parabolic Louver
MSPL
Matte Silver Parabolic Louver
MWPL
Matte White Parabolic Louver
TIO
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array that has a translucent lens to mask pixilation from the diodes. TIO has a 100° spread in the indirect that is ideal when the fixture is mounted farther away from the ceiling.
WIO2
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
WWB
Wall Wash Black Optic
WWS
Wall Wash Silver Optic
WWW
Wall Wash White Optic
Parabolic louvers
Parabolic louvers provides excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and is 2″x2″ in size. The LED array is secured in the direct position, with the light transmitting through a beam-forming lens creating a conical distribution. Three matte (MPL) finishes are available in black, white and silver, offering a soft appearance, a wide beam spread of up 85-91 degrees, gentle brightness transition at cut-off, and exceptional UGR.
Wall Wash
Ubik wall wash is an offset horizontal linear LED array that reflects from a matte white internal side kicking reflector. It then transmits through the beam-forming lens and then softened by a 2″ asymmetric louver. The lens is fully illuminated, and the wall wash is only slightly angled to complement the direct optic.
WELL Building
Ubik collection meets the WELL building standard for UGR of <19 in all available lumen packages.
UP Technology
For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology
Ubik Combination
Direct, Direct/Indirect
Sleek square form meets superb function in Ubik, a lighting family designed to provide a multitude of creative options. With the Ubik Combination pendant luminaire, you can combine different optics and create patterns with corners to further enhance your lighting design. These compact 2” wide pendant fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination. For indirect, you can select wide-spread or translucent optics.
- Up to 1600 lm/ft
- Low glare with a UGR of 6
- 145 lm/W (HLO)
- Optical flexibility with parabolic louvers, HLO, wall wash or blanks

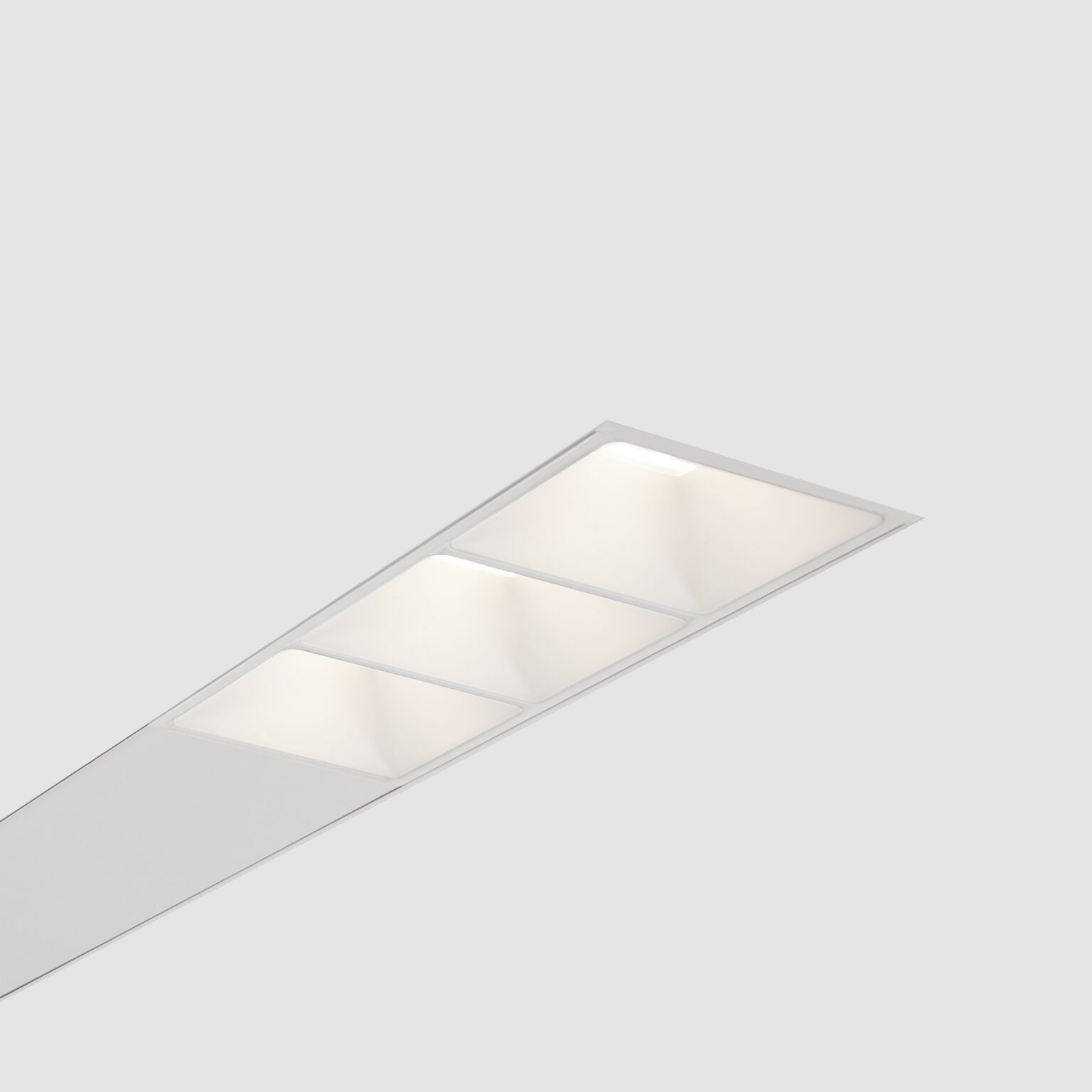

Specifications - Recessed
Product TypesLinear, Low UGR OpticsHLO, MBPL, MSPL, MWPL, TIO, WIO2, WWB, WWS, WWW CCT/Light & ColorStatic White MountingRecessed Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
MBPL
Matte Black Parabolic Louver
MSPL
Matte Silver Parabolic Louver
MWPL
Matte White Parabolic Louver
TIO
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array that has a translucent lens to mask pixilation from the diodes. TIO has a 100° spread in the indirect that is ideal when the fixture is mounted farther away from the ceiling.
WIO2
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
WWB
Wall Wash Black Optic
WWS
Wall Wash Silver Optic
WWW
Wall Wash White Optic
Parabolic louvers
Parabolic louvers provides excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and is 2″x2″ in size. The LED array is secured in the direct position, with the light transmitting through a beam-forming lens creating a conical distribution. Three matte (MPL) finishes are available in black, white and silver, offering a soft appearance, a wide beam spread of up 85-91 degrees, gentle brightness transition at cut-off, and exceptional UGR.
Wall Wash
Ubik wall wash is an offset horizontal linear LED array that reflects from a matte white internal side kicking reflector. It then transmits through the beam-forming lens and then softened by a 2″ asymmetric louver. The lens is fully illuminated, and the wall wash is only slightly angled to complement the direct optic.
WELL Building
Ubik collection meets the WELL building standard for UGR of <19 in all available lumen packages.
UP Technology
For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology
Ubik Combination
Direct, Direct/Indirect
Sleek square form meets superb function in Ubik, a lighting family designed to provide a multitude of creative options. With the Ubik Combination pendant luminaire, you can combine different optics and create patterns with corners to further enhance your lighting design. These compact 2” wide pendant fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination. For indirect, you can select wide-spread or translucent optics.
- Up to 1600 lm/ft
- Low glare with a UGR of 6
- 145 lm/W (HLO)
- Optical flexibility with parabolic louvers, HLO, wall wash or blanks

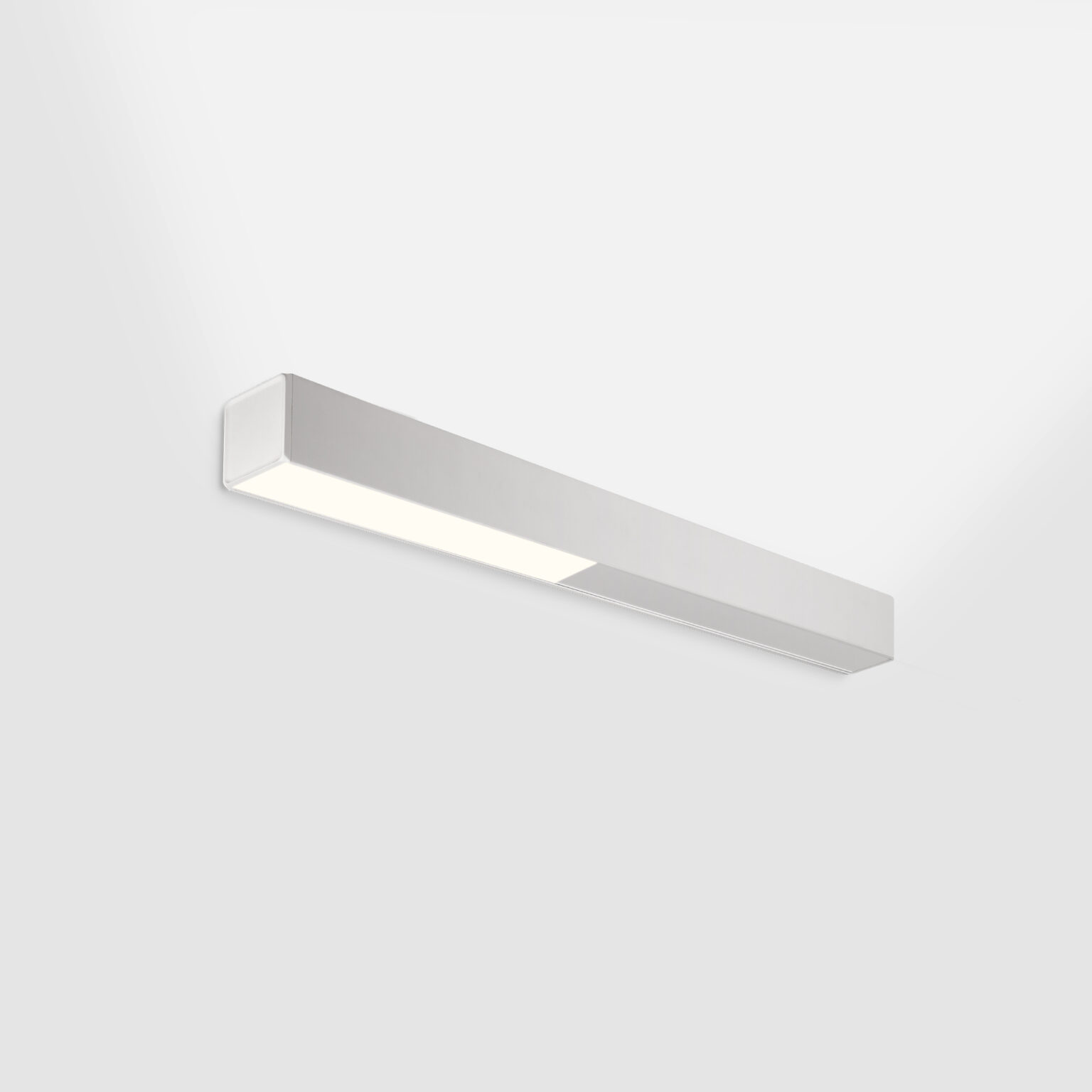

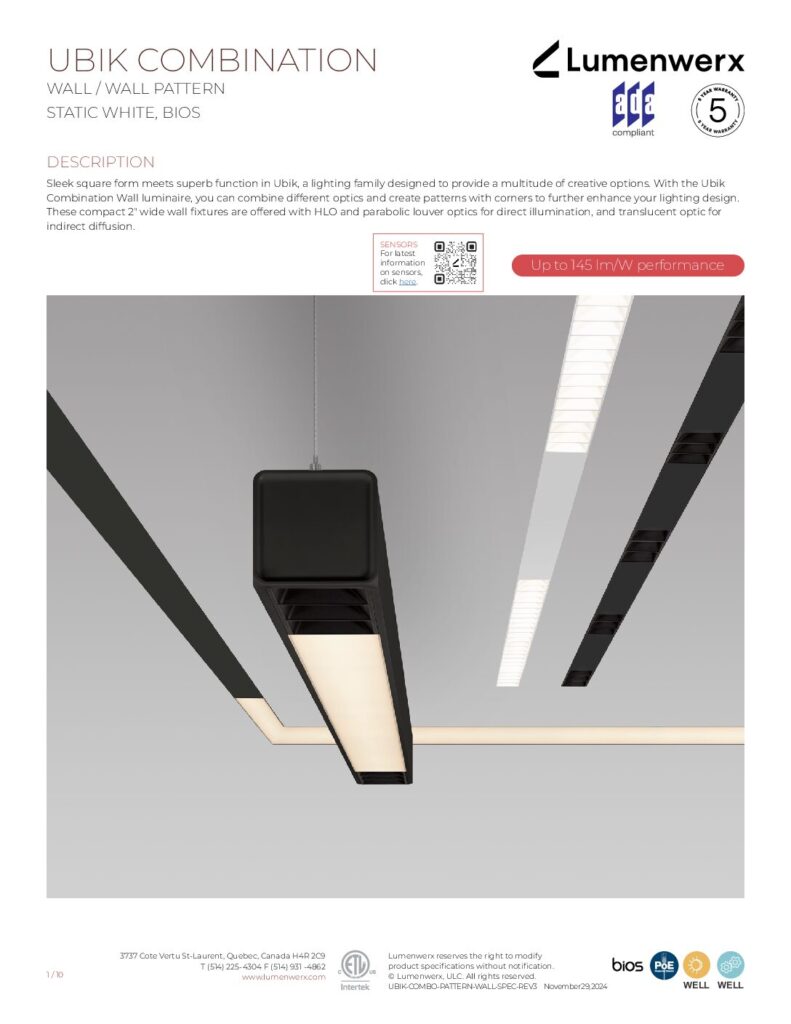

Specifications - Wall
Product TypesLinear, Low UGR OpticsHLO, MBPL, MSPL, MWPL, TIO, WIO2, WWB, WWS, WWW CCT/Light & ColorStatic White MountingWall Distribution TypeDirect, Direct/Indirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Optics
HLO
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
MBPL
Matte Black Parabolic Louver
MSPL
Matte Silver Parabolic Louver
MWPL
Matte White Parabolic Louver
TIO
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array that has a translucent lens to mask pixilation from the diodes. TIO has a 100° spread in the indirect that is ideal when the fixture is mounted farther away from the ceiling.
WIO2
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
WWB
Wall Wash Black Optic
WWS
Wall Wash Silver Optic
WWW
Wall Wash White Optic
Parabolic louvers
Parabolic louvers provides excellent shielding and a pleasing crisp visual texture. The precisely molded louvers consist of 1″ deep blades and is 2″x2″ in size. The LED array is secured in the direct position, with the light transmitting through a beam-forming lens creating a conical distribution. Three matte (MPL) finishes are available in black, white and silver, offering a soft appearance, a wide beam spread of up 85-91 degrees, gentle brightness transition at cut-off, and exceptional UGR.
Wall Wash
Ubik wall wash is an offset horizontal linear LED array that reflects from a matte white internal side kicking reflector. It then transmits through the beam-forming lens and then softened by a 2″ asymmetric louver. The lens is fully illuminated, and the wall wash is only slightly angled to complement the direct optic.
WELL Building
Ubik collection meets the WELL building standard for UGR of <19 in all available lumen packages.
UP Technology
For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology
UGR 6
145 lm/W
(HLO)
UP TO
1600 lm/ft
Combination Options
Variety is the spice of light.
Mix and match optics to add interest and functional diversity to spaces. Parabolic louvers are available in three matte colors—black, silver, and white—HLO, and blanks. Create patterns or combinations, the possibilities are unlimited with Ubik.

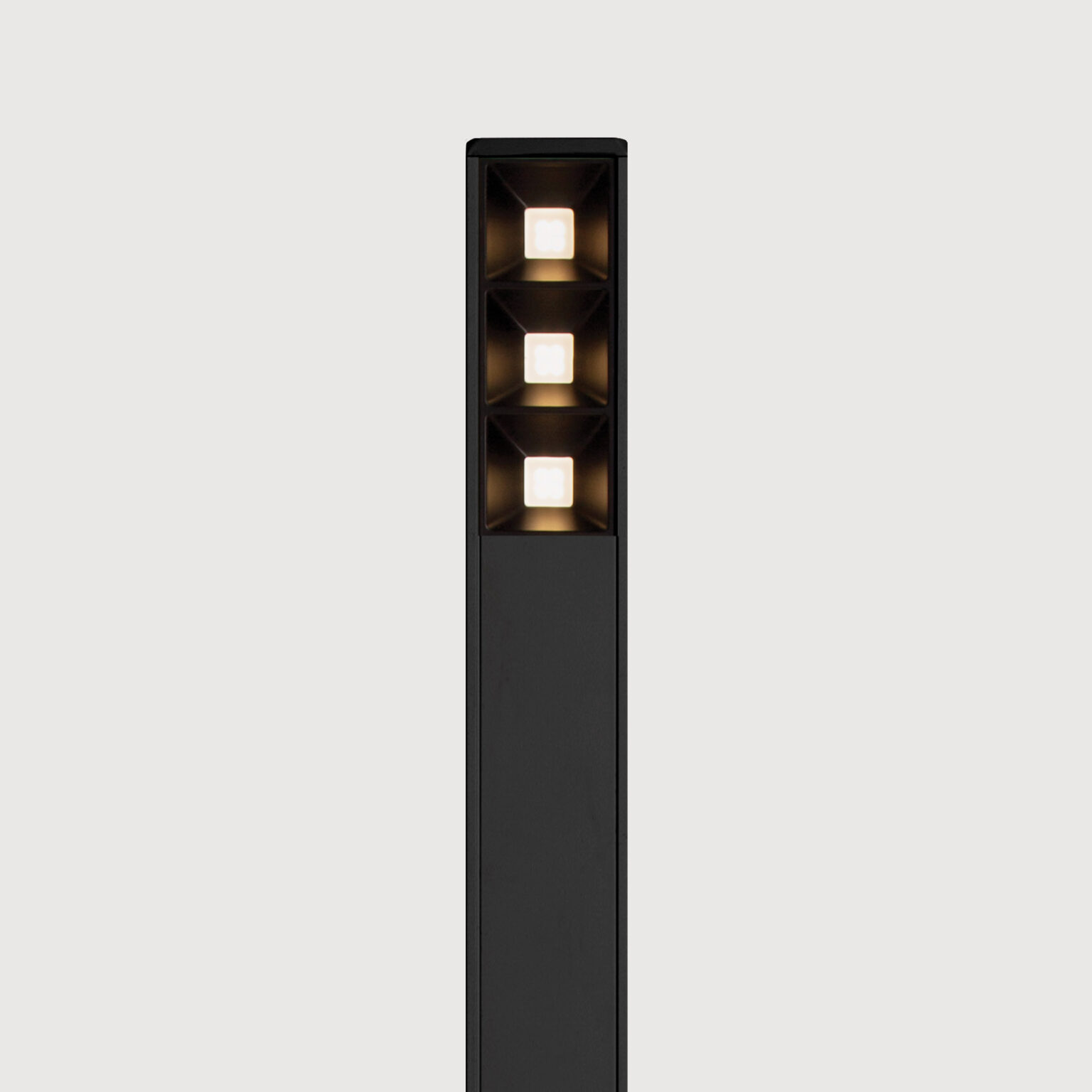

Parabolic Louvers

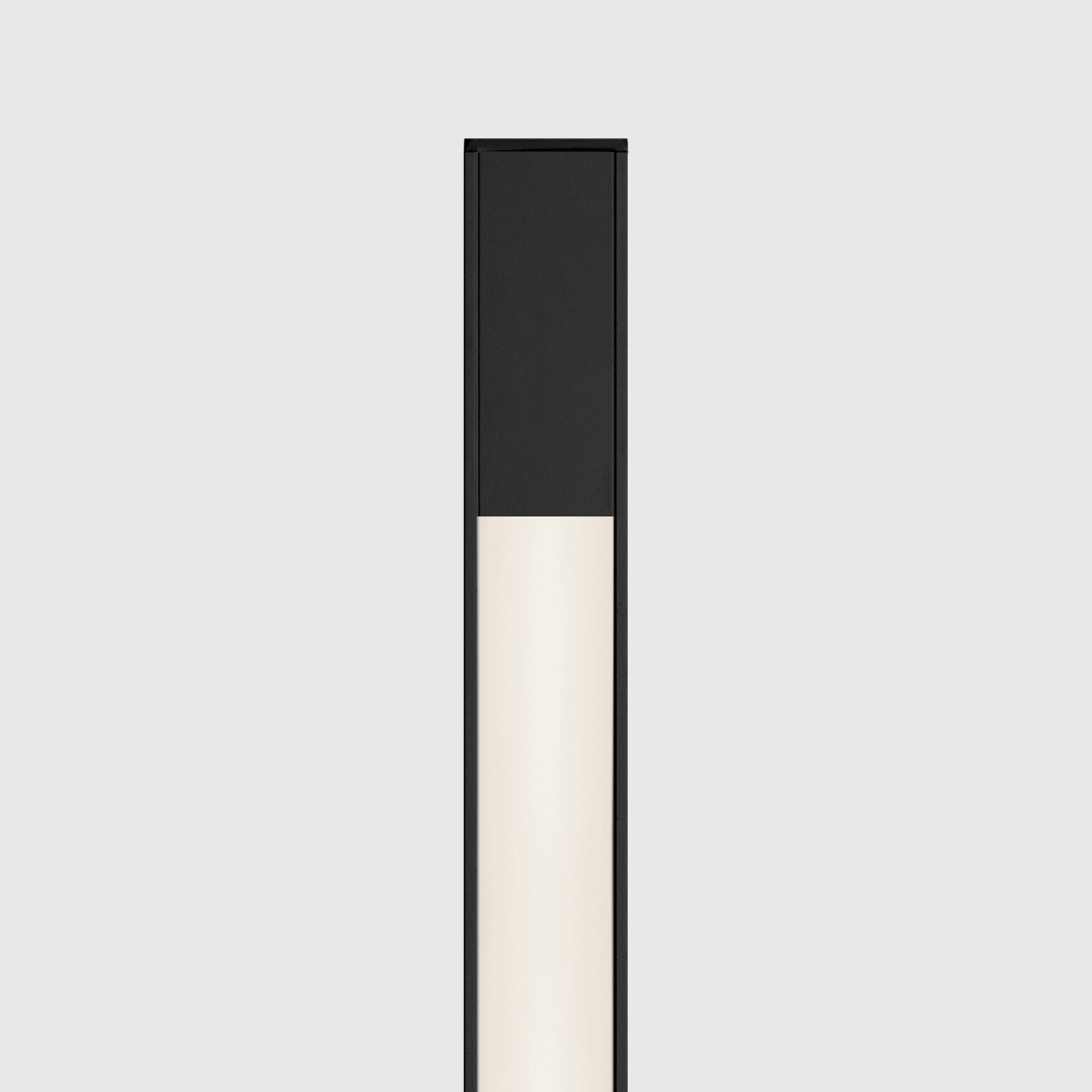

HLO

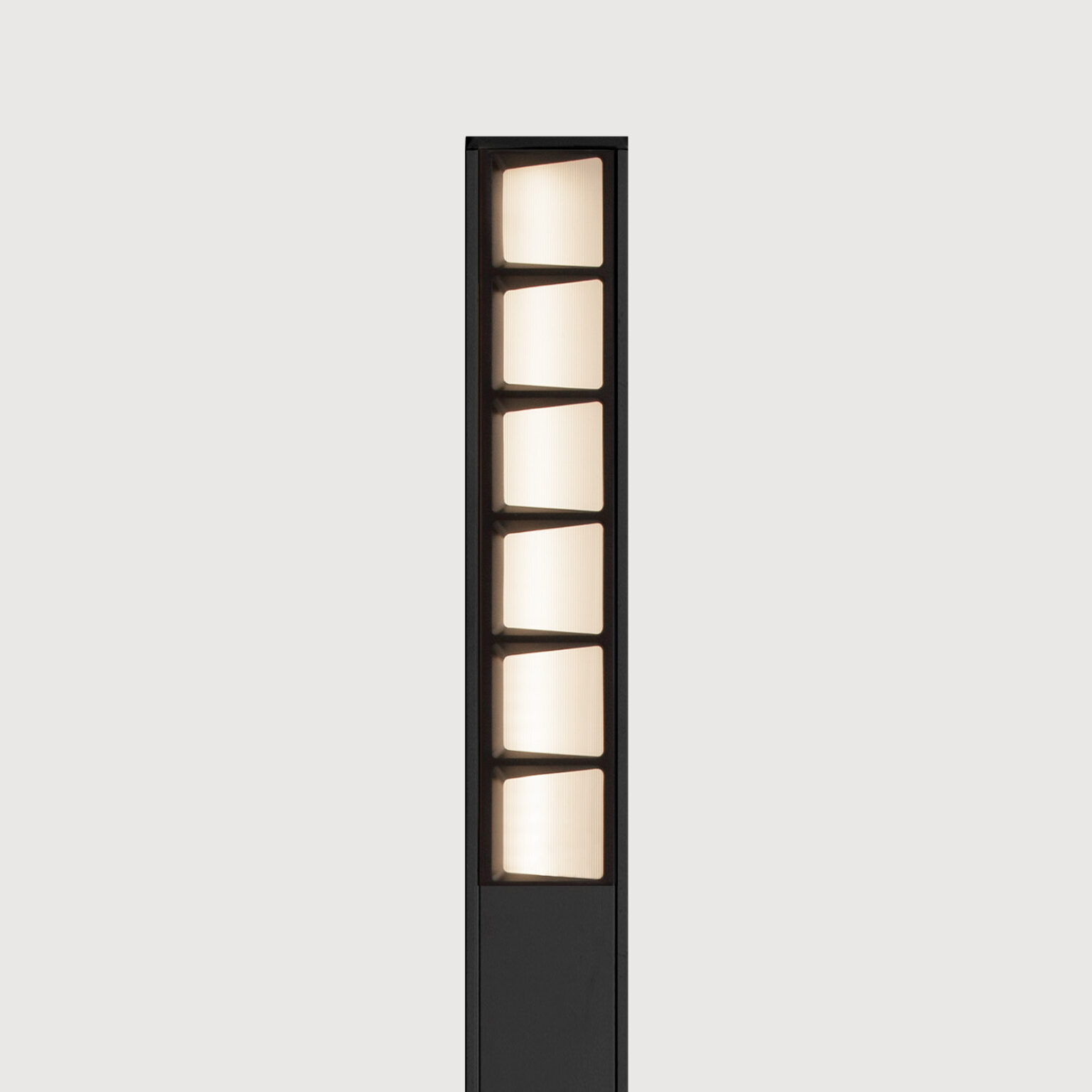

Wall Wash

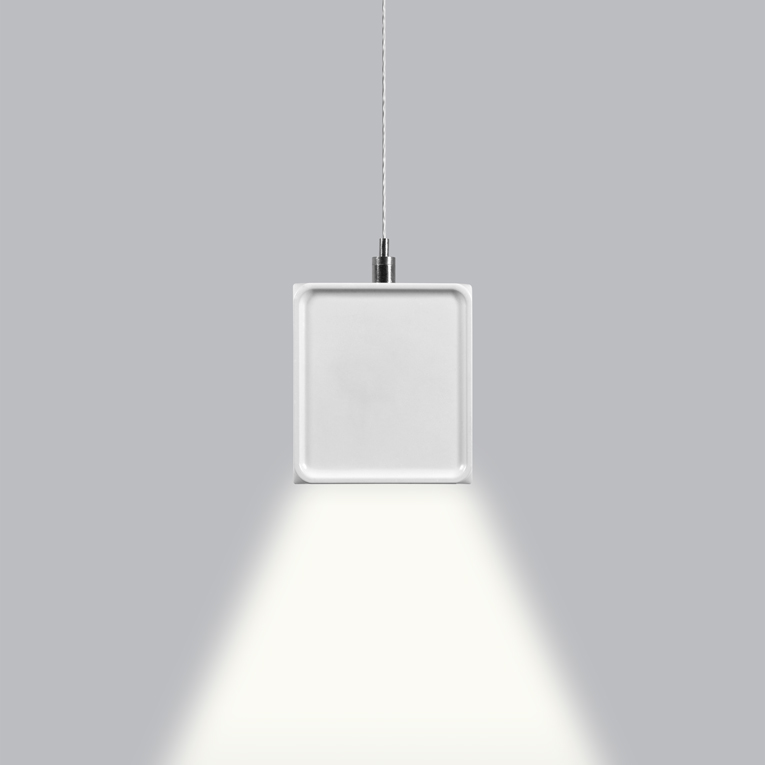

Optical Flexibility

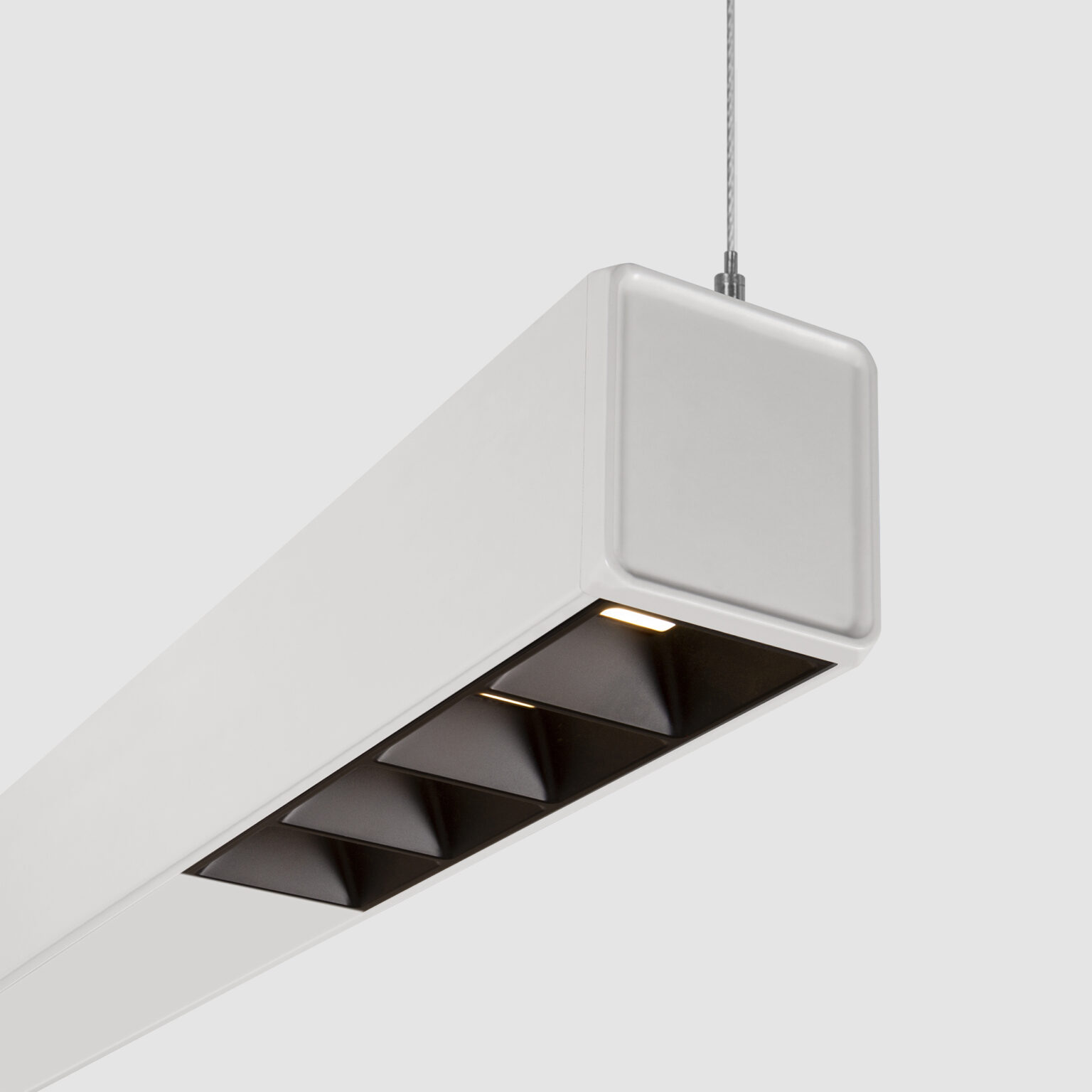

Parabolic Louvers

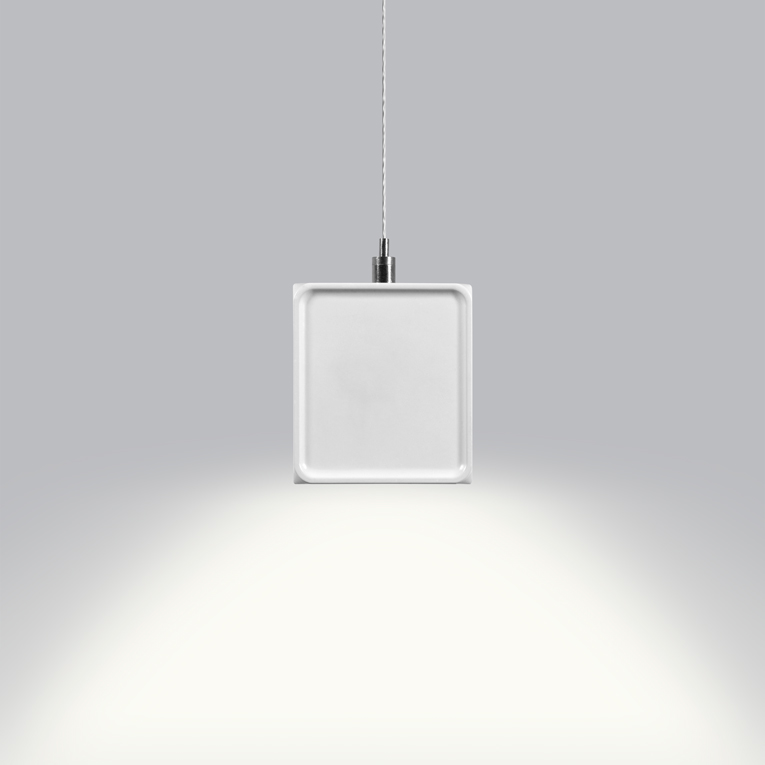

High-Efficiency Lambertian Optic (HLO)

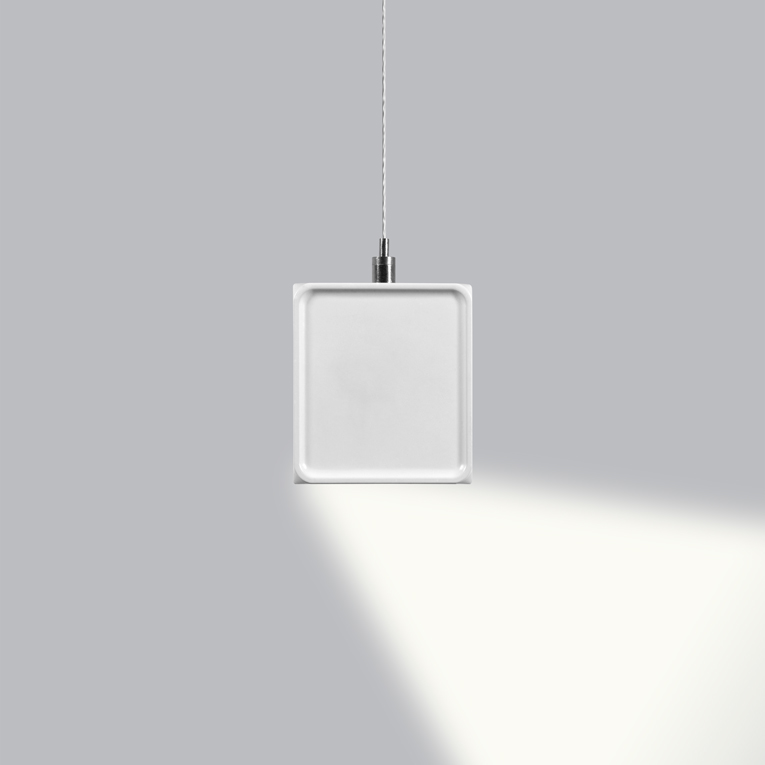

Wall Wash

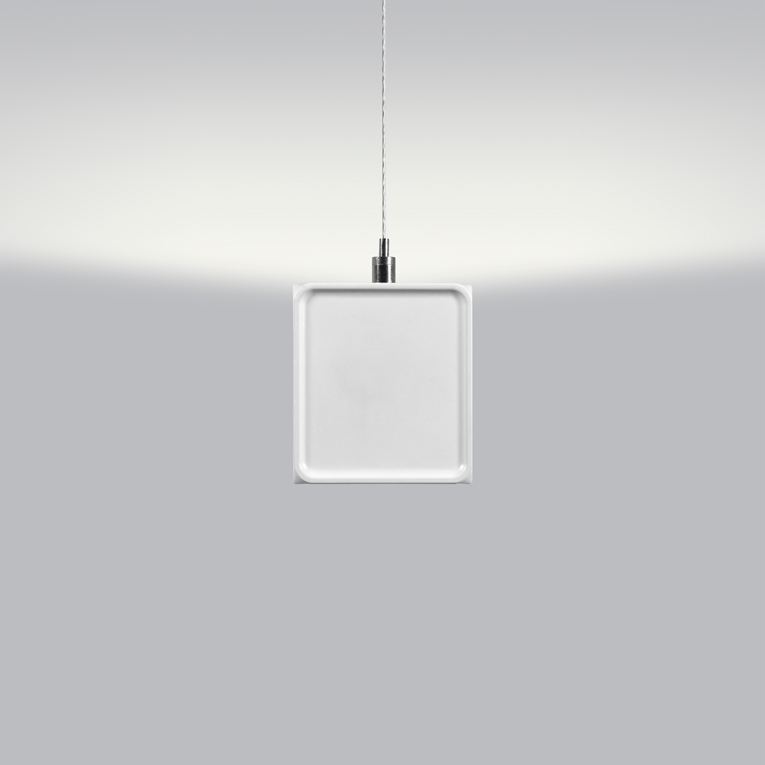

Wide Indirect Optic (WIO)

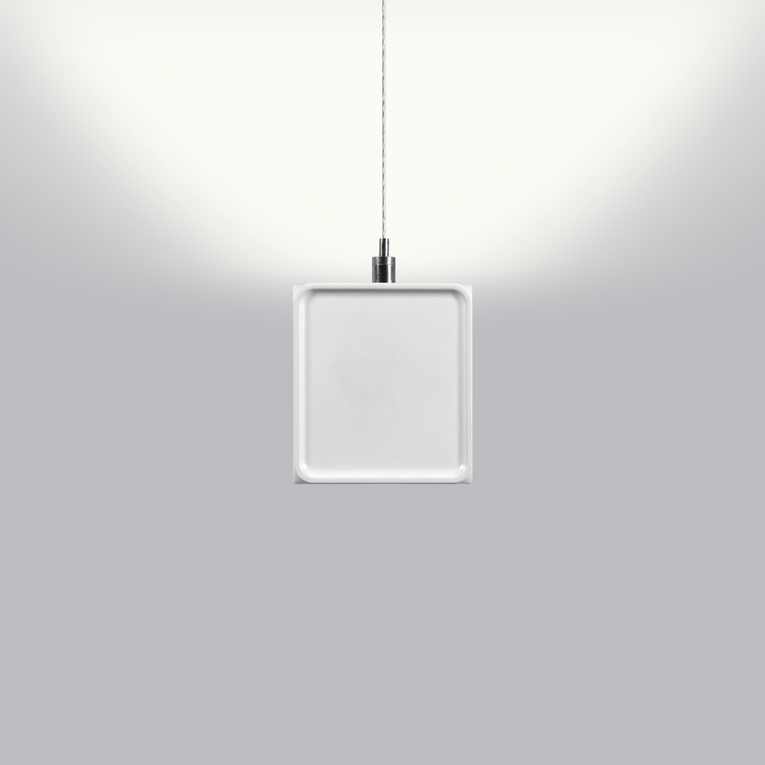

Translucent Indirect Optic (TIO)

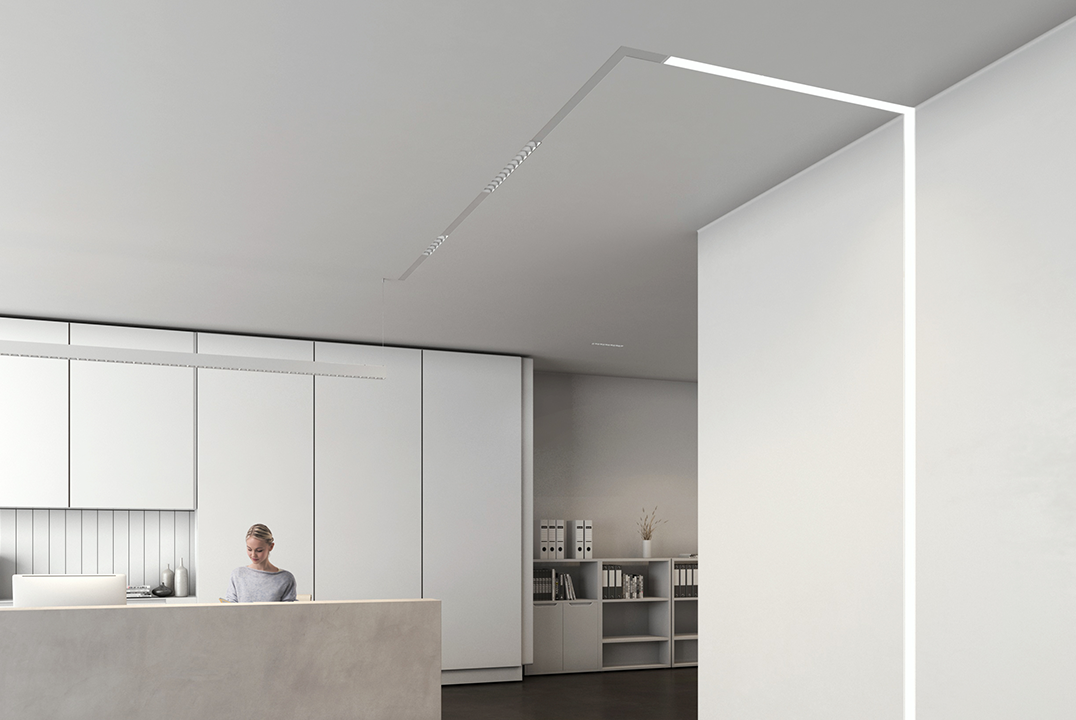

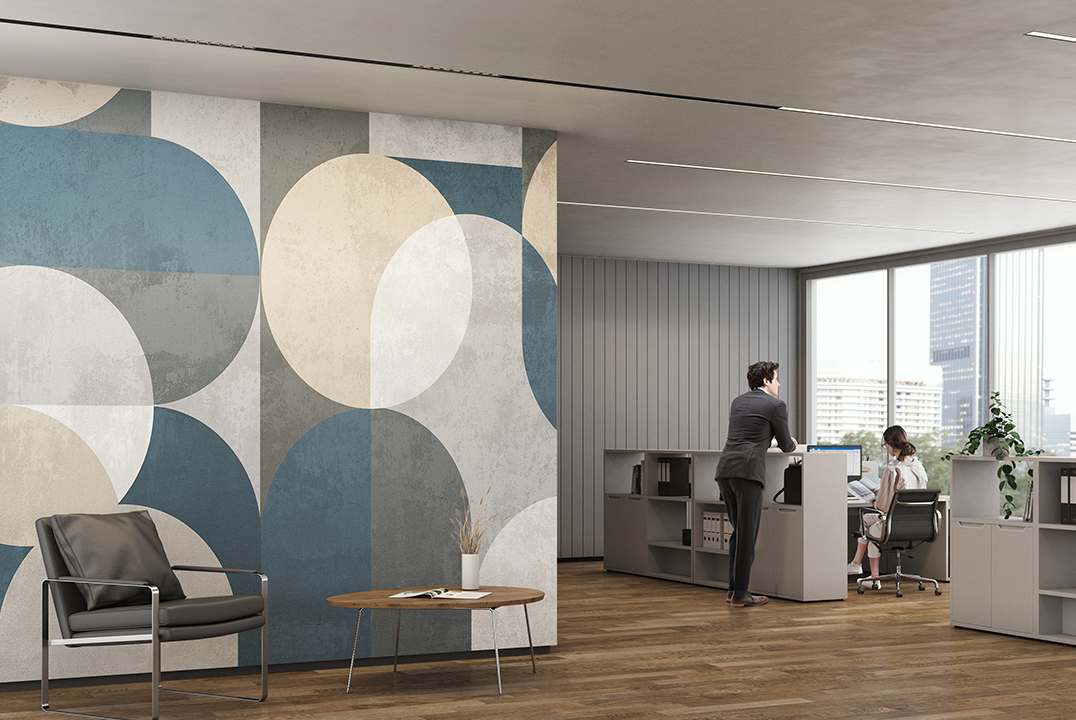

Inspiration Gallery
