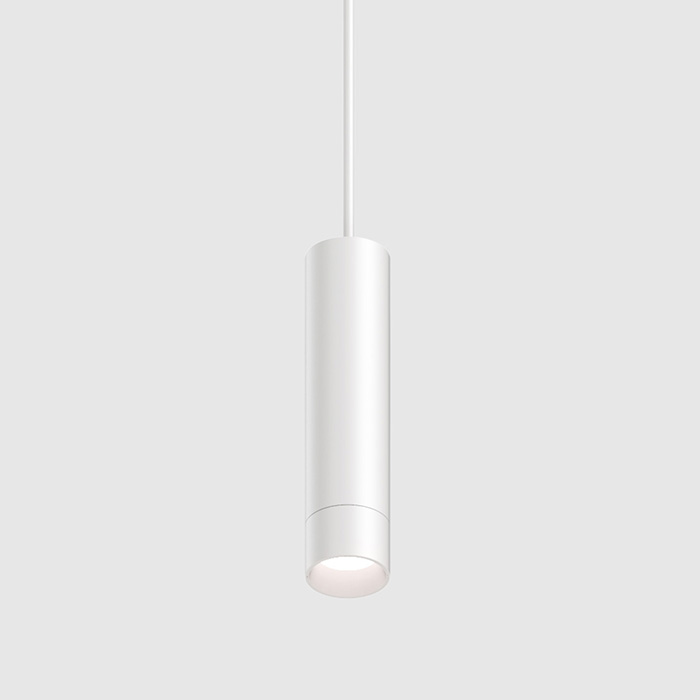

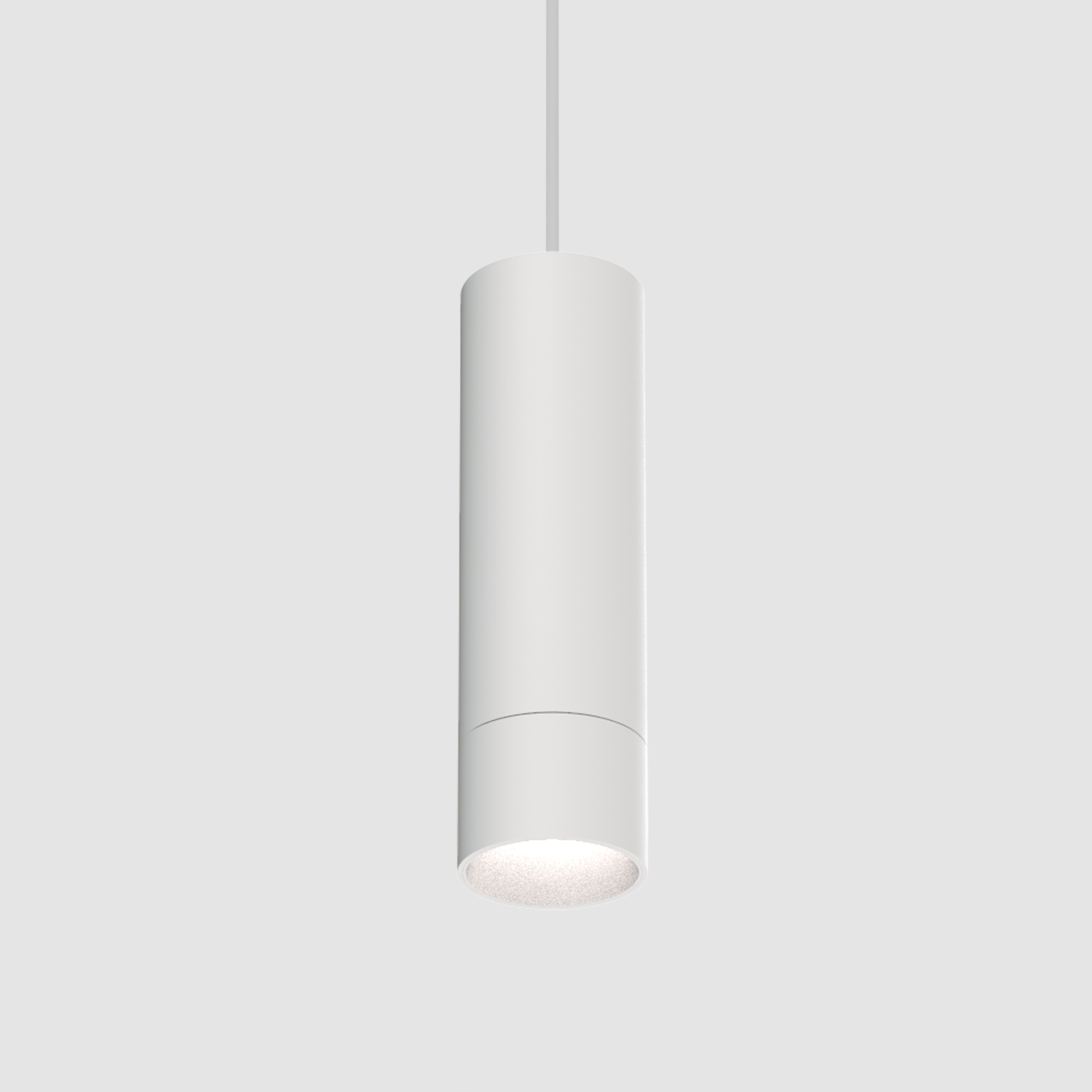

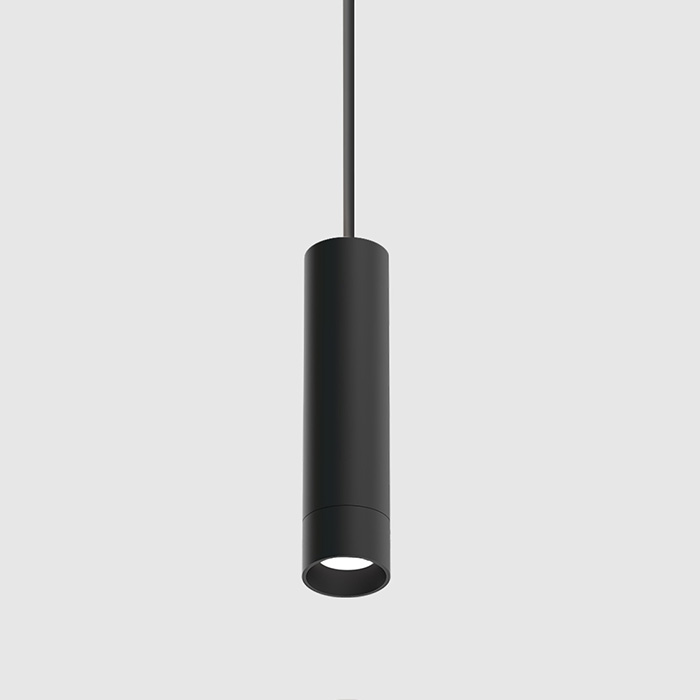

Voilà 2" Cylinder
Voila 2″ cylinder downlights are available for pendant and surface installation with multiple finishes. Using HyFlex optics, field-interchangeable beam angles range from 10º to 90º. Drivers are remote and are available for Remote drivers are available 0-10V, ELV, Triac, DALI and various Lutron and Eldoled dimming protocols, as well as ChromaWerx Sola and Duo. Pendants can be suspended with PVC or fabric-covered cable. Surface cylinders can be powered by direct wire or through a J-box. Surface conduit adapters are available for both surface and pendant installation. Die-cast baffles are offered in in 0.5″, 1″ and 2″ depth and match the cylinder diameter. Pre-set luminaire light output is available from up to 1220 lumens.

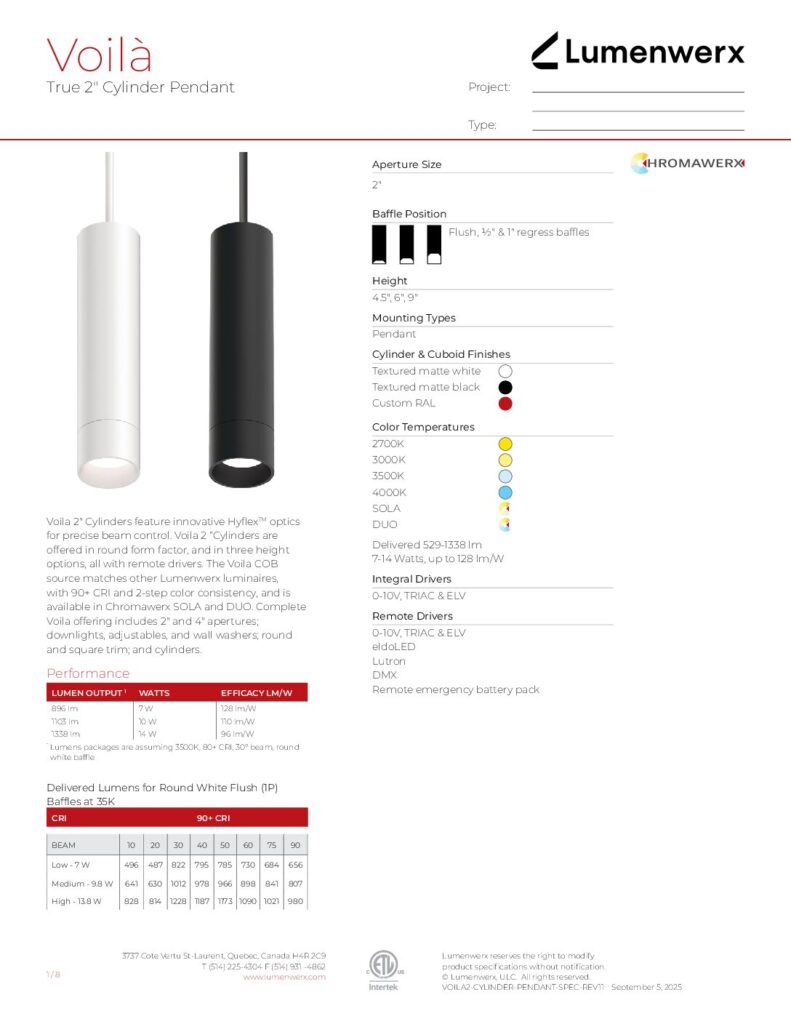

Product DownloadsSpecifications - Pendant
Product TypesCylinder-Cuboid, Point Source OpticHYFLEX™ CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingPendant LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HYFLEX™
Hyflex™ optics provide precise optical control in a remarkably compact form. The core of this four-tier system is a compound reflector with a central TIR element, just 1.06″ deep. Beam smoothing discs perfect beam angles up to 90º. Beam angles are easily interchanged in the field.
Voilà 2" Cylinder
Voila 2″ cylinder downlights are available for pendant and surface installation with multiple finishes. Using HyFlex optics, field-interchangeable beam angles range from 10º to 90º. Drivers are remote and are available for Remote drivers are available 0-10V, ELV, Triac, DALI and various Lutron and Eldoled dimming protocols, as well as ChromaWerx Sola and Duo. Pendants can be suspended with PVC or fabric-covered cable. Surface cylinders can be powered by direct wire or through a J-box. Surface conduit adapters are available for both surface and pendant installation. Die-cast baffles are offered in in 0.5″, 1″ and 2″ depth and match the cylinder diameter. Pre-set luminaire light output is available from up to 1220 lumens.

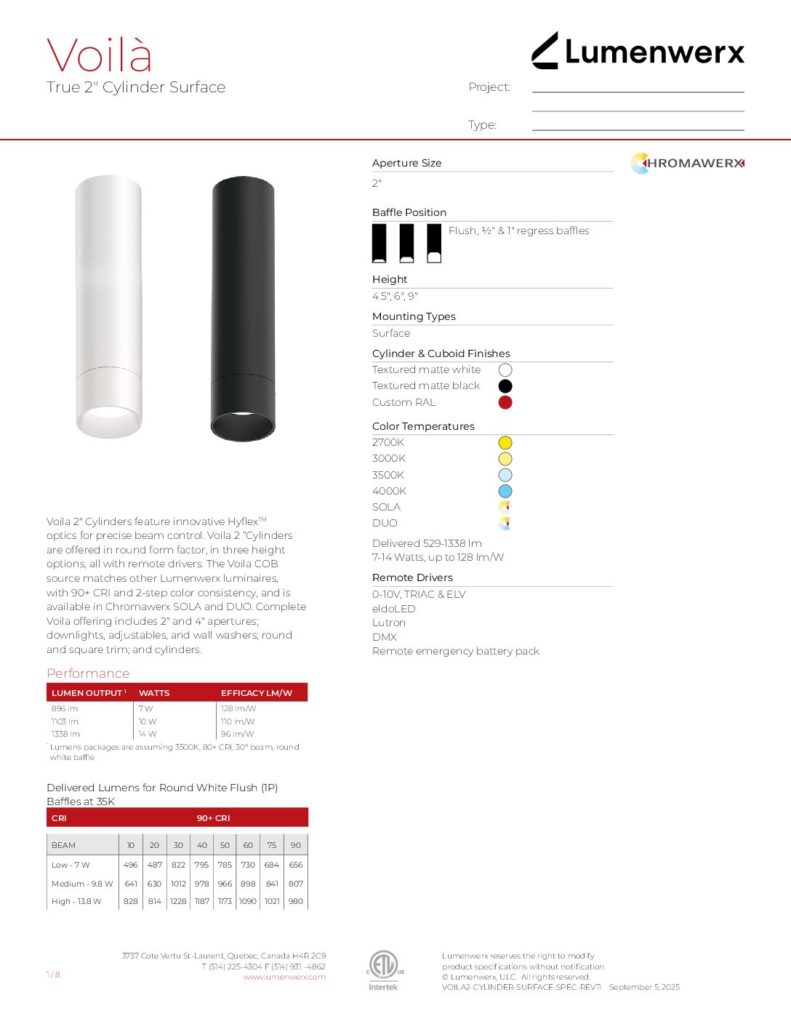

Product DownloadsSpecifications - Surface
Product TypesCylinder-Cuboid, Point Source OpticHYFLEX™ CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingSurface LumenXpressYes Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
HYFLEX™
Hyflex™ optics provide precise optical control in a remarkably compact form. The core of this four-tier system is a compound reflector with a central TIR element, just 1.06″ deep. Beam smoothing discs perfect beam angles up to 90º. Beam angles are easily interchanged in the field.
HEIGHTS
4.5″, 6″, 9″
BEAM ANGLES
8″
MOUNTING
Surface, Pendant
Standard Finishes
White
Black

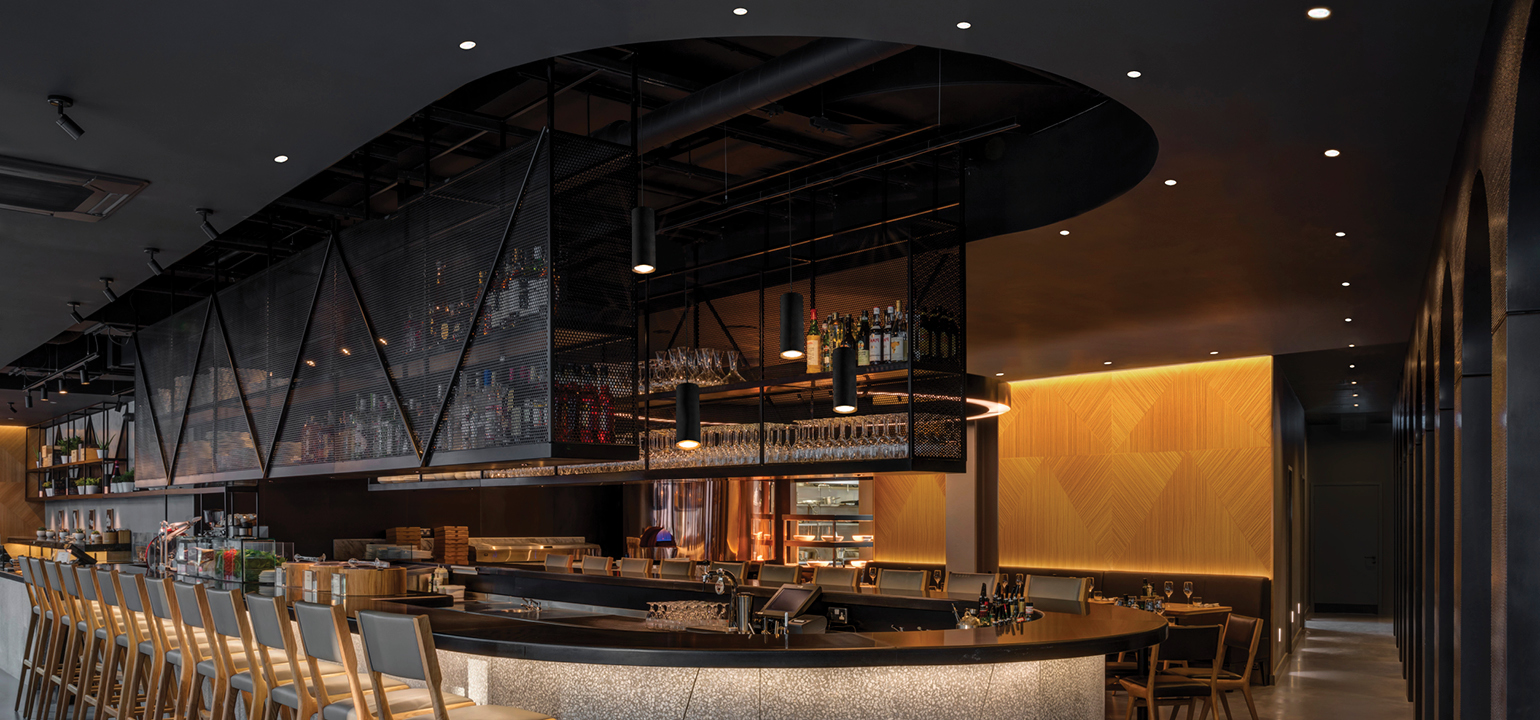

Inspiration Gallery
