Cava-T
Direct

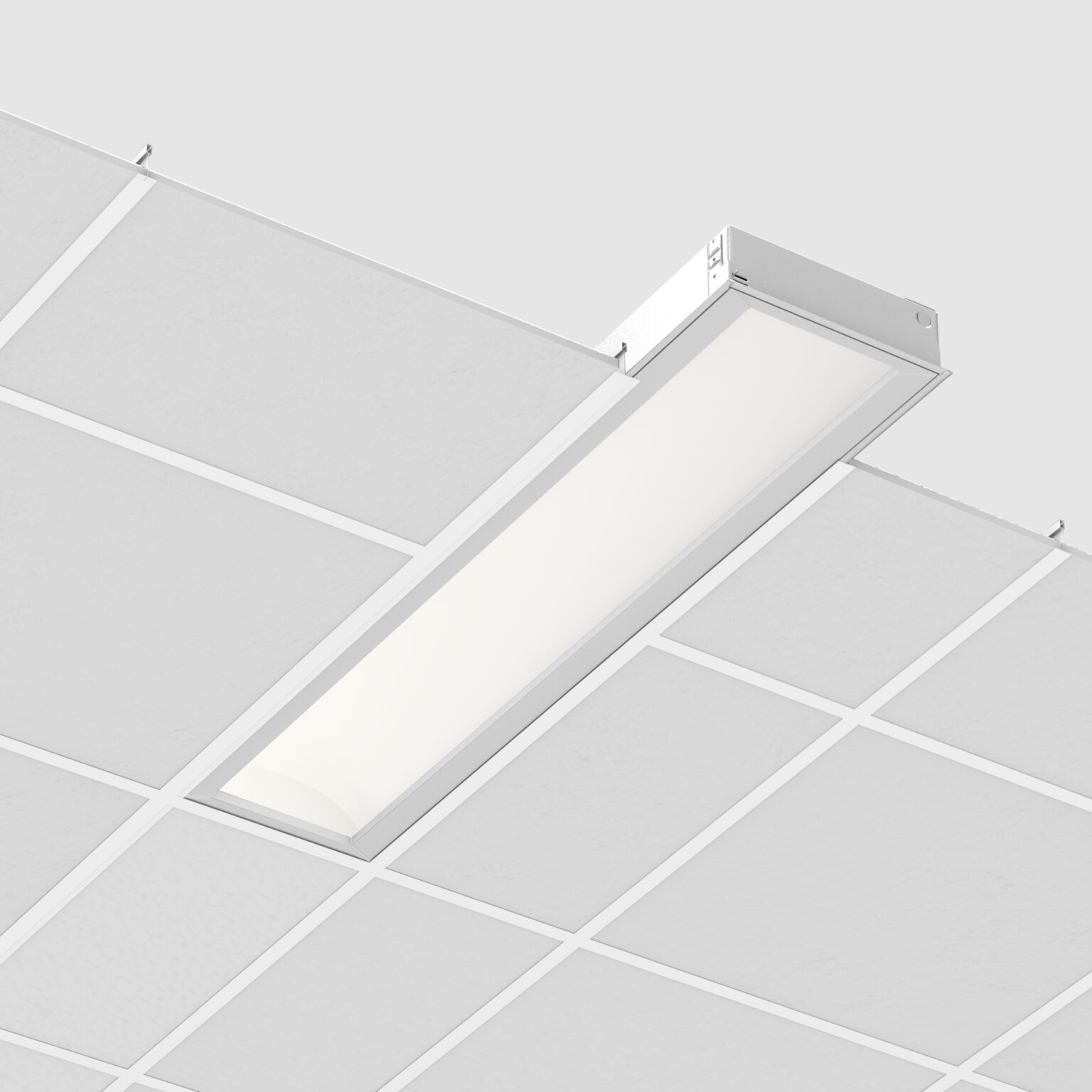

Cava-T provides a pleasant canopy of gentle luminescence that brightens everyday work spaces as well as special areas. Cava-T is available in 1″ x 4″ and 2″ x 2″ modules for a variety of ceiling conditions.
Cava-T is an ideal vehicle for ChromaWerx color tuning in education, office, and healthcare applications where modular recessed luminaires are used.
Product DownloadsSpecifications - 1" x 4" Recessed
Product TypesLinear, Arch. Troffer, Healthcare OpticRLO CCT/Lights & ColorStatic White, Duo (Tunable White), Quadro (RGBW), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
RLO
REDUCED LUMINANCE OPTIC (RLO) – reduced Luminance Optic (RLO) consists of indirect-mounted LED arrays illuminating a vaulted reflector with a matte white finish greater than 95% reflectivity. The ultra-shallow arrays in RLO completely conceal the light source while evenly distributing brightness over the entire surface of the cavity using a combination of multiple reflective bounces and a very high diffuse reflectivity. Compared to diffusing optics, RLO reduces luminaire brightness due to the visible interior surface being larger than the aperture.es of concentric grooves serving as light-bending prisms that redirect parallel rays to a common focal length. The resulting beams are precise and clean. The optic can change in appearance depending on the lighting conditions in its immediate surroundings.
Cava-T
Direct

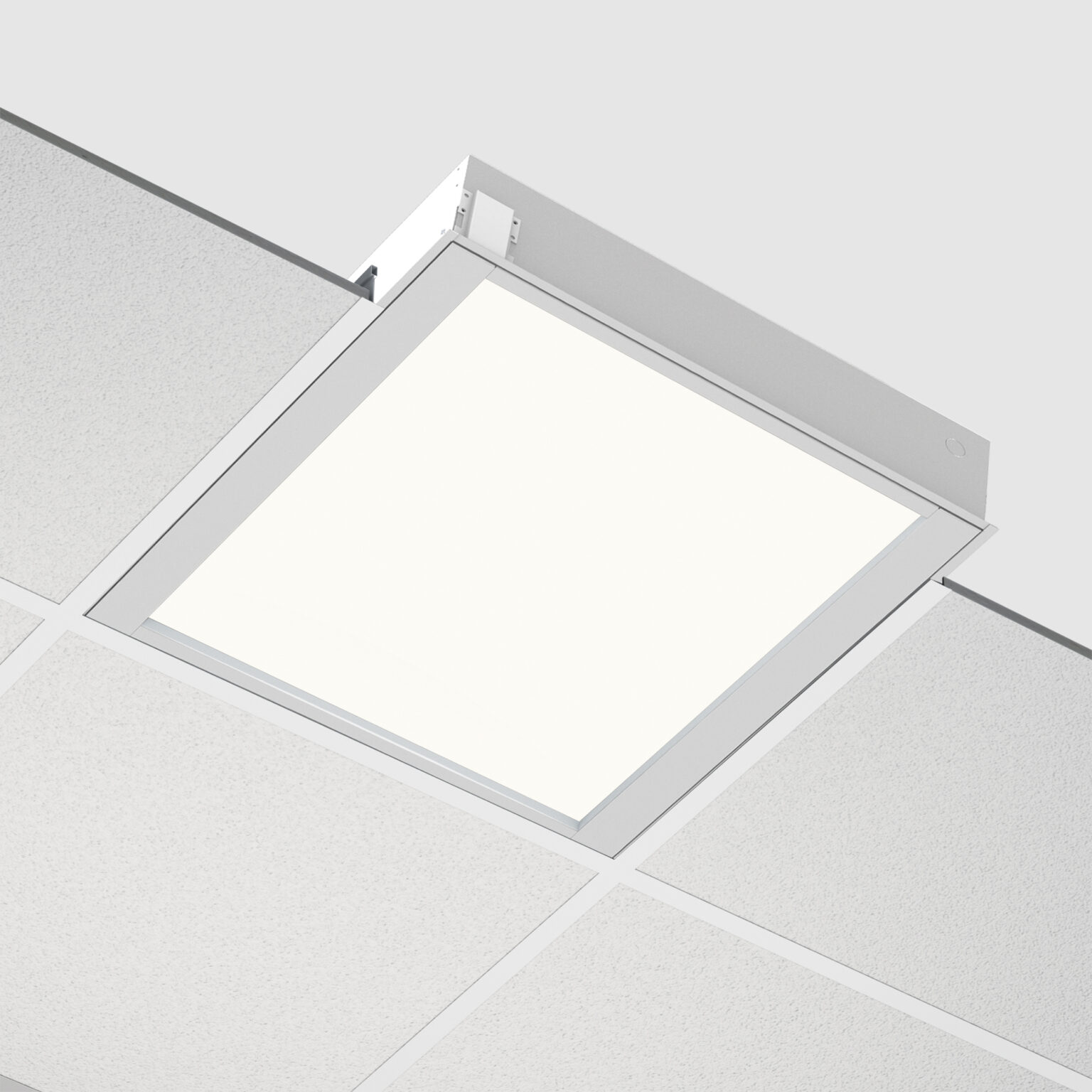

Cava-T provides a pleasant canopy of gentle luminescence that brightens everyday work spaces as well as special areas. Cava-T is available in 1″ x 4″ and 2″ x 2″ modules for a variety of ceiling conditions.
Cava-T is an ideal vehicle for ChromaWerx color tuning in education, office, and healthcare applications where modular recessed luminaires are used.
Product DownloadsSpecifications - 2" x 2" Recessed
Product TypesArch. Troffer, Healthcare OpticRLO CCT/Lights & ColorStatic White, Duo (Tunable White), Quadro (RGBW), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Quadro (RGBW)
ChromaWerx Quadro is a four-channel control that operates an RGBW LED array and addresses the need for more expressive color in architectural applications, creating rich, colored light effects, together with various shades of white.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
RLO
REDUCED LUMINANCE OPTIC (RLO) – reduced Luminance Optic (RLO) consists of indirect-mounted LED arrays illuminating a vaulted reflector with a matte white finish greater than 95% reflectivity. The ultra-shallow arrays in RLO completely conceal the light source while evenly distributing brightness over the entire surface of the cavity using a combination of multiple reflective bounces and a very high diffuse reflectivity. Compared to diffusing optics, RLO reduces luminaire brightness due to the visible interior surface being larger than the aperture.es of concentric grooves serving as light-bending prisms that redirect parallel rays to a common focal length. The resulting beams are precise and clean. The optic can change in appearance depending on the lighting conditions in its immediate surroundings.
Mountings and Sizes

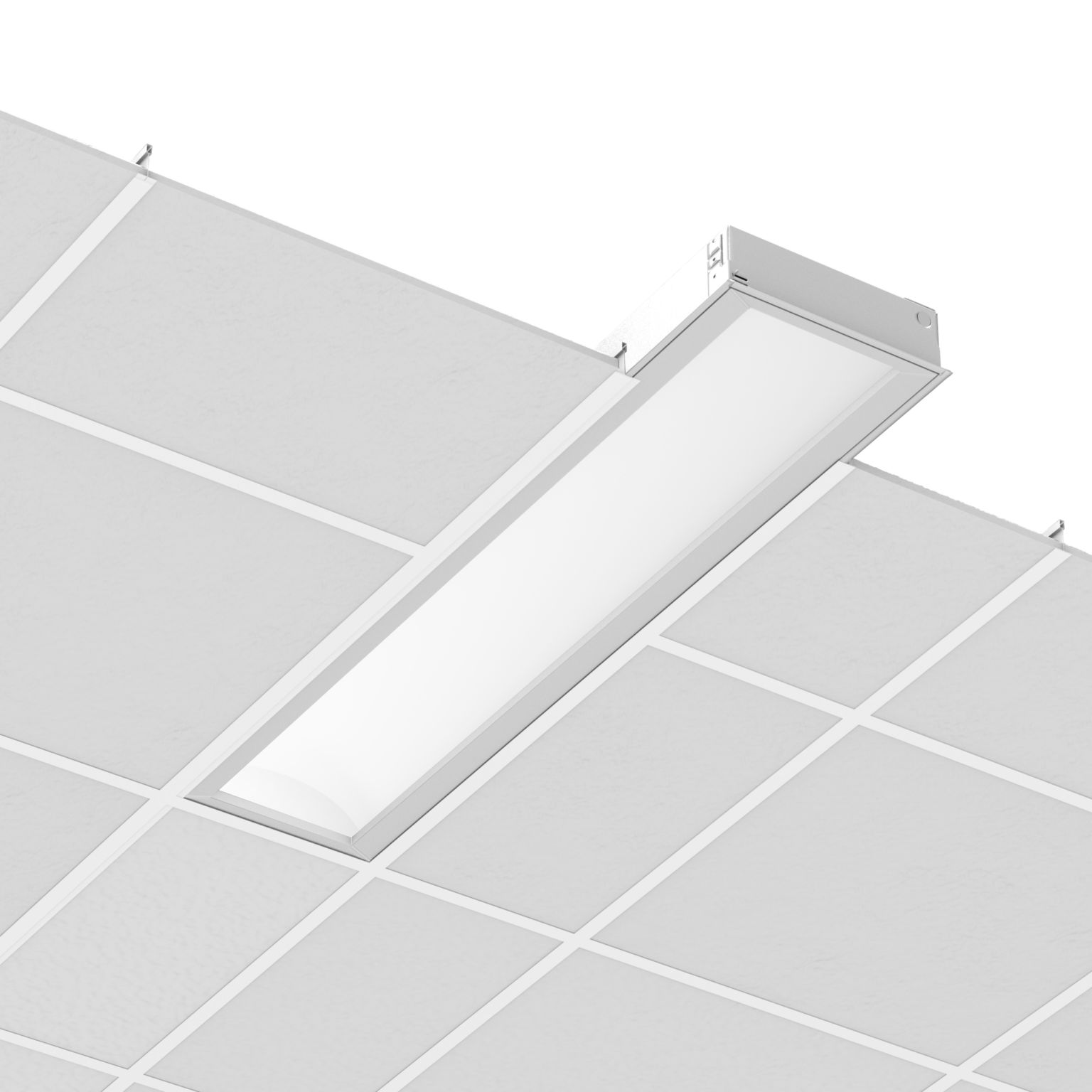

1" x 4" Grid
1" x 4" Drywall

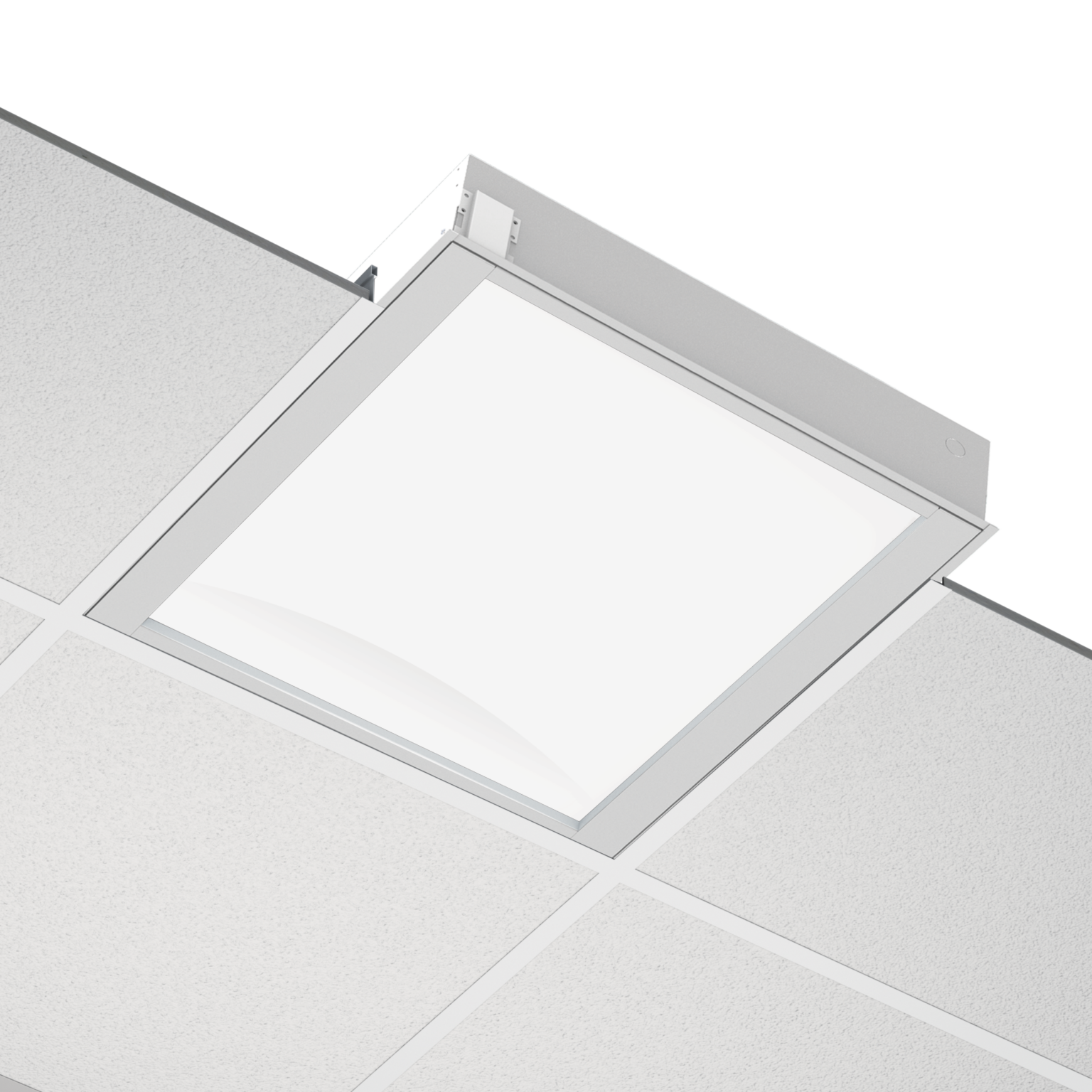

2" x 2" Grid
2" x 2" Drywall
Construction
- LED FRAME Removable for access to LED arrays.
- LED ARRAY Side-mounted LED arrays are precisely positioned direct light to the combination RLO optic.
- DUST COVER Clear acrylic.
- SIDE REFLECTOR Semi-specular 98% reflective internal reflectors distribute the light across the central domed reflector, creating uniform luminance.
- CENTRAL REFLECTOR Die-formed aluminum, 98% reflective, matte white finish creates distinctively uniform luminous appearance Removable for access to driver.
- LED DRIVER Factory-set, adjustable output current electronic driver with 120-277V AC line input. Dimmable from at least 100%- 1% with 0-10V control.
- HOUSING Die-formed 20 Ga. cold-rolled steel, matte white powder coat finish.
