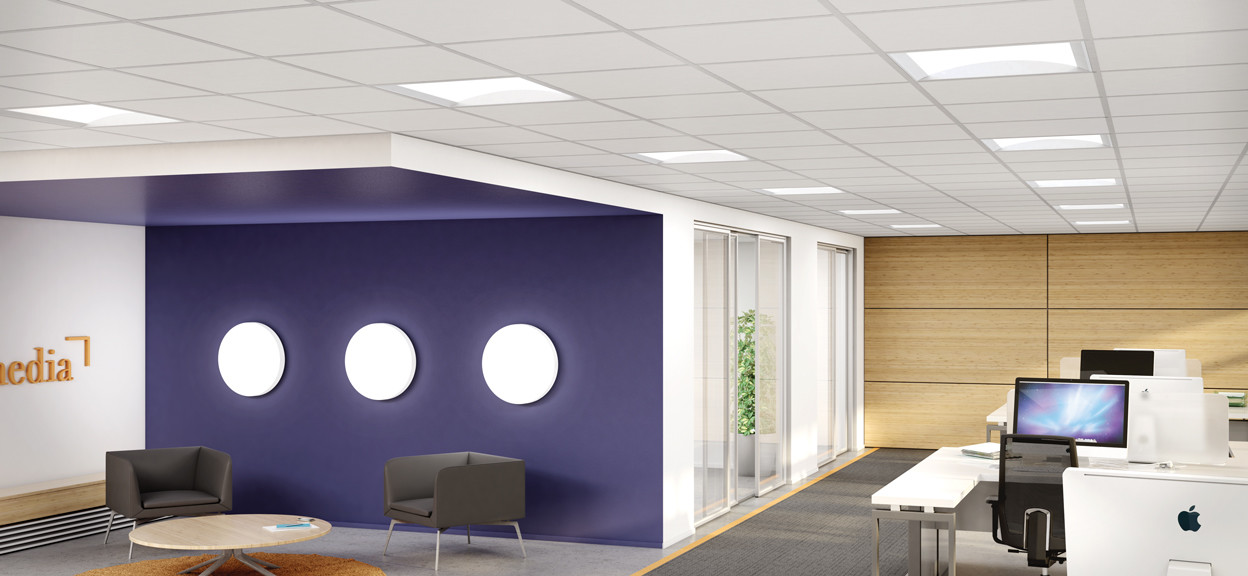

The SideView 2×2 recessed luminaire delivers visually comfortable and notably pleasant general illumination with an uncommonly even luminous surface. This attractive and comfortable lighting result comes from our innovative LumenWerx Compression Planar Optic. With the LED flux side-coupled directly into the optical panel, the SideView housing is very shallow, less than 2 ¾” deep. Despite its minimal depth, the Sideview’s gently curved concave optic seems to disappear up into the ceiling.
Product Downloads
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
To create the new LumenWerx Compression Planar Optic (CPO), a rigid frame holds the edge-lighted luminous plane into a soft curve with a precise radius. A graduated and finely textured extractive microstructure, combined with a contoured upper reflector, complete the optical system. When light is coupled in from the outboard LED arrays, the specific width and curvature of the optical plane redirect light into a soft-shouldered distribution. The result is a comfortable, high-efficiency optical system with superior luminous uniformity.
