Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 1" x 4" CMO Recessed

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 1" x 4" CMO Surface

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingSurface Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 1" x 4" PMO Recessed

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 1"x 4" PMO Surface

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingSurface Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 2" x 2" CMO Round Recessed

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 2" x 2" CMO Round Surface

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingSurface Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

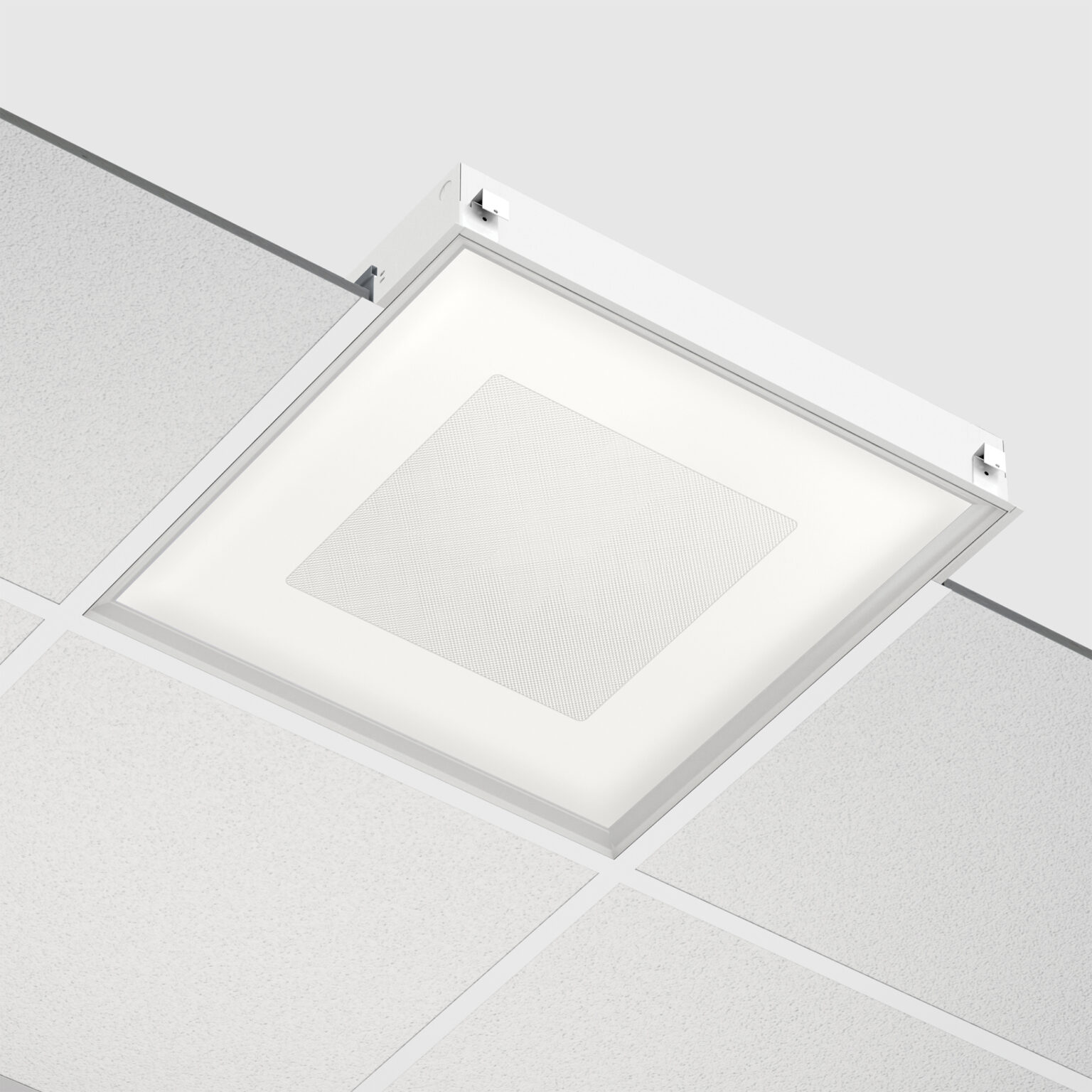

Specifications - 2" x 2" CMO Square Recessed

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 2" x 2" CMO Square Surface

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingSurface Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 2" x 2" PMO Recessed

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingRecessed Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.

Primo

2X2, 1X4

Primo features a unique concentric micro optic that creates a subtle, yet distinctive, graphical appearance appropriate for important spaces, large and small. The precise, square-base-prism design achieves both luminous consistency and overall visual comfort from all viewing angles. Using advanced LED engines and optics, Primo provides comfortable and efficient illumination where it’s needed, while integrating cleanly into the architecture.

Specifications - 2" x 2" PMO Surface

Product TypeArch. Troffer OpticsCMO, PMO CCT/Lights & ColorStatic White, Duo (Tunable White), Sola (Dim to Warm) MountingSurface Distribution TypeDirect

Light Source

Static White

Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.

Duo (Tunable White)

ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.

Sola (Dim to Warm)

ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.

Optics

CMO

Concentric Micro-Prism Optic (CMO) shielding of 0.12″ thick acrylic with 94% transmission plus a high transmission diffusing overlay. Outer optic has smaller prisms; inner optic has larger prisms. The precisely formed pyramidal forms provide outstanding control of high-angle brightness and a gentle brightness gradient from different viewing angles.

PMO

CENTER LENS – PRECISION MICRO-PRISM-OPTIC (PMO) – utilizes a specially designed catadioptric lens that combines refraction and internal reflection. The square-base prism is 24% the size of those used in a high-performance fluorescent lens. The exclusive two-dimensional array of prisms is designed to eliminate the glare found at higher viewing angles and as such, enables a glare cut-off at a 45º viewing angle.
The acrylic material itself is untinted, relying entirely on catadioptric control for effective source obscuration. A highly efficient TIR process at the acrylic-air interface on the prism surfaces redirects incident light with less than a 0.1% loss per reflection. As a result, these LumenWerx optics attain a high optical efficiency greater than 90%, while maintaining visual comfort at normal viewing angles and presenting a pleasing luminous appearance.
