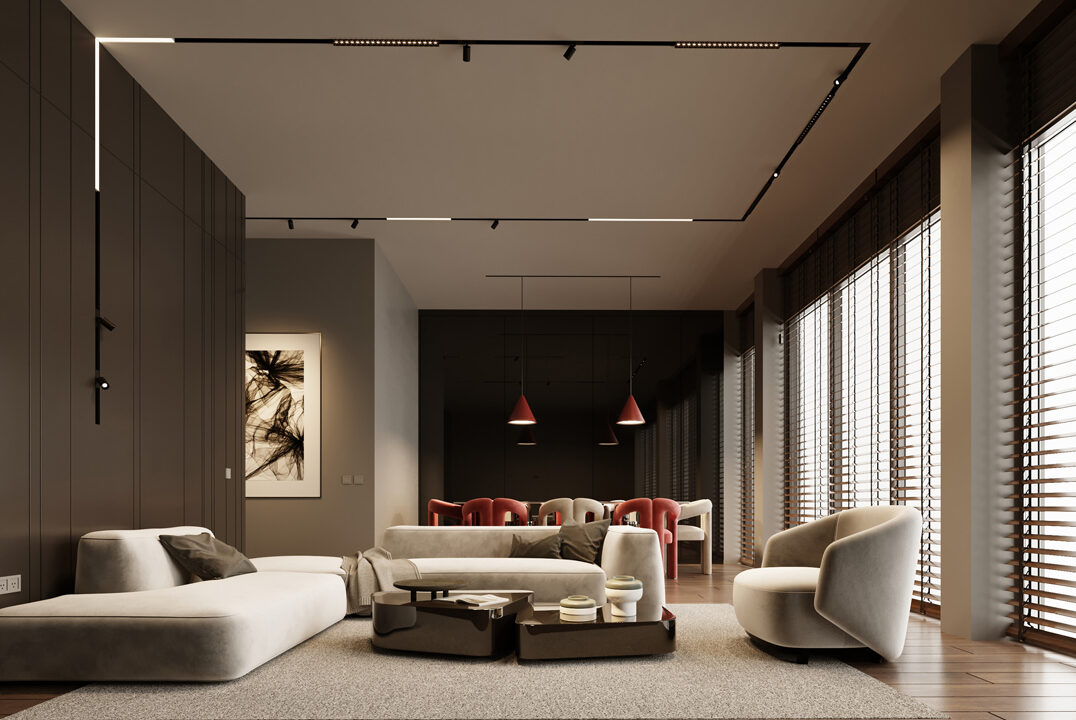

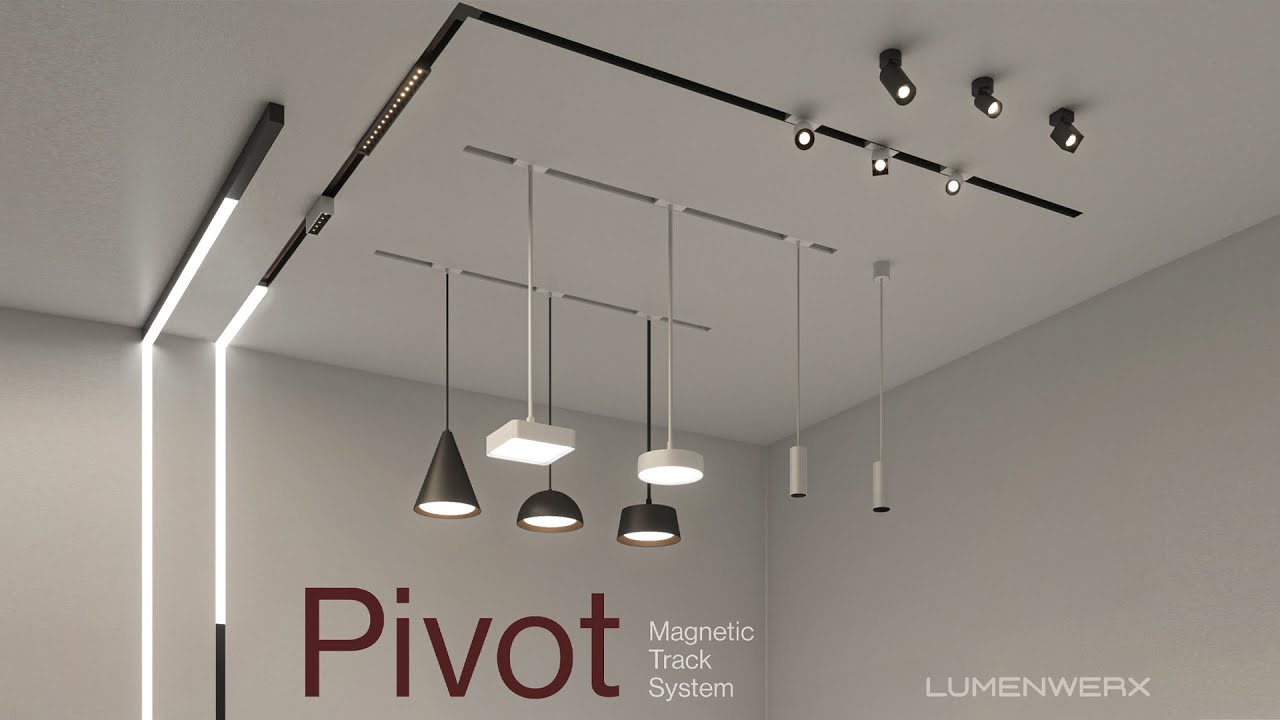

Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.
Pivot is an architectural linear magnetic track lighting system for pendant, recessed, and surface mounting. Modular and expandable, it is composed of 17+ modules to mix and match, including linear, track head, and cylinder fixtures. Offered as a Direct or Direct/Indirect system, Pivot has the flexibility to answer a wide variety of lighting applications, from general to accent to wall wash, with the adaptability to change it up with a simple click of a magnet.
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075″ thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to shielding area ratio.
The Isotropic Radiant Optic™ (IRO™) is a spherical lens designed with a spike-textured surface through which light rays are diffused outward and equally in all directions.
MINIATURE REFLECTOR OPTICS (MRO) locates individual, precisely molded TIR elements over each LED emitter, and further shield the source with precise parabolic reflectors. The controlled beam is remarkably comfortable – especially in a small LED luminaire. MRO is available in a specular black or gloss white finish and creates a distinctive visual texture.
Different TIR elements offer a choice of beam spreads: narrow (18° with SC of 0.3), medium (35° with SC of 0.6), and wide (55° with SC of 0.9). These concentrated distributions can provide effective task illumination in a variety of applications. Each MRO module is 6″ long with five optical chambers.
The Sharp-Edged Cut-Off Beam creates dramatic impact, limiting the spread of light outside of the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 15º spot (SPT), 30º flood (FLD), or 45º wide flood (WFL)
The Soft-Edged Feathered Beam blends the light into darker areas for a gentle brightness transition. Each LED emitter directs light through a single, custom molded circular optic using total internal reflection (TIR) to shape the light. A 0.5″ reflective square louver provides a cut off with a UGR of 10. Three different TIR elements create a choice of beam spread: 25º narrow flood (NFL), 35º flood (FLD), or 55º wide flood (WFL).
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
Wall Wash Refractive Optic (WRO) – Clusters Linear Wall Wash optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates source image. The result is excellent uniformity up and down the wall, as well as between luminaires.

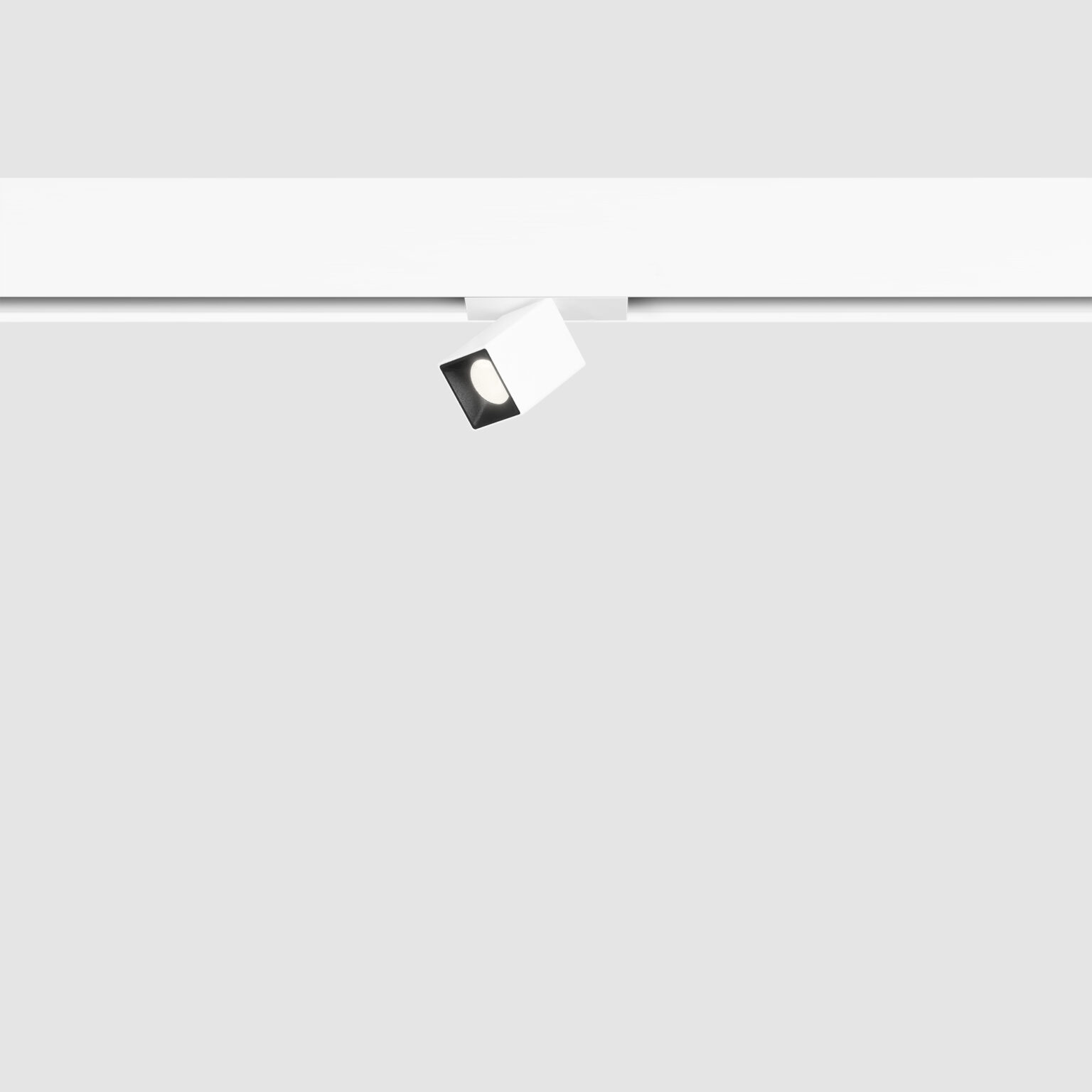

With its over 17 combinable Pivot Modules, ranging from track heads to cylinders to linear downlights, blanks modules, and wall wash, the Pivot System is able to add value, visual interest, not to mention quick adjustability to any space. And since modular installation is tool-free, changes are a snap, and each Module locks in place with the click of a magnet.









Architectural 48V linear track system for recessed, surface, or pendant mounting, with infinite runs up to 8 feet per segment and flexible horizontal and vertical branching. Offered in multiple circuit and control variations, with secure rare-earth magnetic attachment exceeding safety standards.

Fixed connectors for creating shapes and patterns, with curved corners for pendant mounting and multiple 90° or multi-way options for recessed and surface installations. Curved corners available with a 7” minimum radius. Consult spec sheet for details.

The Linx are for Pivot pendant mounting and have a 60- to 180-degree movement range with 2-way, 3-way, and 4-way horizontal options, and a 2-way connector on the vertical.
Pivot is equipped with our V-Locks, micro mechanisms that are easy to use and ensure that each module is secured to the Track. For Pivot’s linear modules the V-Lock is activated with a simple push of a button located on the surface of the end cap adapter. To release, pull down the tab of the locking mechanism. For Pivot’s point source modules, the V-Lock is automatic when the module is pushed in place. To release, simply push the two side buttons to remove from the track.


































Discover other products in the Pivot collection that complement and enhance your space.
