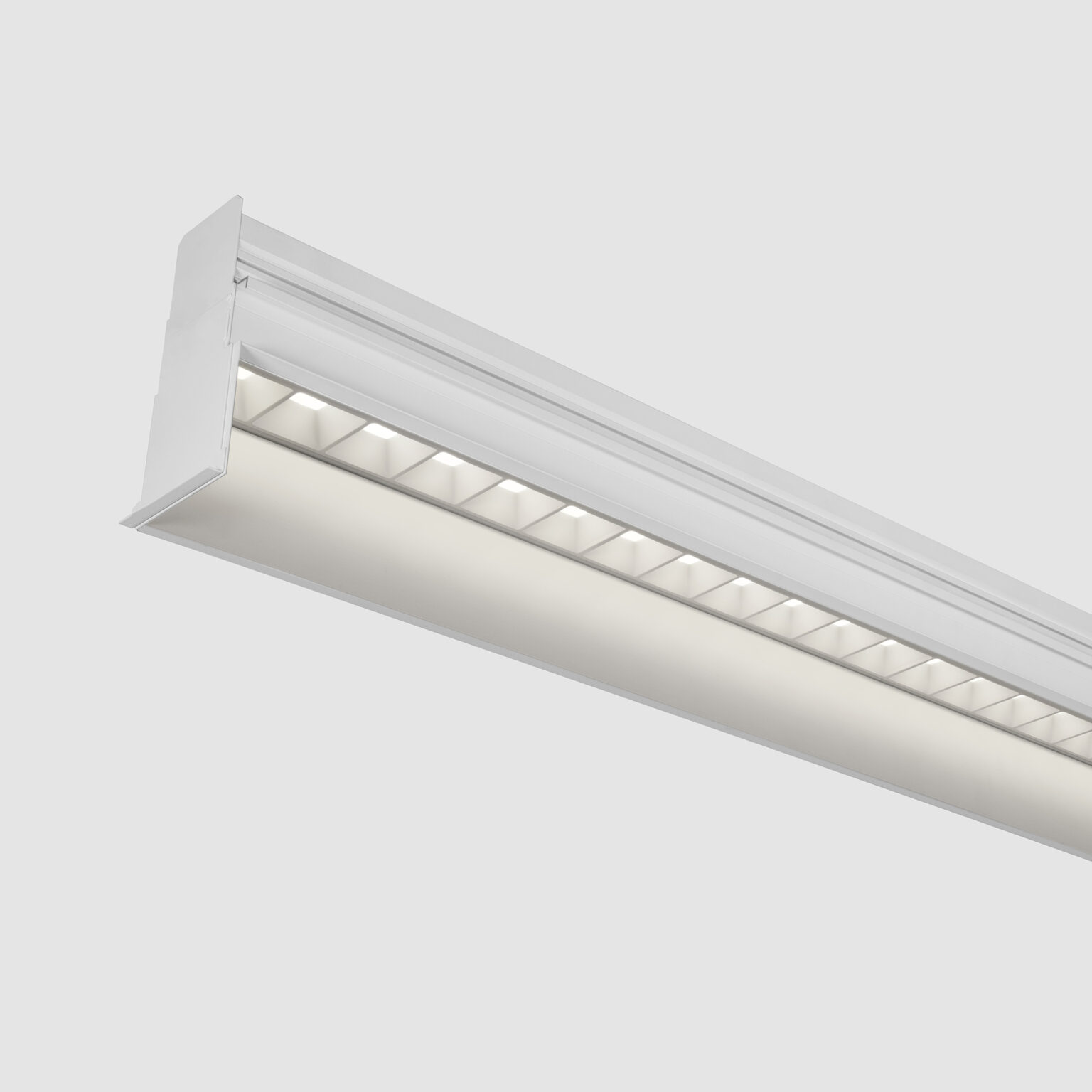

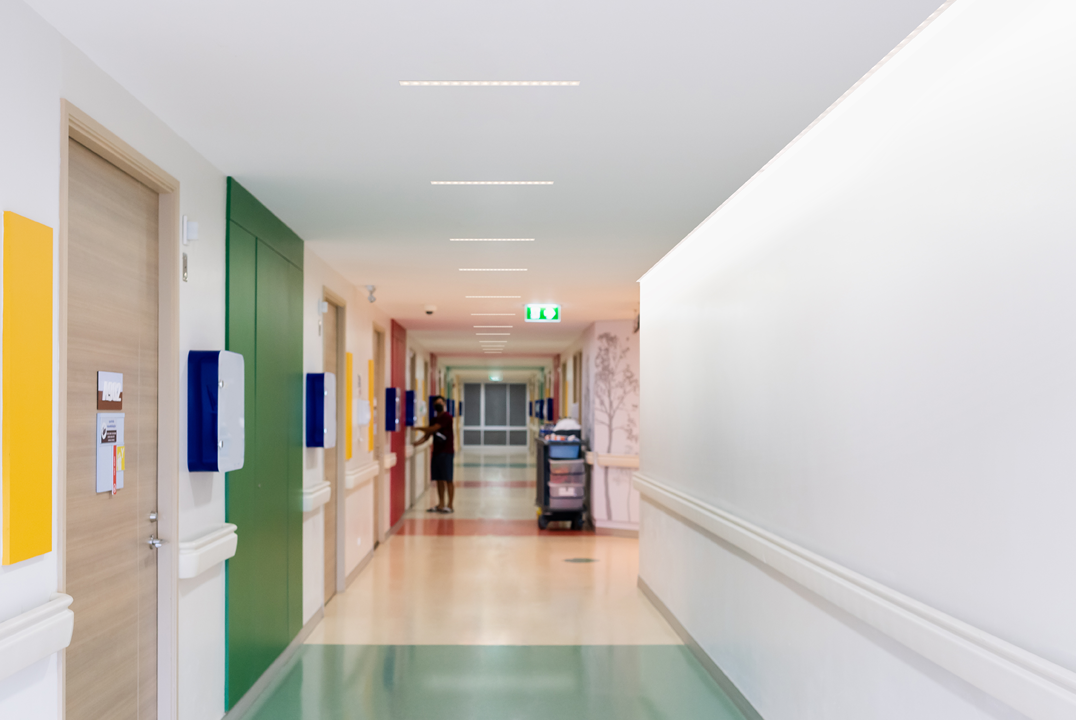

Ubik Seal Perimeter offers subtle, low-glare illumination in leveled, shallow, and deep recessed arrangements with parabolic louvers. A gasketed clear polycarbonate lens is mounted on top of the louvers for extra protection. Ubik Seal Perimeter can brighten and broaden a space by illuminating perimeter walls. Use it in corridors,nurses’ stations, offices, hospitality locations, and more.

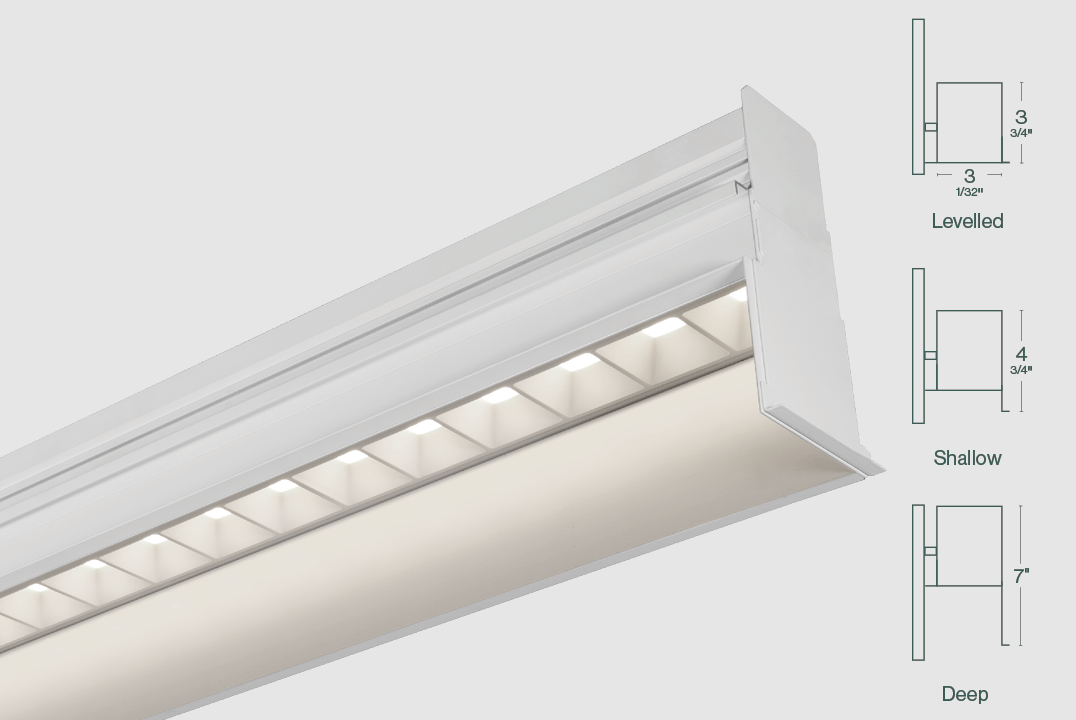

- Three mounting positions
- Low-glare perimeter solution
- Up to 1200 lm/ft

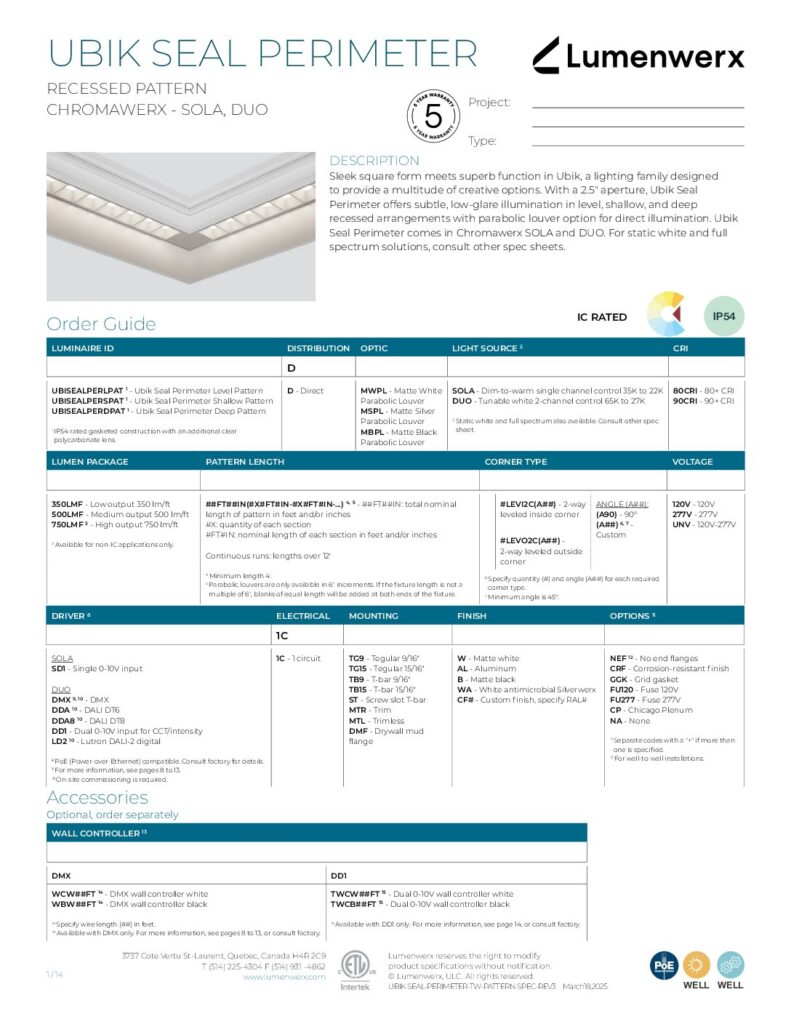

Specifications
Product TypesPerimeter, Healthcare, IP-rated OpticsMBPL, MSPL, MWPL CCT/Lights & ColorStatic White, Duo (Tunable White), Full Spectrum, Sola (Dim to Warm) MountingsRecessed, Perimeter Distribution TypeDirect
Light Source
Static White
Custom array of mid-flux LEDs are cartridge-mounted with quick connect wiring to facilitate service and thermal management. Available in 2700K, 3000K, 3500K, 4000K, and 5000K with a minimum 80+ CRI and an option for 90+ CRI with elevated R9 value. Color consistency maintained to within 3 SDCM. LEDs operate at reduced drive current to optimize efficacy and lumen maintenance.
Duo (Tunable White)
ChromaWerx Duo’s two-channel control balances interior light with natural light as it changes hue over the course of the day, optimizing comfort from day to night.
Full Spectrum
Full-Spectrum solutions from Lumenwerx provide true color rendition with the quality of daylight across the entire spectrum of color. You can imagine light output similar to that of the midday sun.
Sola (Dim to Warm)
ChromaWerx Sola provides one-channel control to keep spaces warm and welcoming. Mirroring the effect of traditional incandescent, Sola dims from 3500K to 2200K letting you transition any space from corporate to cozy.
Optics
MBPL
Matte Black Parabolic Louver
MSPL
Matte Silver Parabolic Louver
MWPL
Matte White Parabolic Louver
UP TO
1200 lm/ft
Low-glare
perimeter solution
Three mounting
positions
